Hazard Switch

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

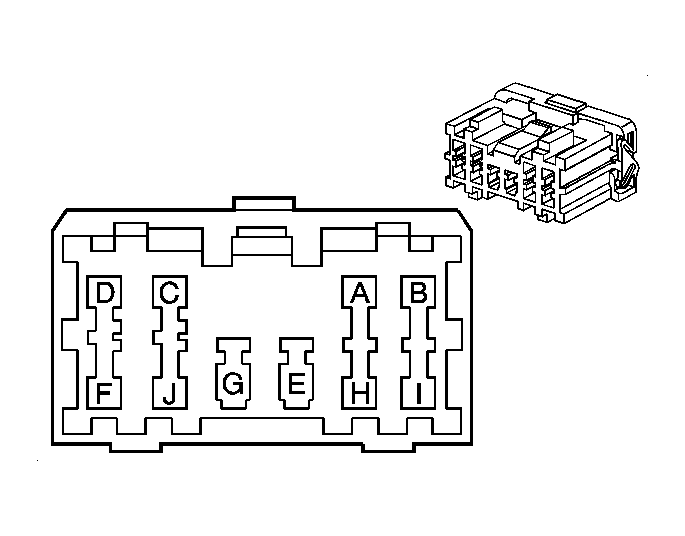

Fig 1: Hazard Switch Connector End Views

Courtesy of GENERAL MOTORS CORP.

Hazard Switch Connector Parts Information

Connector Part Information

OEM: 6098-0249
Service: See Catalog
Description: 10-Way F (GY)

Hazard Switch Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
A	L-GN	665	Turn/Hazard Relay Control
B	YE	243	Accessory Voltage
C	OG	1040	Battery Positive Voltage
D	PU	16	Turn Signal Flasher Signal
E	L-BU	14	Left Turn Signal Lamps Supply Voltage
F	D-BU	15	Right Turn Signal Lamps Supply Voltage
G	-	-	Not Used
H	GY	8	Instrument Panel Lamp Supply Voltage
I	BK/WH	151	Ground
J	-	-	Not Used
