Turn Signal Flasher Relay

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

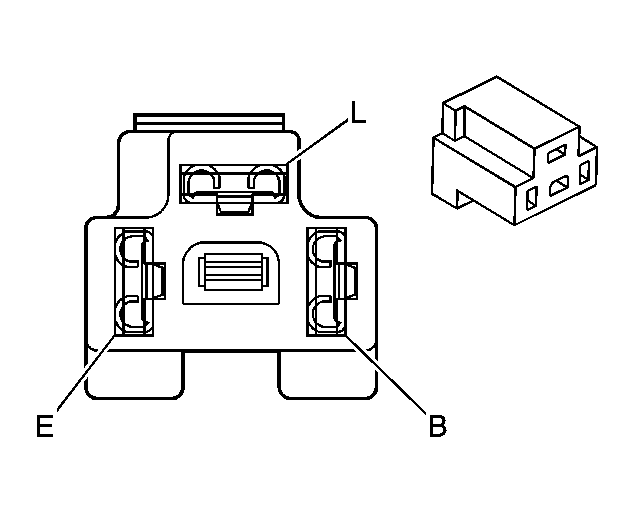

Fig 1: Turn Signal Flasher Relay Connector End Views

Courtesy of GENERAL MOTORS CORP.

Turn Signal Flasher Relay Connector Parts Information

Connector Part Information

OEM: PH255-03020
Service: See Catalog
Description: 3-Way F BK

Turn Signal Flasher Relay Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
B	L-GN	665	Turn/Hazard Relay Control
L	PU	16	Turn Signal Flasher Signal
E	BK/WH	151	Ground
