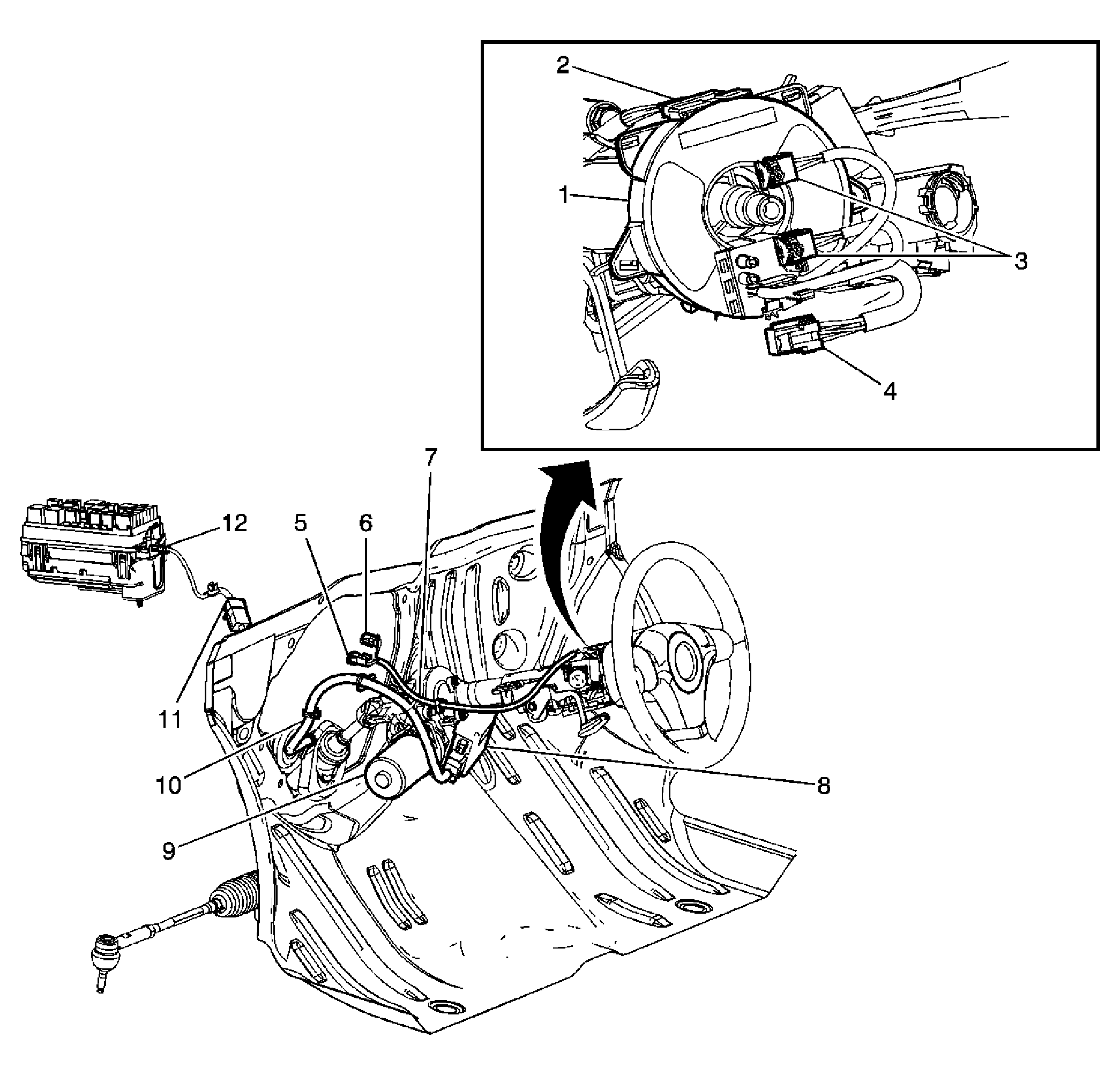

Power Steering Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module Coil |
| 2 | C?? Inline to Coil ?? |
| 3 | Inflatable Restraint Steering Wheel Module Coil C1/C2 |
| 4 | Inflatable Restraint Steering Wheel Module Coil C5 |
| 5 | Inflatable Restraint Steering Wheel Module Coil C3 |
| 6 | Inflatable Restraint Steering Wheel Module Coil C4 |
| 7 | Inflatable Restraint Steering Wheel Module Coil Harness |
| 8 | Power Steering Control Module (PSCM) |
| 9 | PSCM Motor |
| 10 | Electronic Power Steering (EPS) Harness |
| 11 | EPS Inline Fuse Holder |
| 12 | Fuse Block-Underhood B+ Post |
