Cooling System Component Views
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Ambient Air Temperature Sensor (DH3) |
| 2 | Cooling Fan |
| 3 | Daytime Running Lamps (DRL) Resistor |
| 4 | G101 |
| 5 | SP101 |

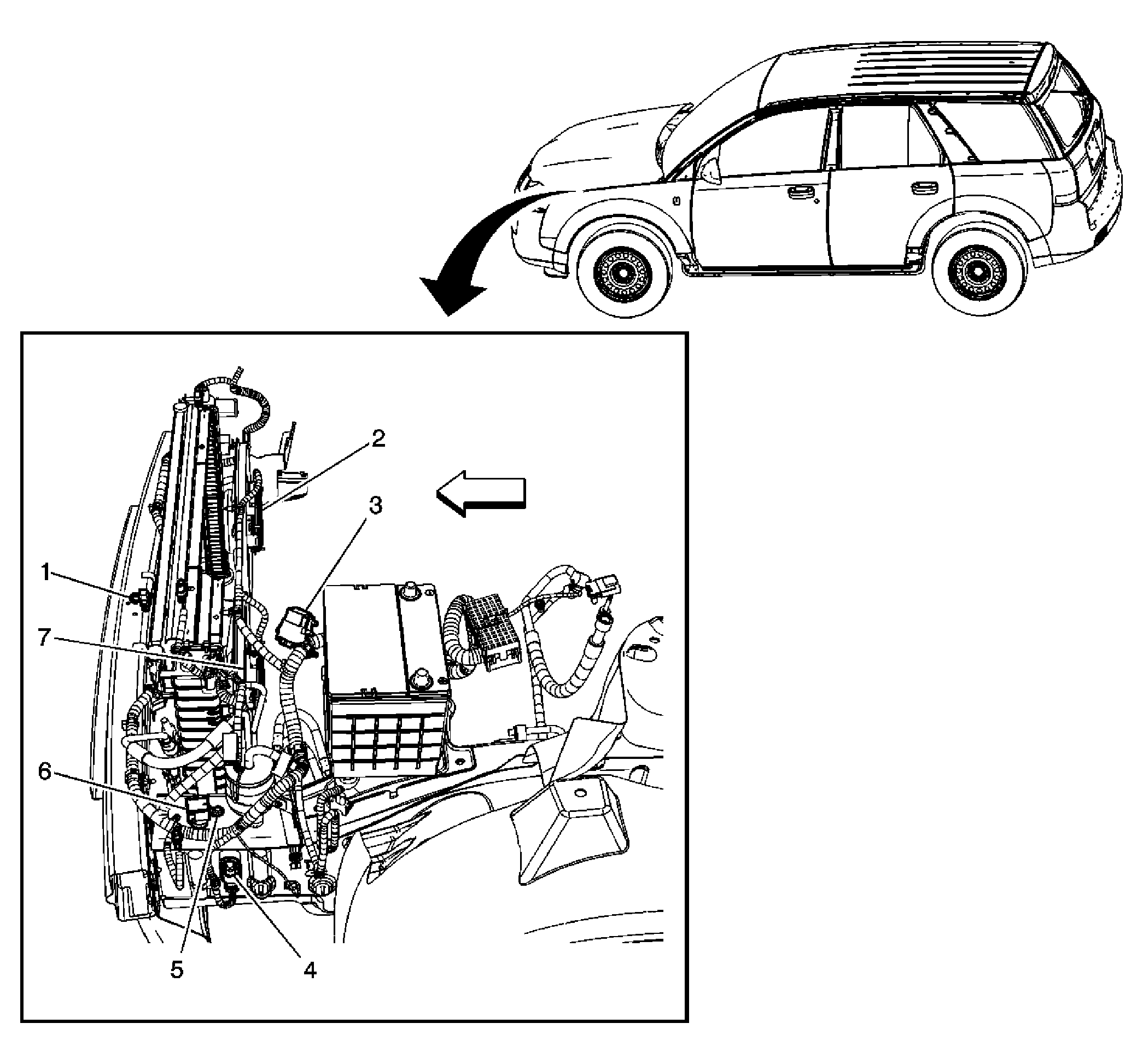

| Callout | Component Name |
|---|---|
| 1 | Ambient Air Temperature Sensor (DH3) |
| 2 | Cooling Fan - Right |
| 3 | Cooling Fan Relay 3 |
| 4 | Daytime Running Lamps (DRL) Resistor |
| 5 | G101 |
| 6 | SP101 |
| 7 | Cooling Fan - Left |

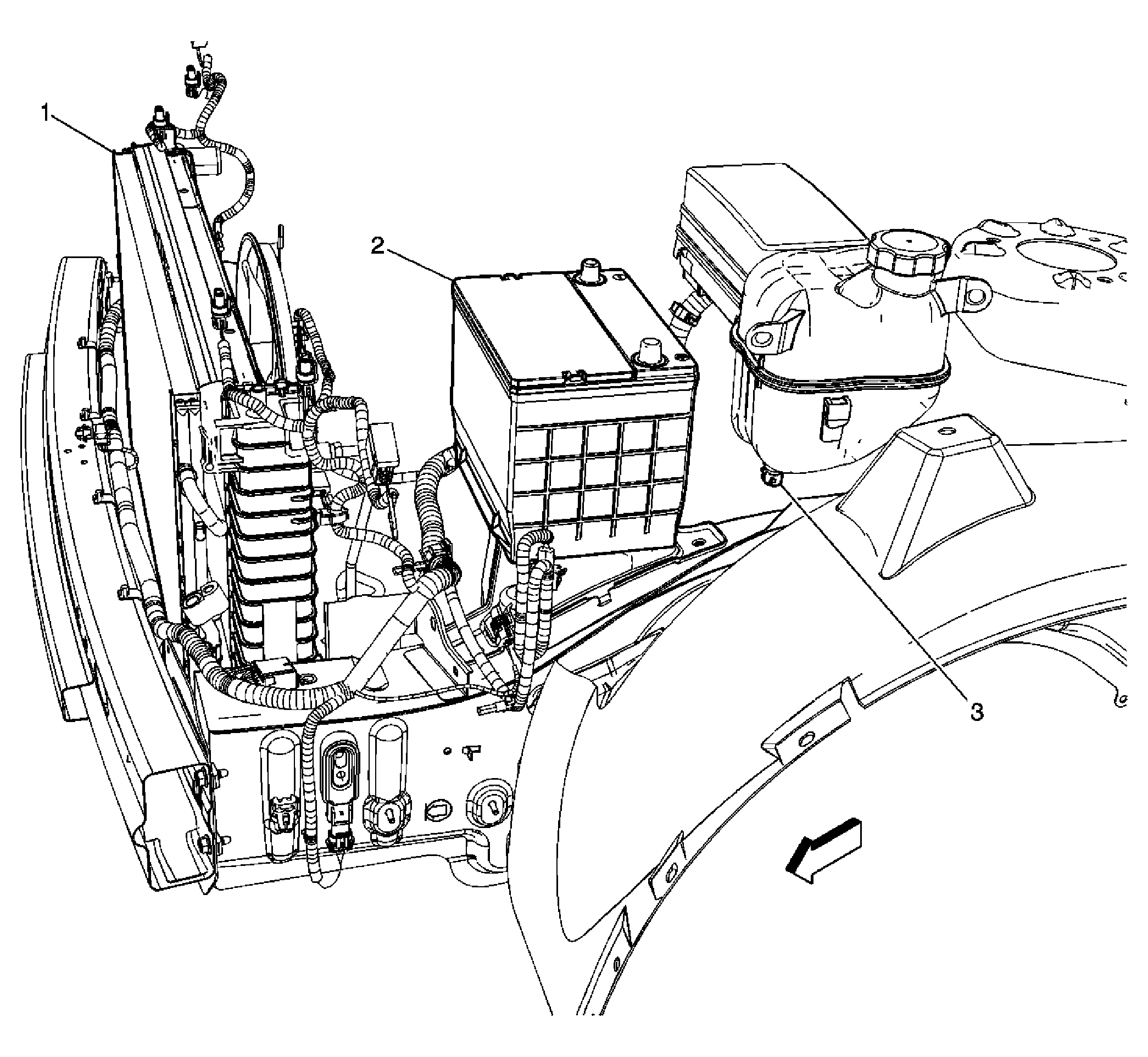

| Callout | Component Name |
|---|---|
| 1 | Radiator |
| 2 | Battery |
| 3 | Coolant Level Switch |
