Automatic Level Control Component Views
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

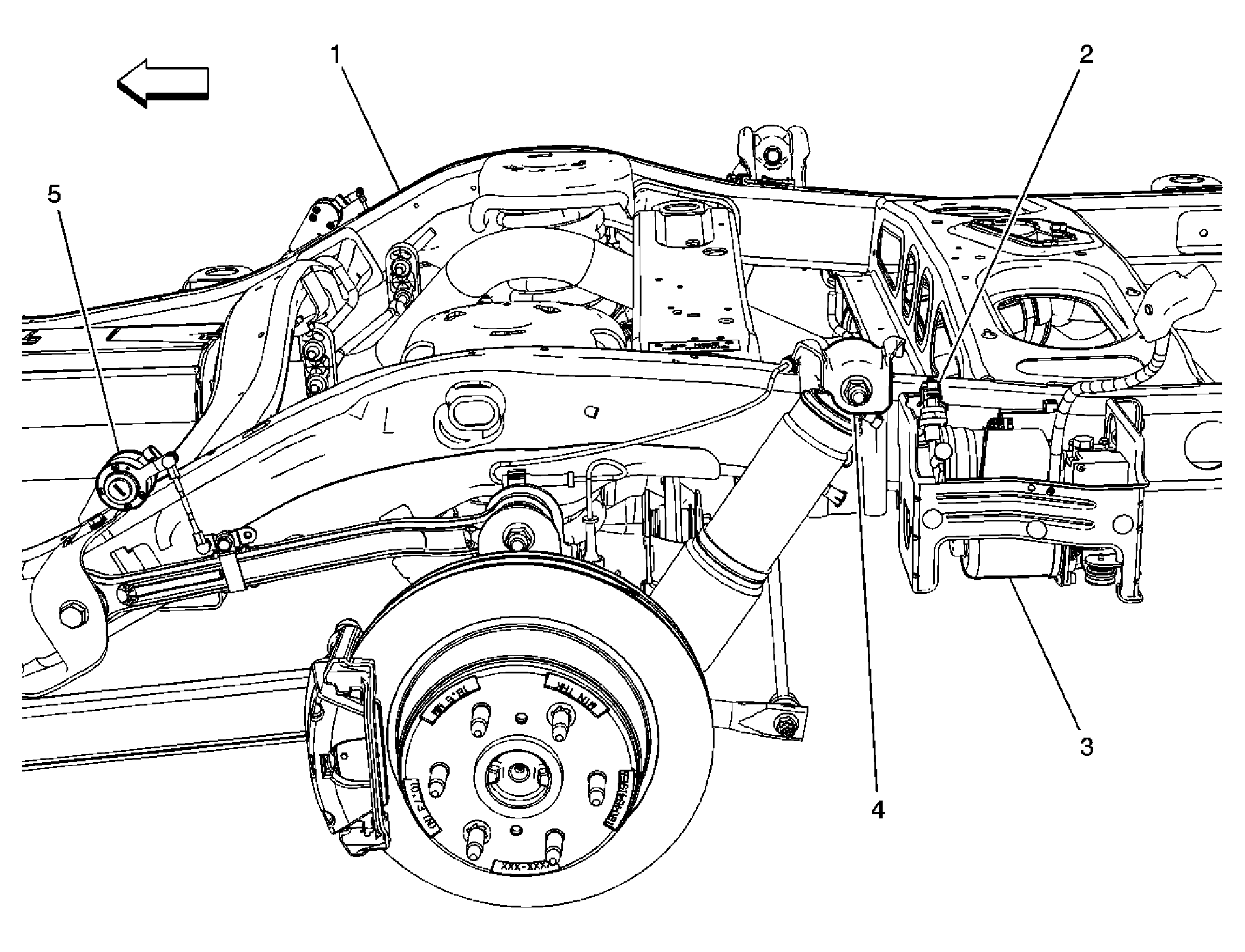

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Chassis |
| 2 |
Automatic Level Control Pressure Sensor (Z55) |
| 3 |
Automatic Level Control (ALC) Compressor Assembly (Z55) |
| 4 |
Suspension Damper Solenoid - LR (Z55) |
| 5 |
Suspension Position Sensor - LR (Z55) |

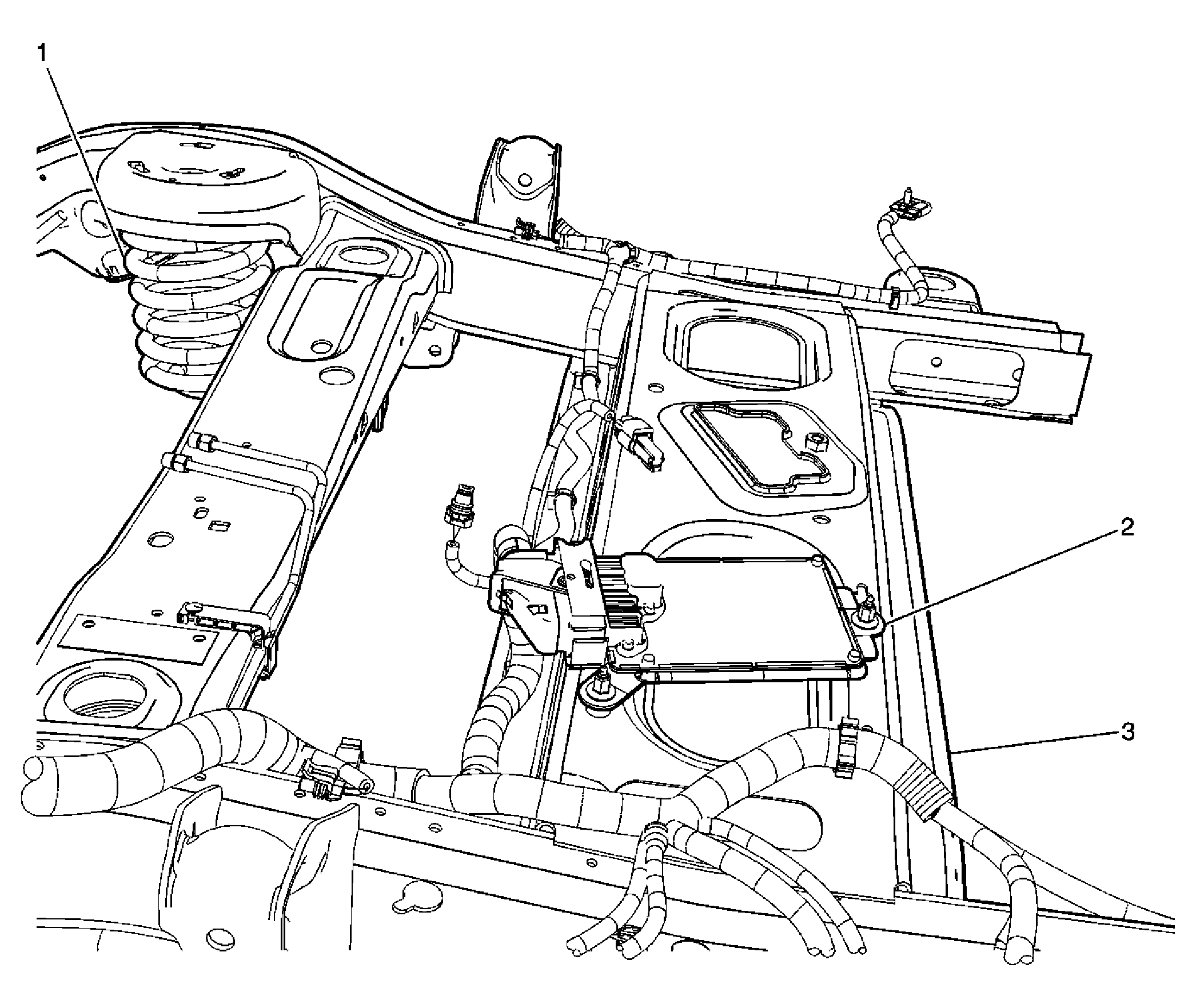

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
RR Coil Spring |
| 2 |
Electrical Suspension Control (ESC) Module (Z55) |
| 3 |
Chassis |
