Cooling System Component Views
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

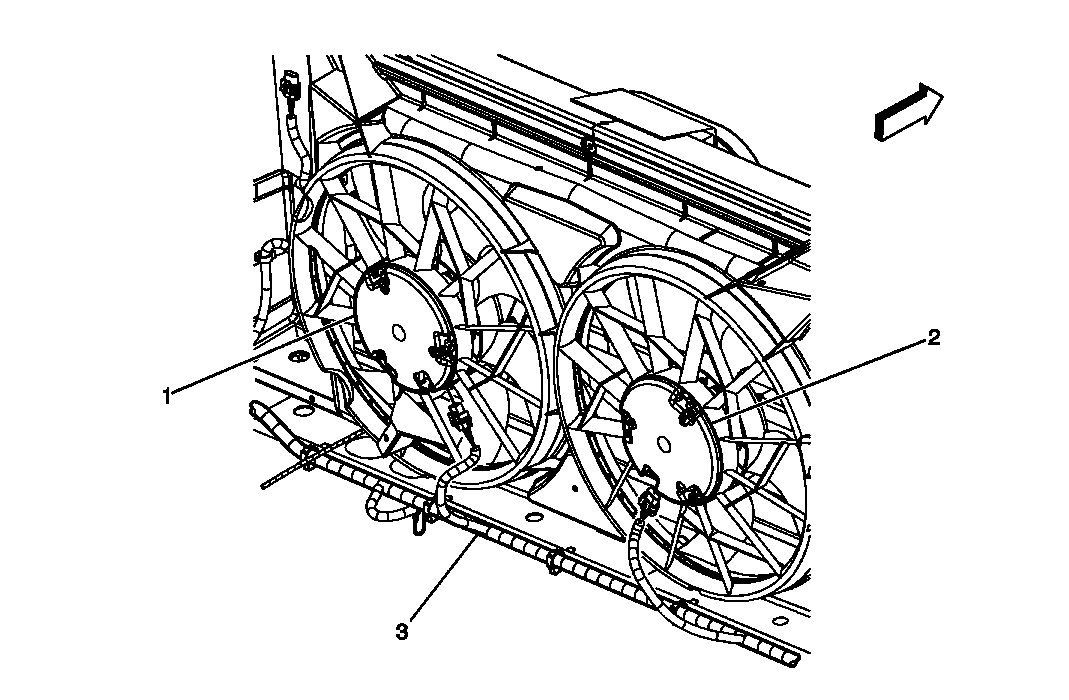

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Cooling Fan - Left |
| 2 |
Cooling Fan - Right |
| 3 |
Forward Lamp Harness |

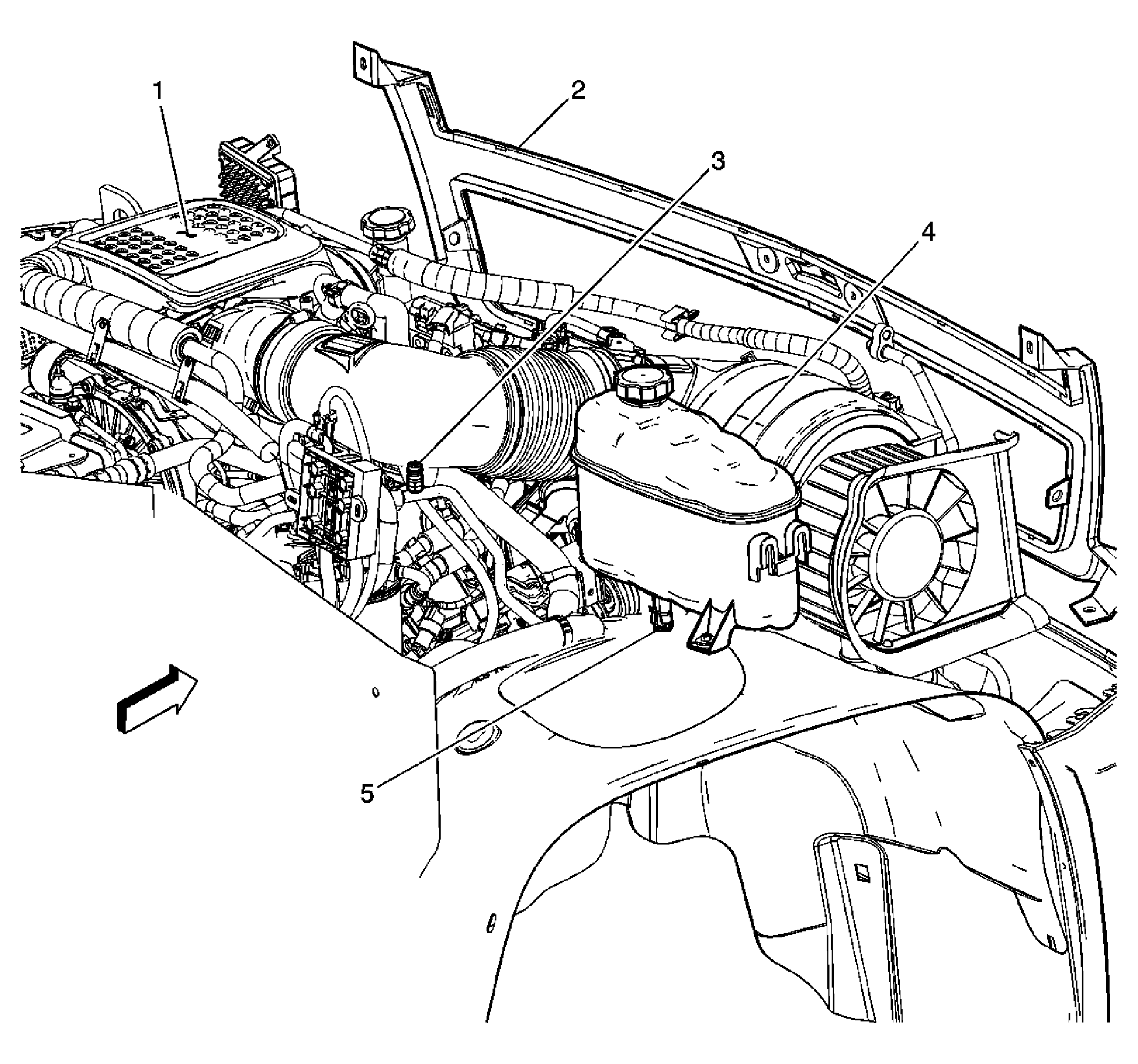

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Engine |
| 2 |
Front Fascia |
| 3 |
A/C Low Pressure Switch (C67/CJ2) |
| 4 |
Surge Tank |
| 5 |
Engine Coolant Level Switch |
