Shock, Shock Component, and/or Spring Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

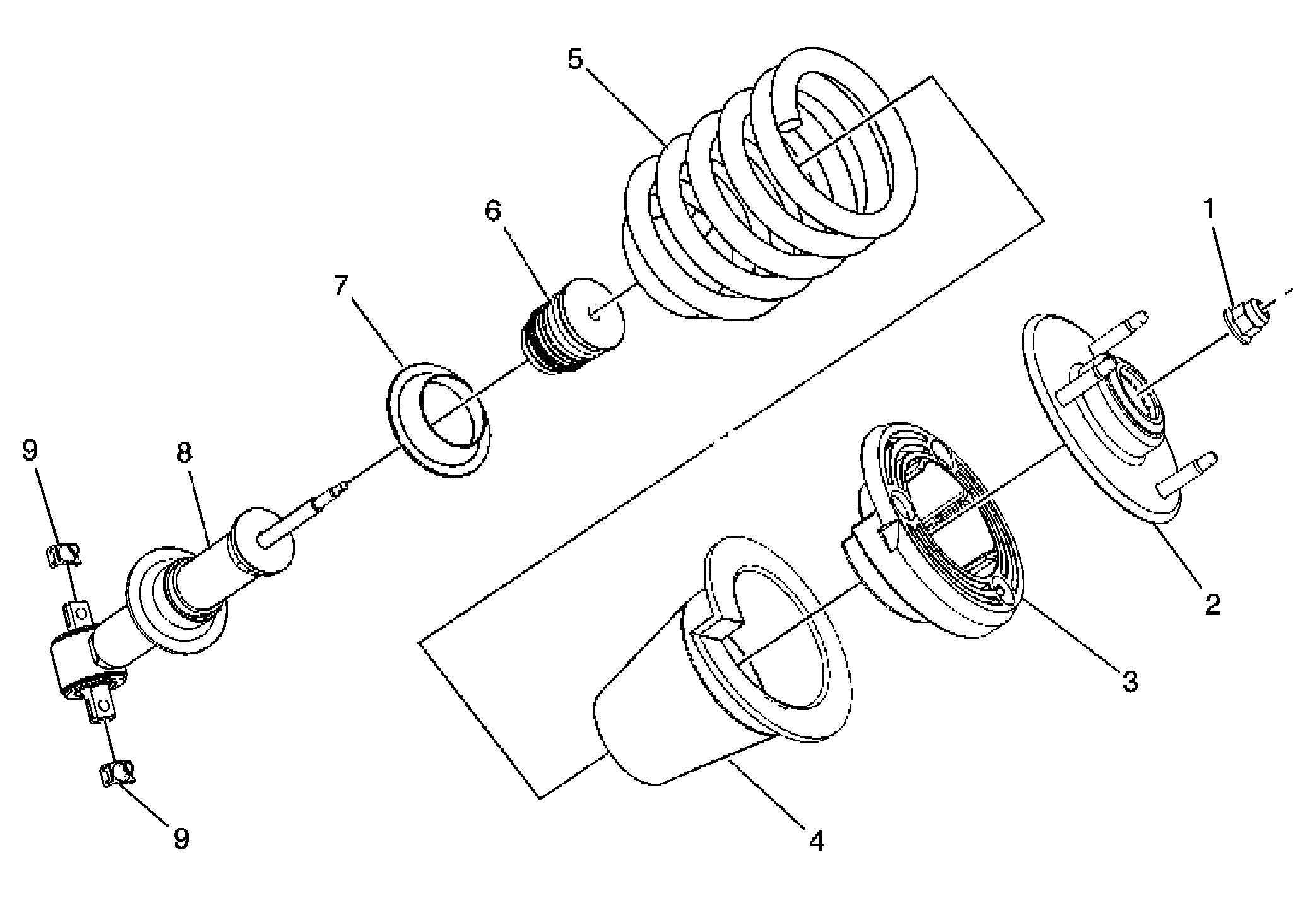

Fig 1: View Of Shock, Shock Component, And/Or Spring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the shock module. Refer to Shock Module Replacement .
1	Front Shock Absorber Nut NOTE: Do not allow the absorber rod to rotate during disassembly/reassembly. Use hand tools to keep the absorber rod from rotating. If air tools are used, and the rod is allowed to rotate, damage to the absorber may occur. NOTE: Refer to Fastener Notice . Procedure Using the J 45400 , collapse the front suspension spring. See Special Tools . Use a wrench to the shock absorber shaft prevent from rotating. Using the Snap On® tools P/N A139 and P/N LIL20470, or equivalent to remove the nut. Tighten: 50 N.m (37 lb ft)
2	Front Suspension Mount Tip: For proper alignment during assembly, make sure one of the mount studs is aligned with the centerline of the shock absorber dog bone.
3	Front Suspension Upper Seat
4	Front Suspension Bumper
5	Front Suspension Insulator
6	Front Suspension Spring
7	Front Spring Lower Insulator
8	Front Shock Absorber
9	Clip Nut (Qty: 2) Tip: The use of air tools on the clip nuts during installation is not recommended.
