Window Switch - Left Rear

Door Component Views

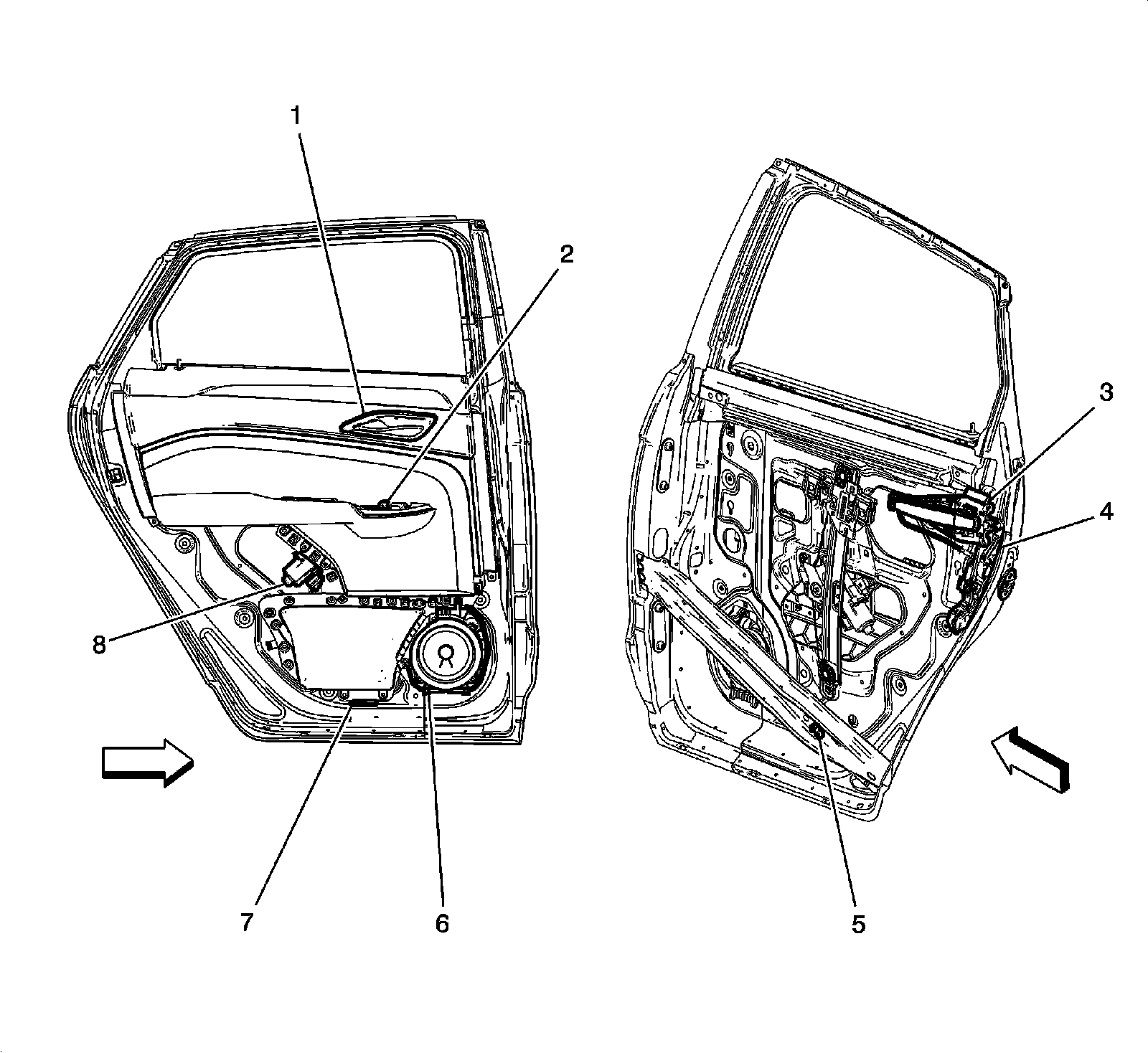

Left Rear Door Components




1 - E1LR Accent Lamp - Left Rear Door (TSQ)
2 - S79LR Window Switch - Left Rear
3 - B27LR Door Handle Switch - Left Rear Exterior (ATH)
4 - A23LR Door Latch Assembly - Left Rear
5 - B63LR Side Impact Sensor - Left Rear
6 - P19K Speaker - Left Rear
7 - E8LR Door Courtesy Lamp - Left Rear
8 - M74LR Window Motor - Left Rear
