Door Control Module Schematics





Door Control Module Schematics

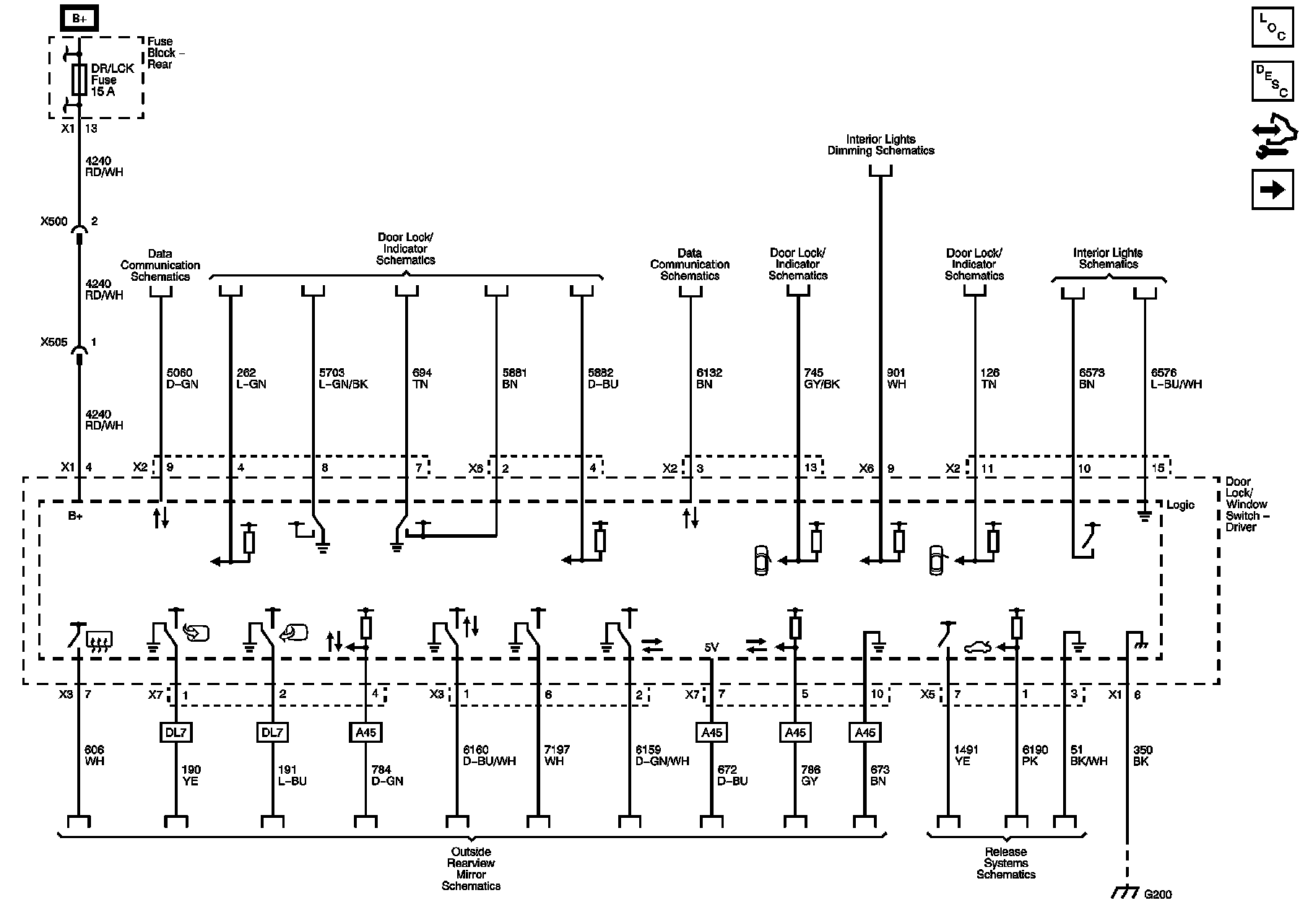

Driver Door Module (1 of 2)






Driver Door Module (2 of 2)

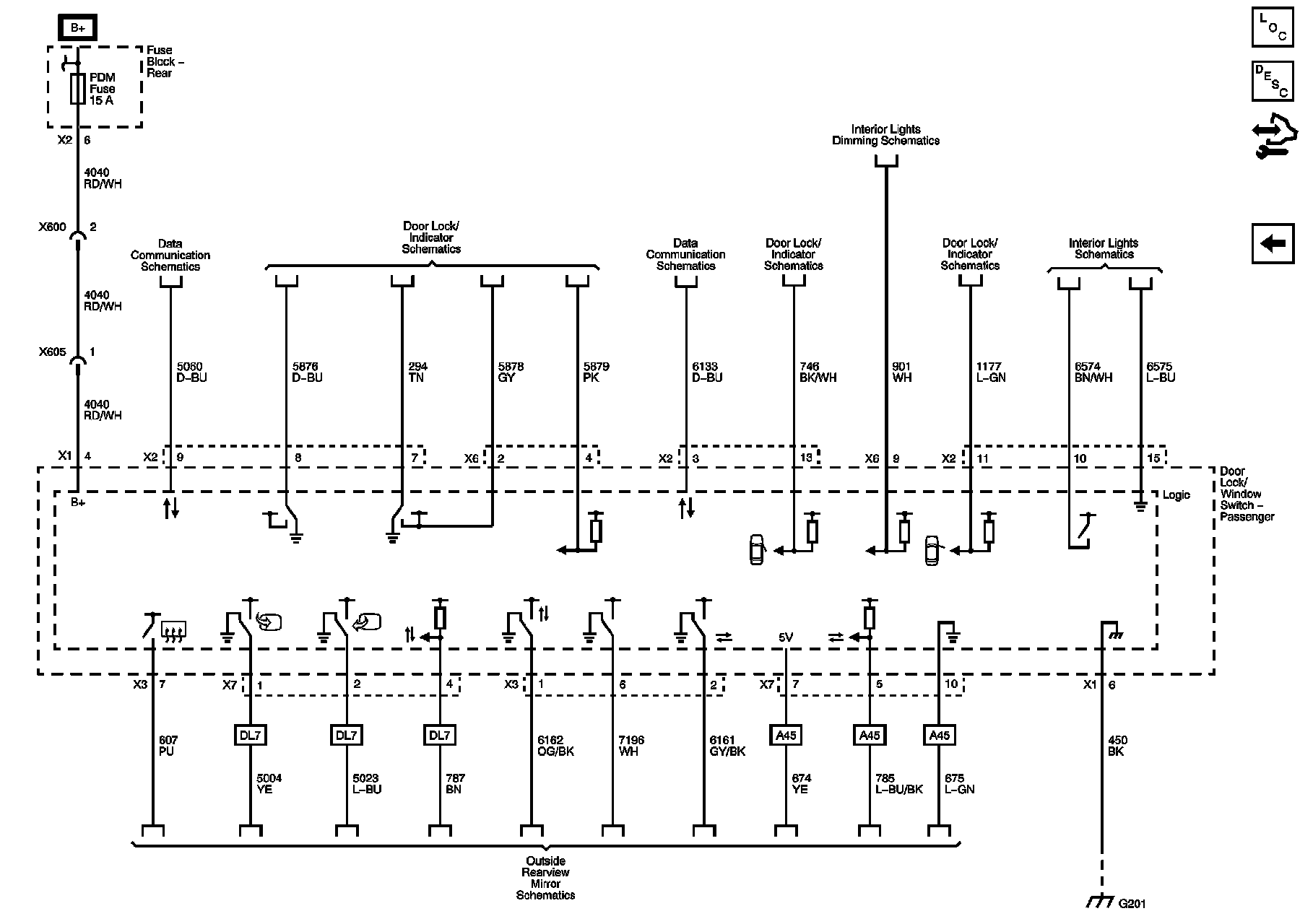

Front Passenger Door Module
