Air Cleaner Assembly Replacement

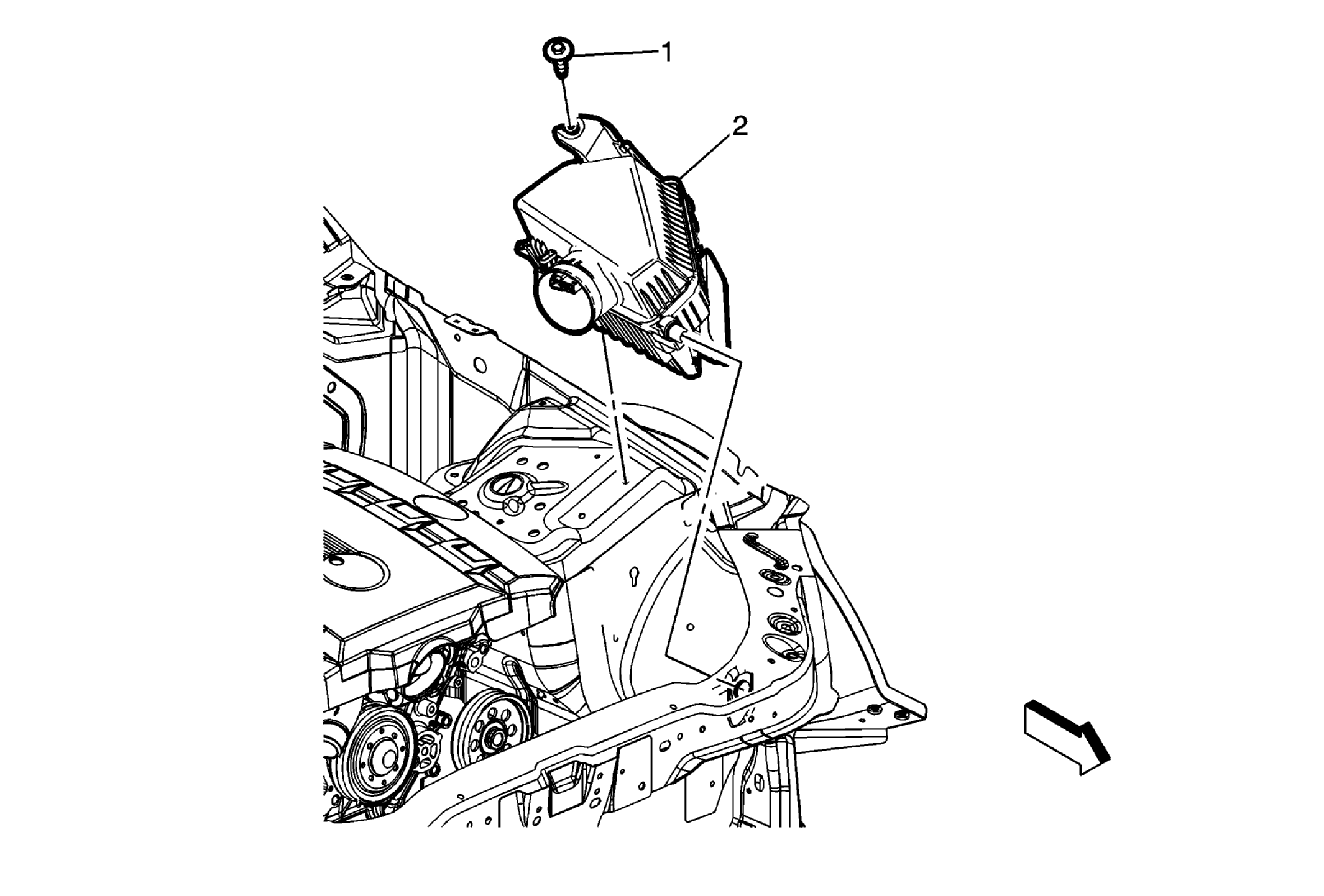

Courtesy of GENERAL MOTORS COMPANY Air Cleaner Assembly Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement
.
- Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
- Disconnect the MAF/IAT sensor electrical connector.
|
| 1 |
Air Cleaner Assembly Fastener
Tighten
9 N.m (80 lb in) |
| 2 |
Air Cleaner Assembly Procedure
- Reposition the surge tank bypass hose as necessary.
- Disconnect the electrical connectors.
- Tilt the assembly rear upward while disengaging the air cleaner isolator.
|
