Removal Procedure

WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

  1. Remove the fuel tank pump module. Refer to Fuel Tank Fuel Pump Module Replacement - Right Side .

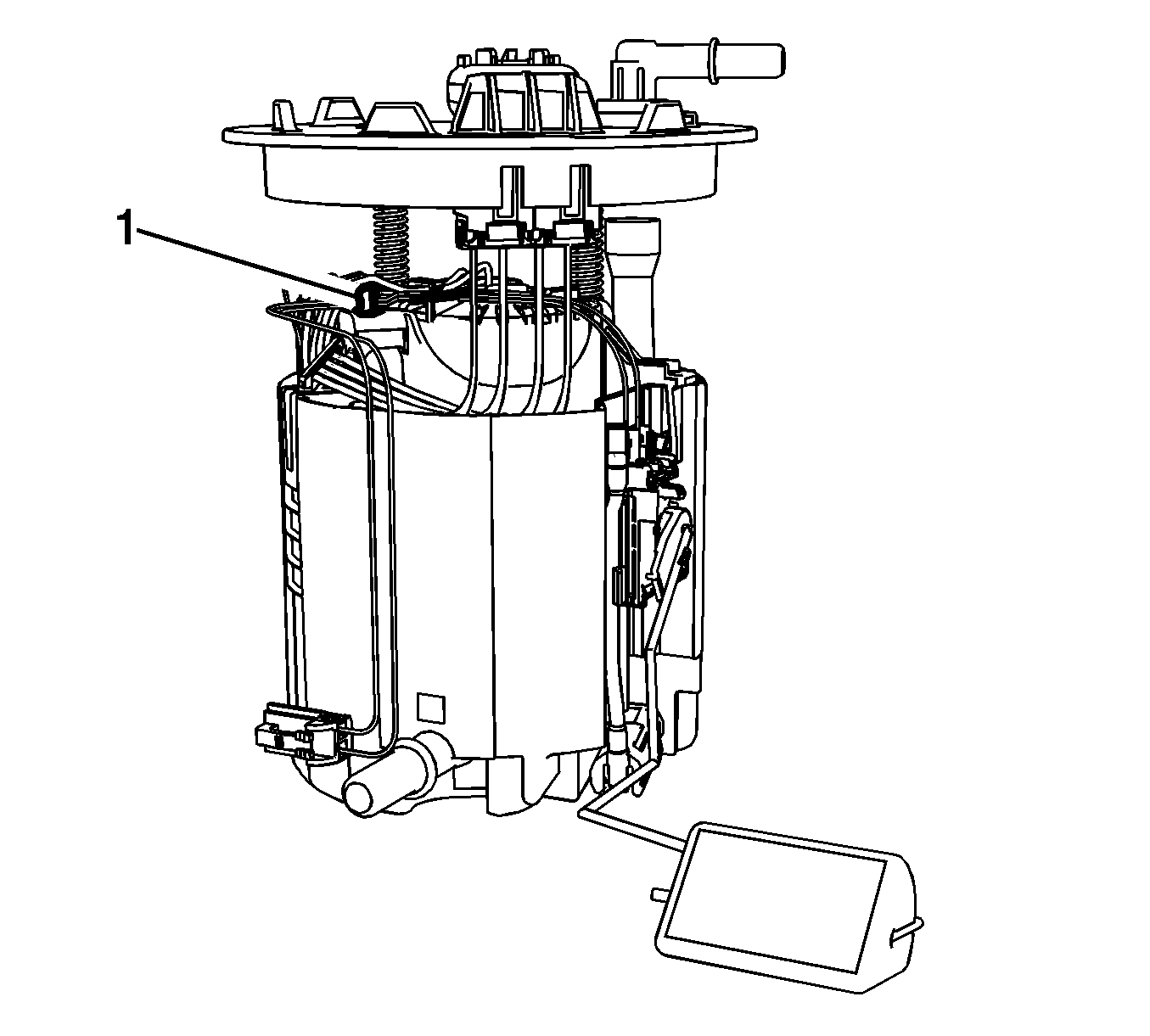

    2. Fig 1: Pump Support Wire Retention
    GM2676269Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not pull on the connector wires.

  2. Dislodge the wires (1) from the pump support wire retention feature.
    3. Fig 2: Identifying Fuel Level Sensor Locking Tab
    GM2029133Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not touch the resistor circuit board.

  3. Disengage the locking tab (1) on the fuel level sensor by pushing inward.
    4. Fig 3: Identifying Fuel Level Sensor & Stationary Lock
    GM2029159Courtesy of GENERAL MOTORS COMPANY
  4. Slide the fuel level sensor (1) upward to the stationary lock (2).
    5. Fig 4: Identifying Fuel Level Sensor
    GM2029178Courtesy of GENERAL MOTORS COMPANY
  5. Remove the fuel level sensor (1).
