Front of the Exhaust System Components

Front of the Exhaust System Components

Items
1:  B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1
2:  B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1
3:  B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2
4:  B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2

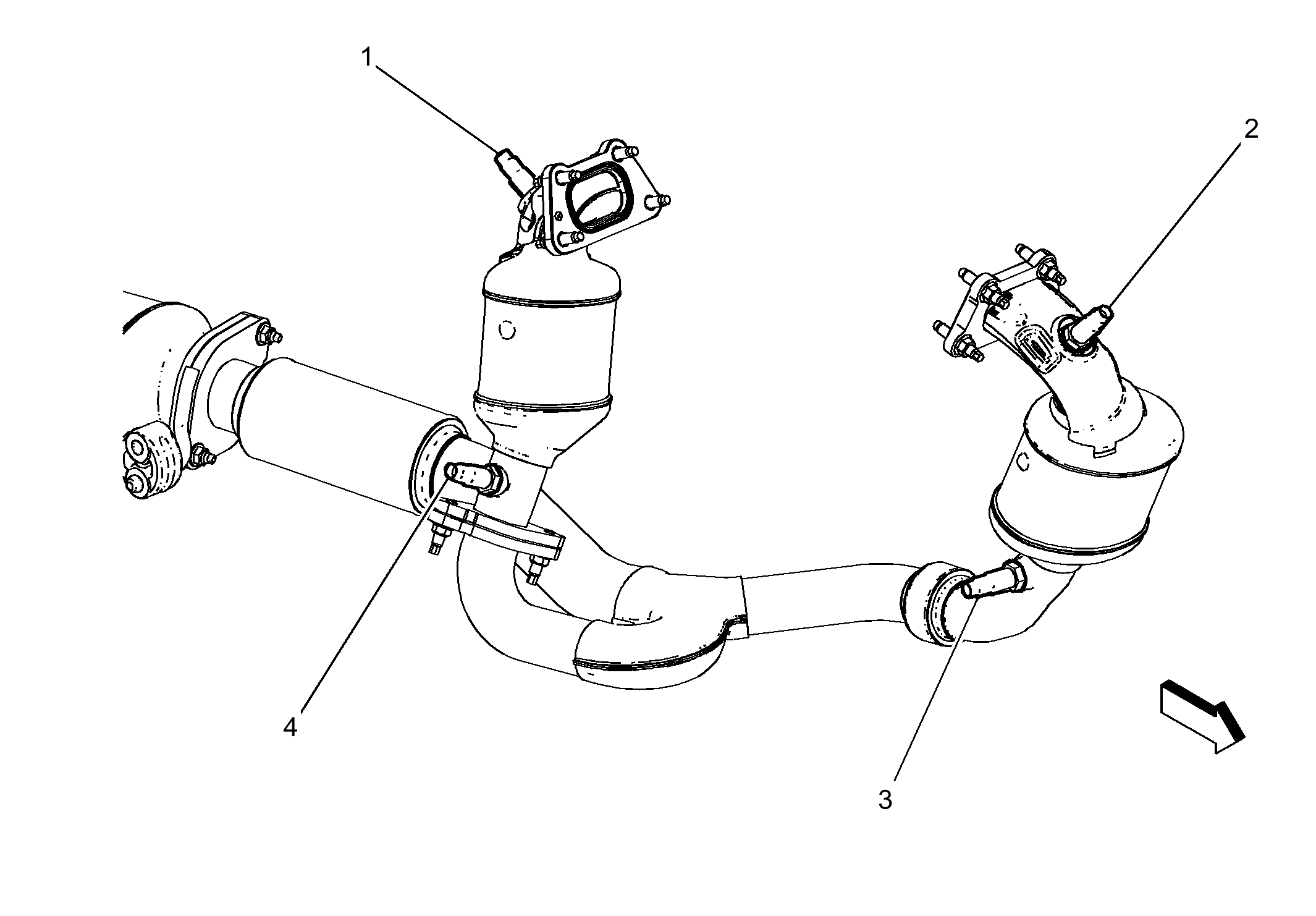

Fig 1: Identifying Front Of Exhaust System Components (LF1)
GM2296860Courtesy of GENERAL MOTORS COMPANY
