HVAC Components (CJ2)

Instrument Panel/Center Console Component Views

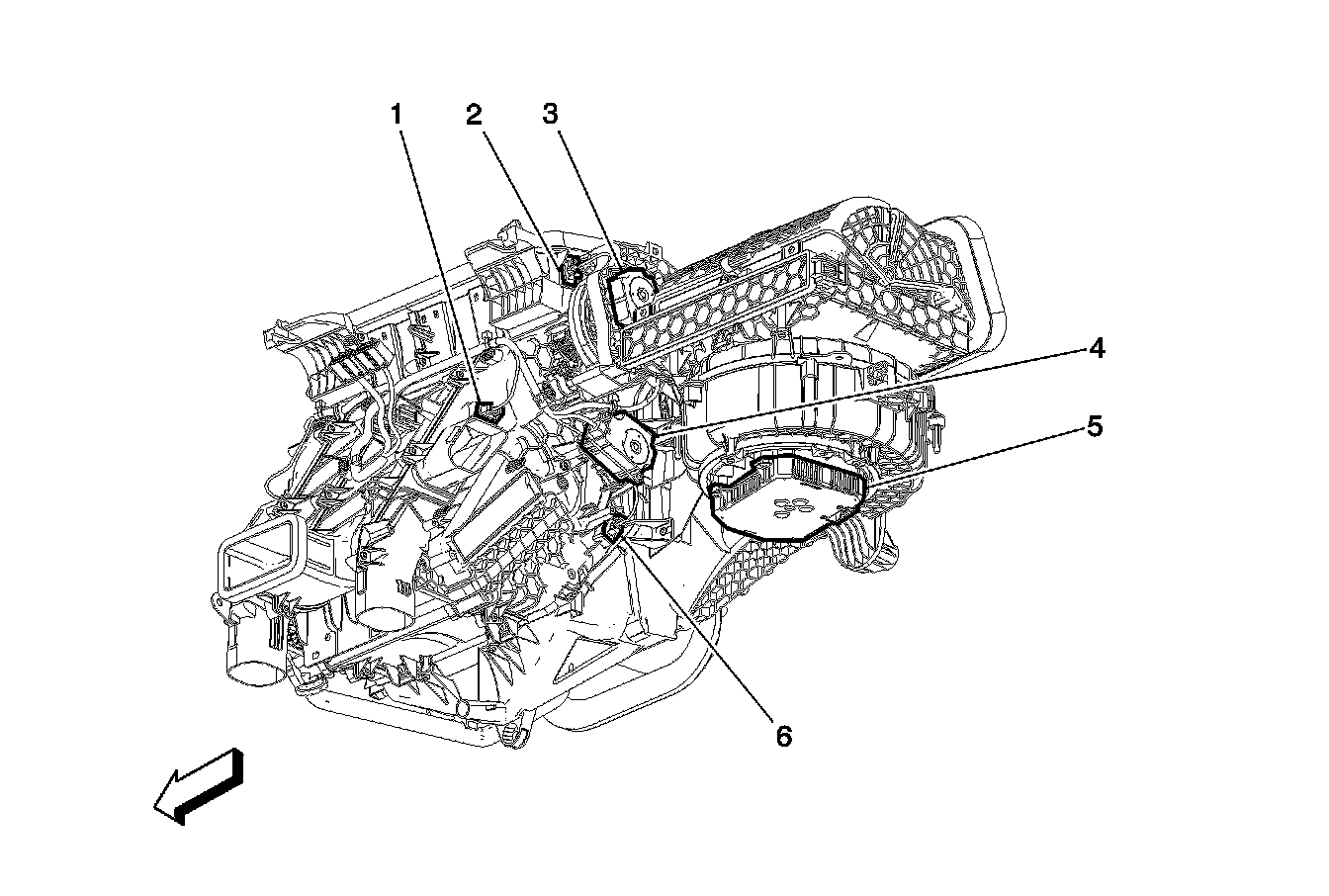

HVAC Components (CJ2)





1 - B7E Air Temperature Sensor Duct - Right Lower

2 - B7J Air Temperature Sensor Duct - Right Upper

3 - M37B Mode Door Actuator - Auxiliary

4 - M6R Mode Door Actuator - Right

5 - M8 Blower Motor

6 - B7C Air Temperature Sensor Duct - Lower Auxiliary
