Air Bag Control Module: Locations




Passenger Compartment/Roof Component Views

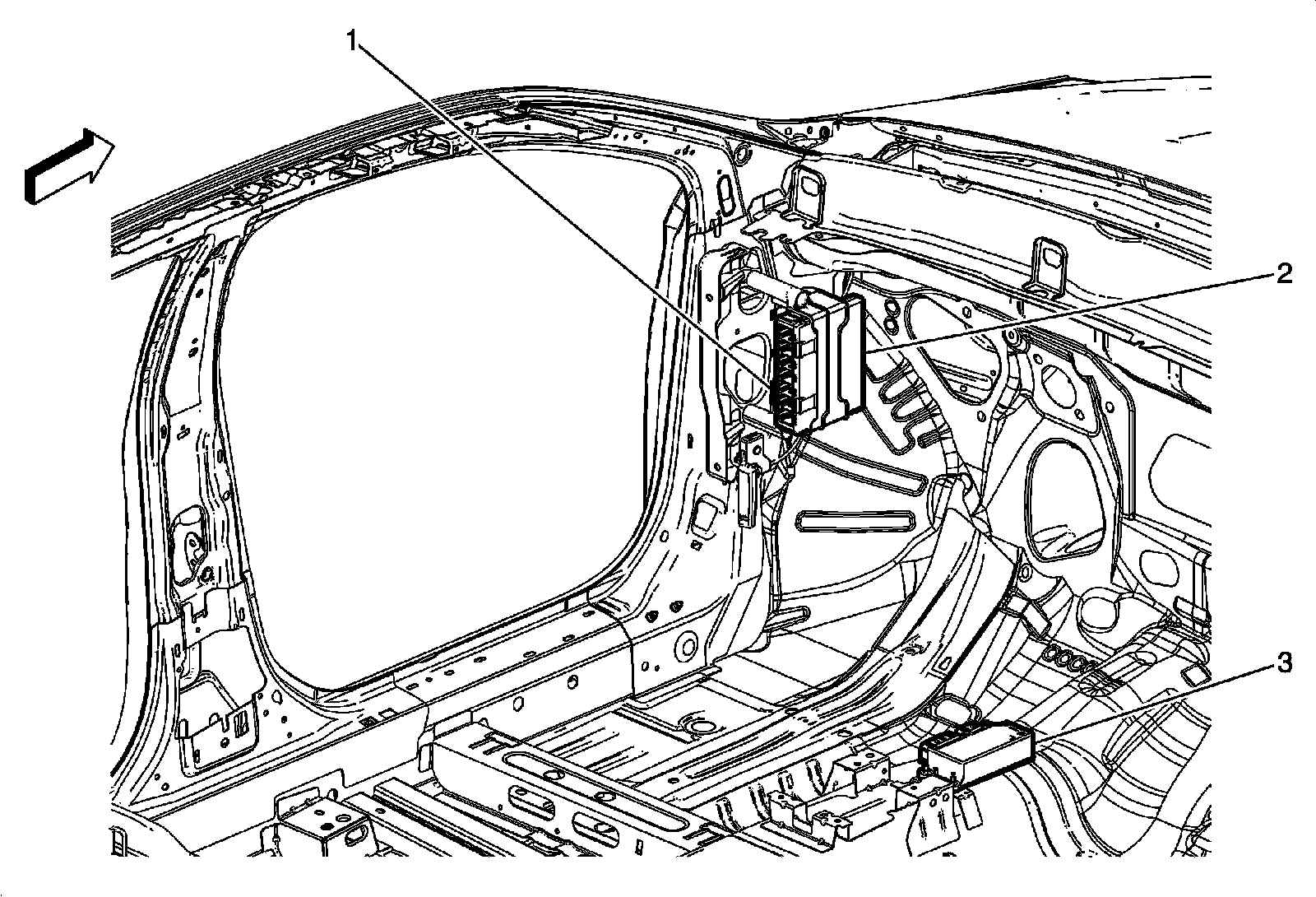

Left Front Passenger Compartment





1 - K43 - Power Steering Control Module

2 - K9 - Body Control Module

3 - K36 - Inflatable Restraint Sensing and Diagnostic Module
