Air Cleaner Element Replacement

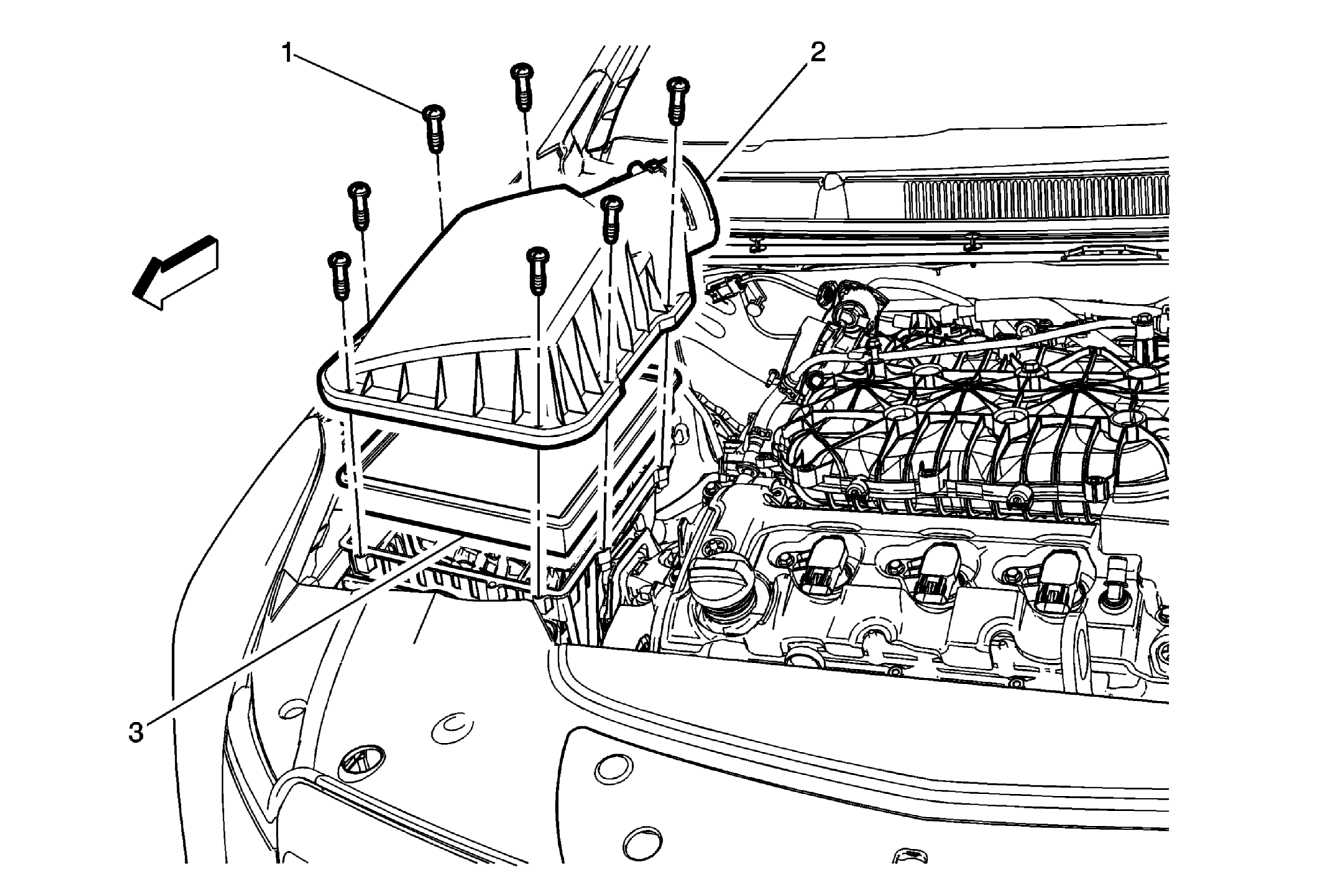

Fig 1: Air Cleaner Element, Upper Cover & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly Fasteners (Qty: 7) CAUTION: Refer to Fastener Caution .
2	Air Cleaner Upper Cover Procedure Disconnect the electrical connector.
3	Air Cleaner Element
