Manifold Absolute Pressure Sensor Replacement

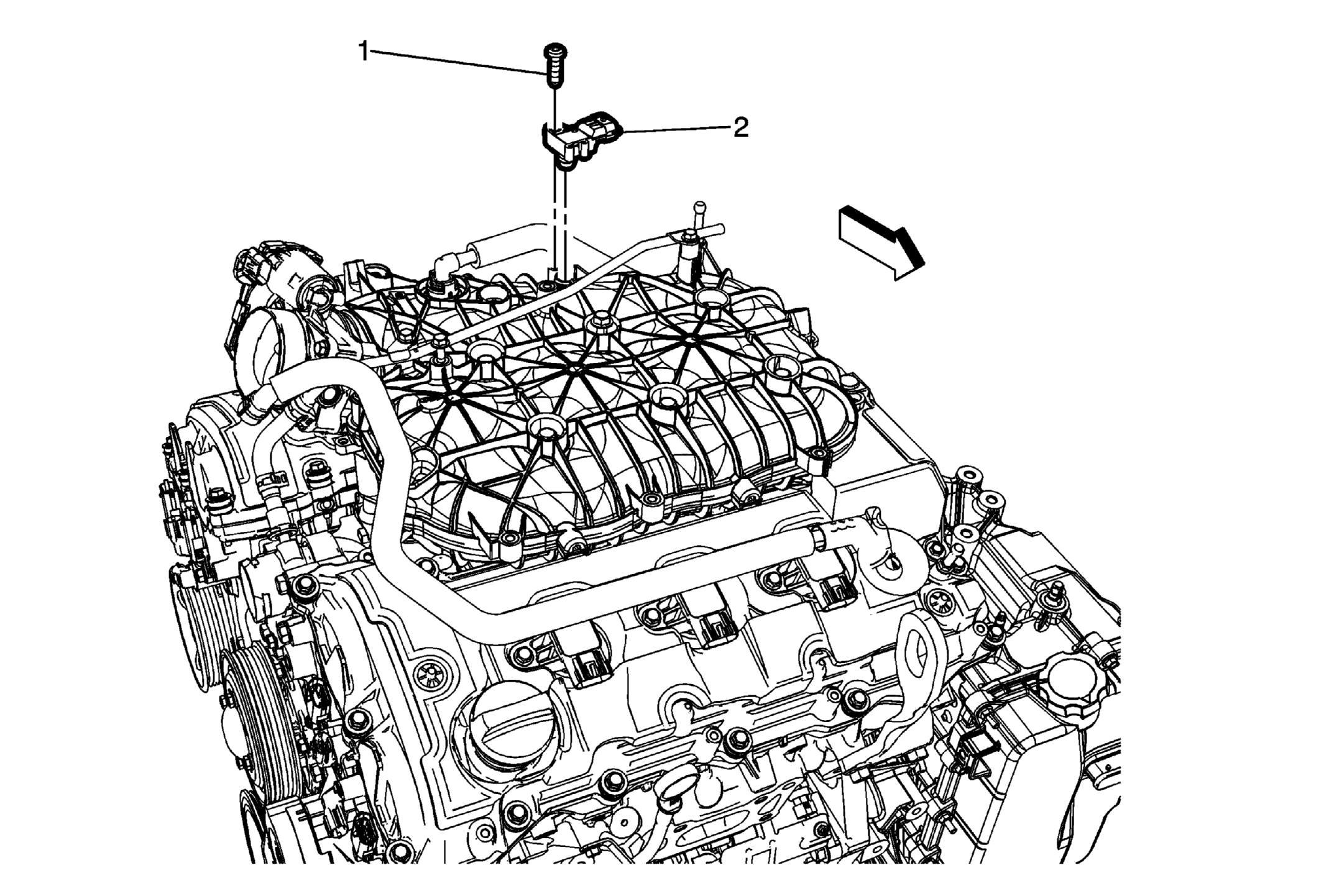

Fig 1: Manifold Absolute Pressure Sensor & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution .
2	Manifold Absolute Pressure Sensor Procedure Disconnect the electrical connector.
