Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

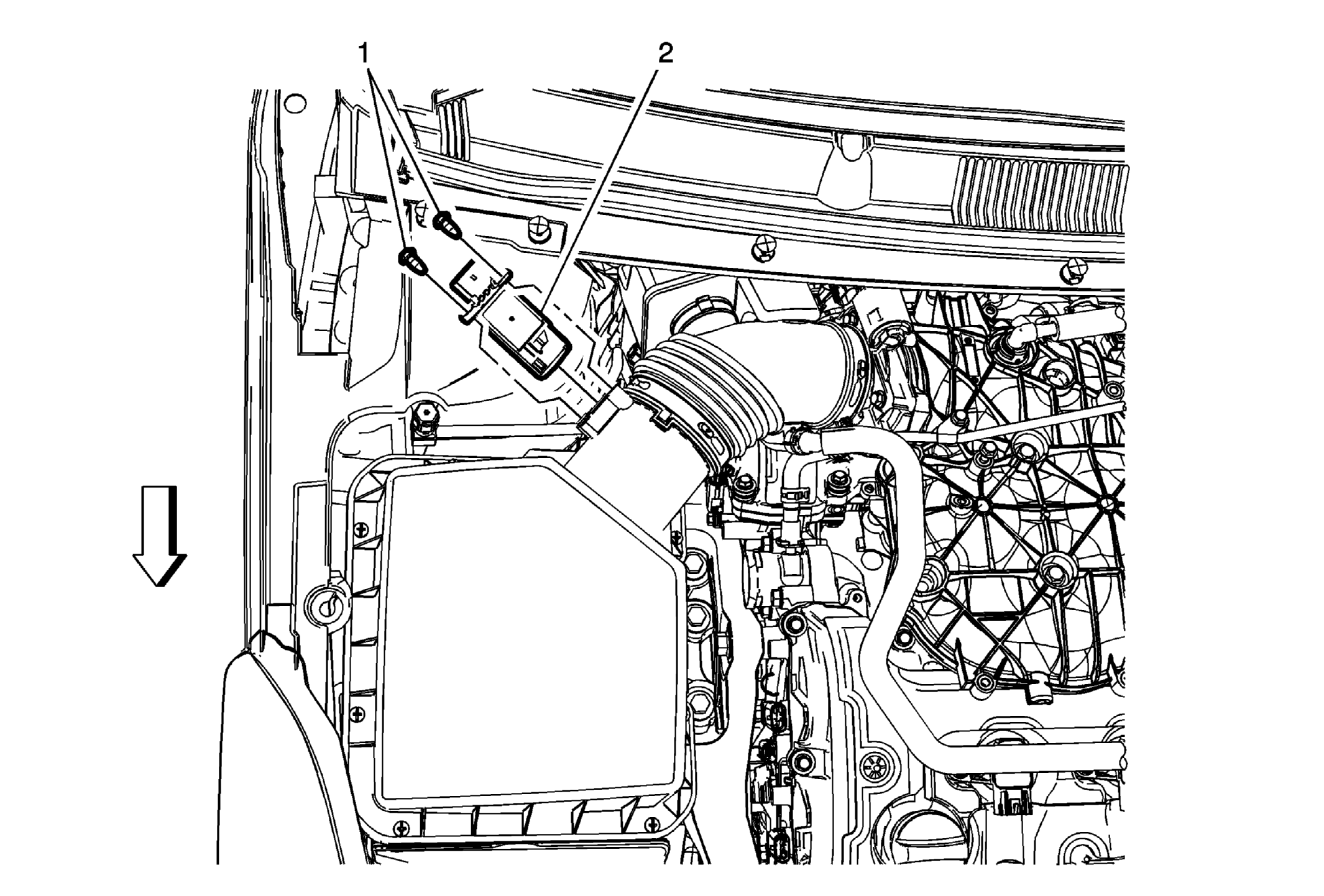

Fig 1: Mass Airflow Sensor & Fasteners
GM2754801Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout Component Name
1 Mass Air Flow Sensor Fasteners (Qty :2)
CAUTION:

Refer to Fastener Caution .
2 Mass Air Flow Sensor
Procedure
Disconnect the electrical connector.
