Front Seat Heater Control Module Replacement

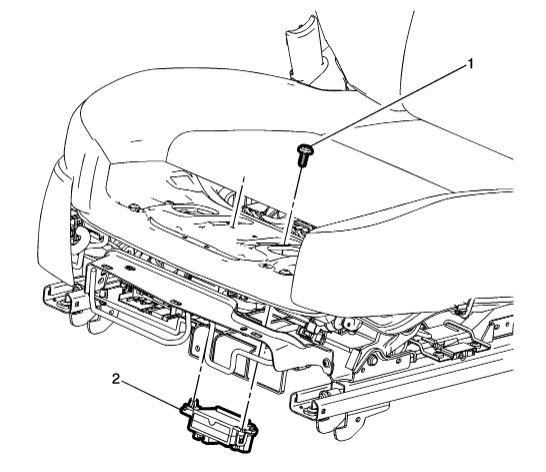

Fig 1: Front Seat Heater Control Module
GM2844309Courtesy of GENERAL MOTORS COMPANY
Front Seat Heater Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the front seat front extension cushion. Refer to Front Seat Front Extension Cushion Replacement
1 Front Seat Heater Control Module Fastener
CAUTION:

Refer to Fastener Caution .
2 Front Seat Heater Control Module
Procedure
Disconnect the electrical connector.
