Installation Procedure

  1. Install the quarter window into the opening. Refer to Adhesive Installation of Encapsulated Stationary Windows .
  2. Install the headlining trim panel. Refer to Headlining Trim Panel Replacement .
  3. Install the body side rear window lower garnish molding. Refer to Body Side Rear Window Lower Garnish Molding Replacement .

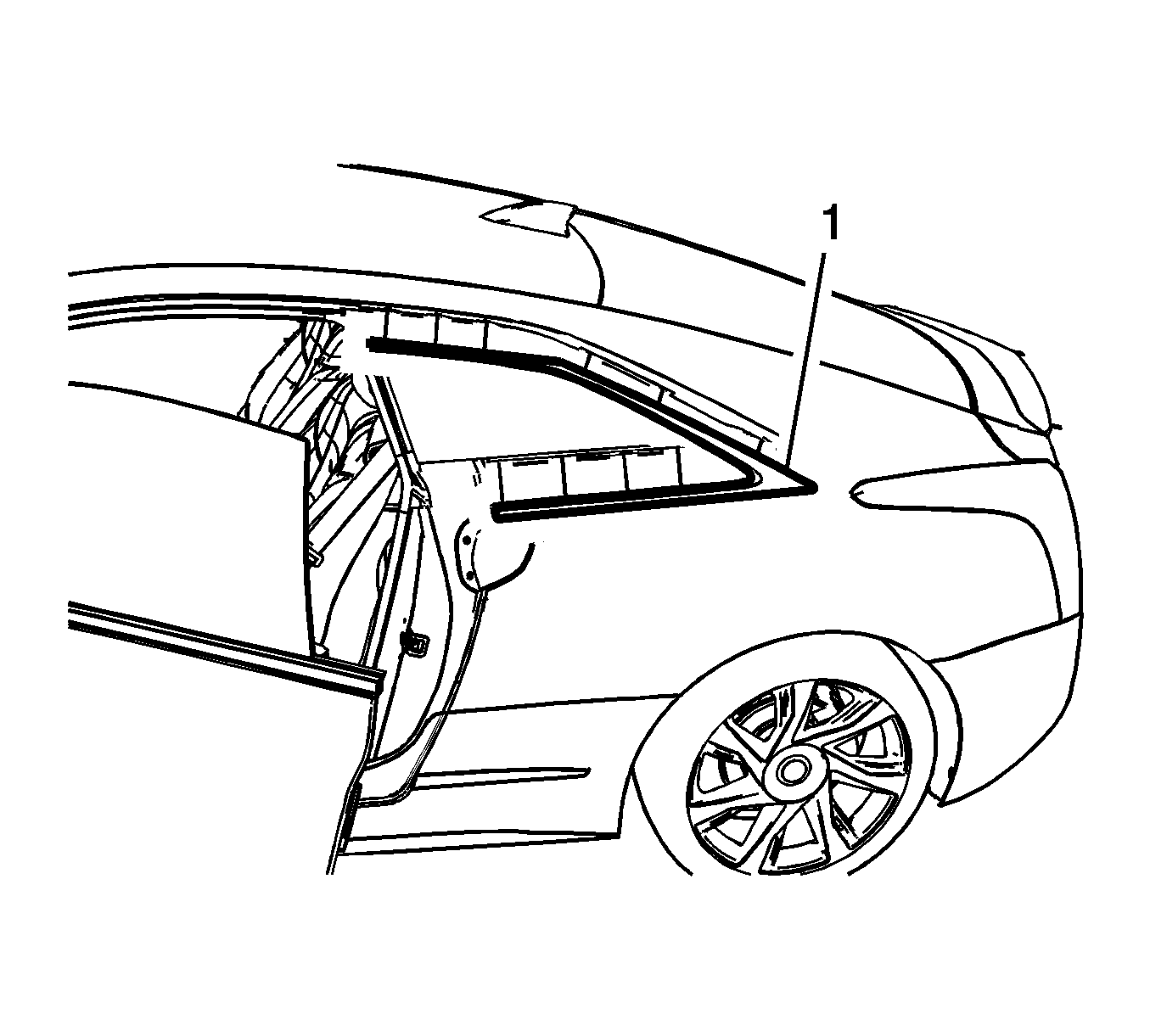

    4. Fig 1: Quarter Window Reveal Molding
    GM3611242Courtesy of GENERAL MOTORS COMPANY
  4. Install the quarter window reveal molding (1) to vehicle.
  5. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
