Intake Air Baffle Replacement

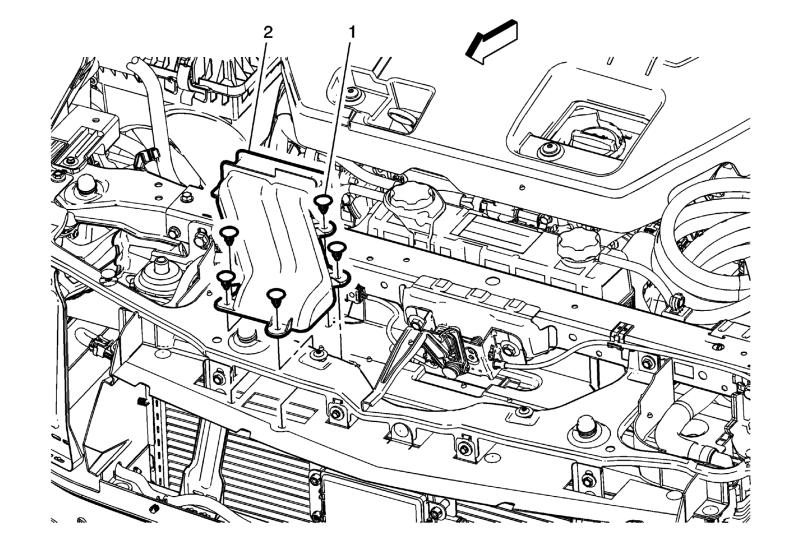

Fig 1: Intake Air Baffle
GM3612845Courtesy of GENERAL MOTORS COMPANY
Intake Air Baffle Replacement

Callout Component Name
Preliminary Procedure
Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement .
1 Intake Air Baffle Retainers (Qty: 5)
2 Intake Air Baffle
