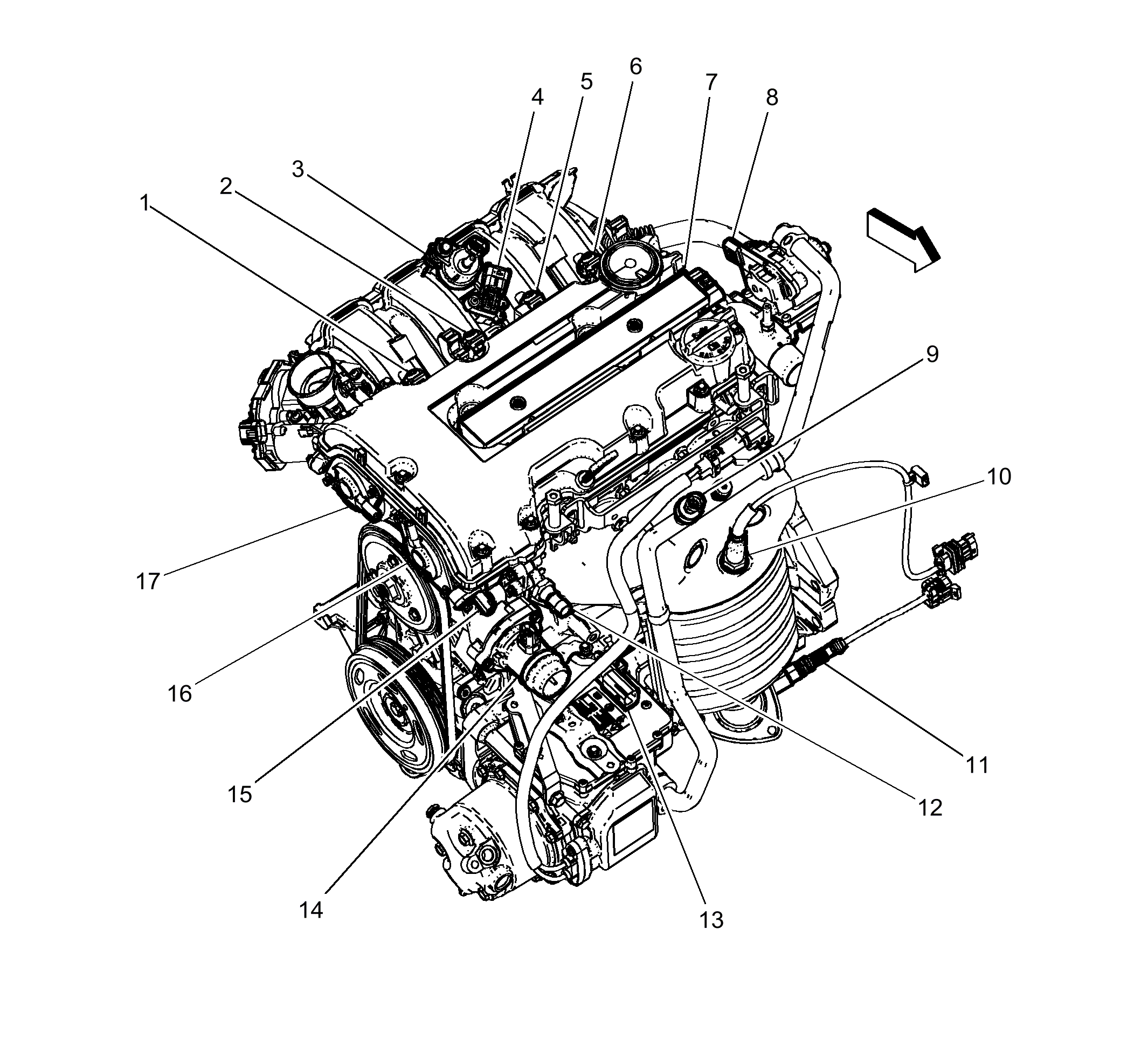

Right Front of Engine Components
Right Front of Engine Components
| Items |
|---|
| 1: Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 2: Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 3: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Vavle |
| 4: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 5: Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 6: Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 7: K35 Ignition Coil Module K35 Ignition Coil Module |
| 8: Q29 Secondary Air Injection Solenoid Valve Q29 Secondary Air Injection Solenoid Valve |
| 9: B1C A/C Low Side Pressure Sensor |
| 10: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 11: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 12: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch |
| 13: G1 A/C Compressor G1 A/C Compressor X1G1 A/C Compressor X2 |
| 14: E41 Engine Coolant Thermostat Heater E41 Engine Coolant Thermostat Heater |
| 15: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 16: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 17: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
