Fuel Pump Power Control Module Replacement

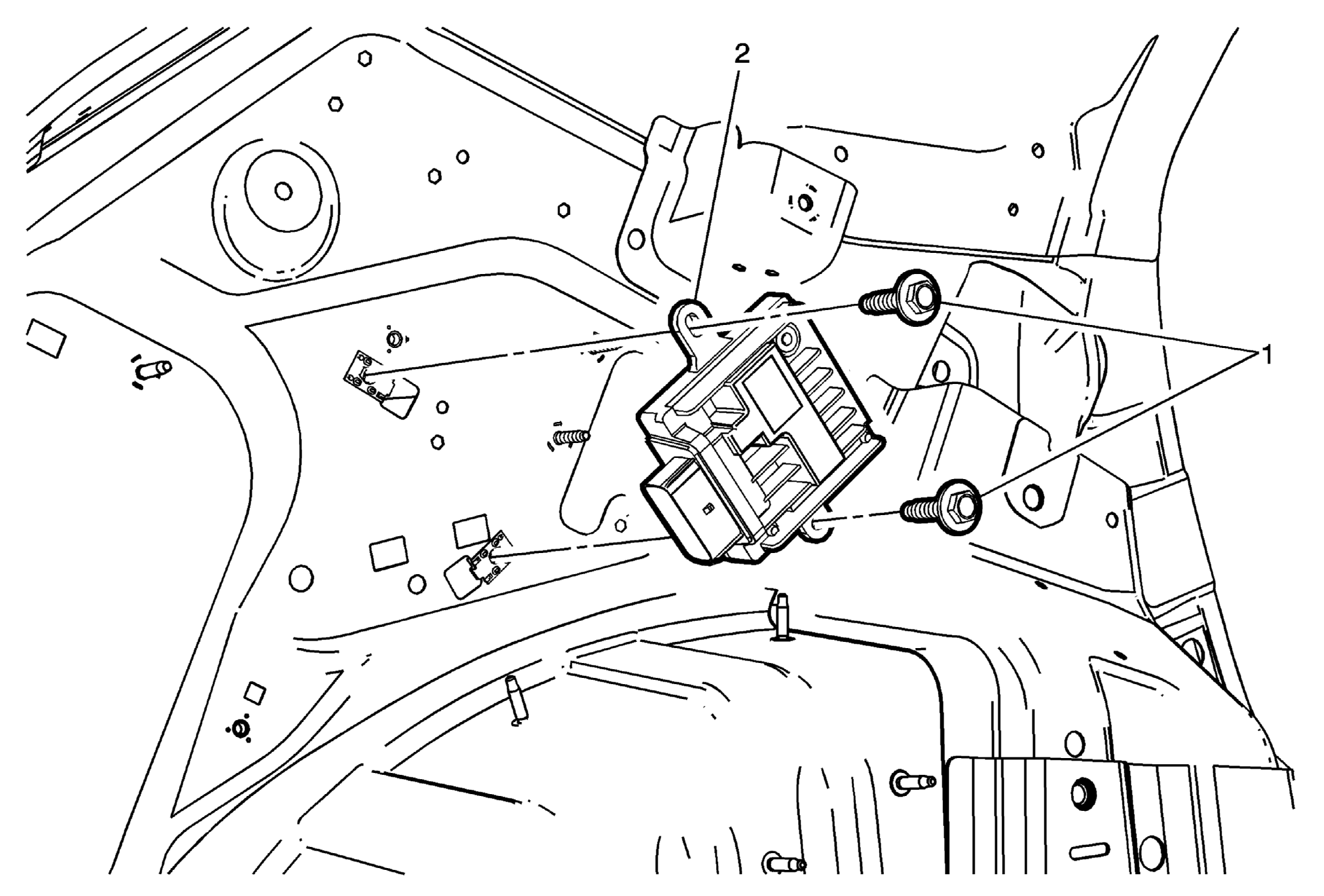

Fig 1: Fuel Pump Power Control Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Fuel Pump Power Control Module Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 8 N.m (71 lb in)
2	Fuel Pump Power Control Module Procedure Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement . Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Fuel Pump Power Control Module Fasteners (Qty: 2)

CAUTION:

Tighten
8 N.m (71 lb in)

Fuel Pump Power Control Module

Procedure

Remove the left body side trim panel. Refer to Body Side Trim Panel Replacement .
Disconnect the electrical connector.
If replacing, reprogram the module. Refer to Control Module References .
