Battery Replacement

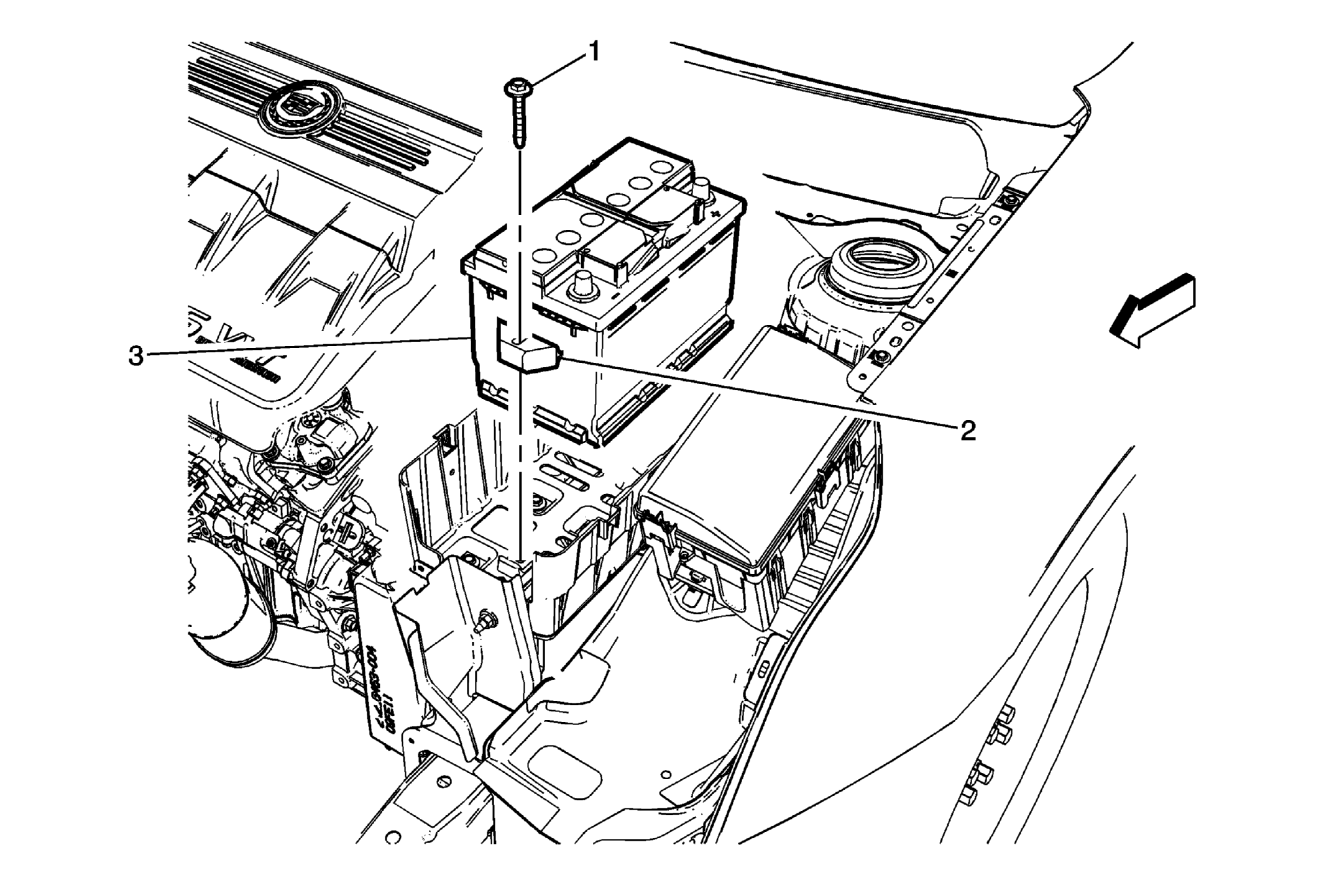

Fig 1: Battery And Battery Retainer

Courtesy of GENERAL MOTORS COMPANY

Battery Replacement

Callout	Component Name
Preliminary Procedures Remove the battery cover/engine control module (ECM). Disconnect the negative battery cable.Refer to Battery Negative Cable Disconnection and Connection Remove the battery fuse block.Refer to Fuse Block Replacement
1	Battery Retainer Fastener CAUTION: Refer to Fastener Caution Tighten 10 (89 lb in)
2	Battery Retainer
3	Battery
