Removal Procedure

    Fig 1: Identifying Generator, Electrical Harness Connector & Nut
    GM2196013Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Reposition the positive battery cable boot at the generator terminal.
  3. Disconnect the engine harness electrical connector (1) from the generator.
  4. Remove the positive battery cable nut (2) at the generator.
  5. Remove the positive battery cable terminal (3) from the generator.
  6. Remove the drive belt. Refer to Drive Belt Replacement .

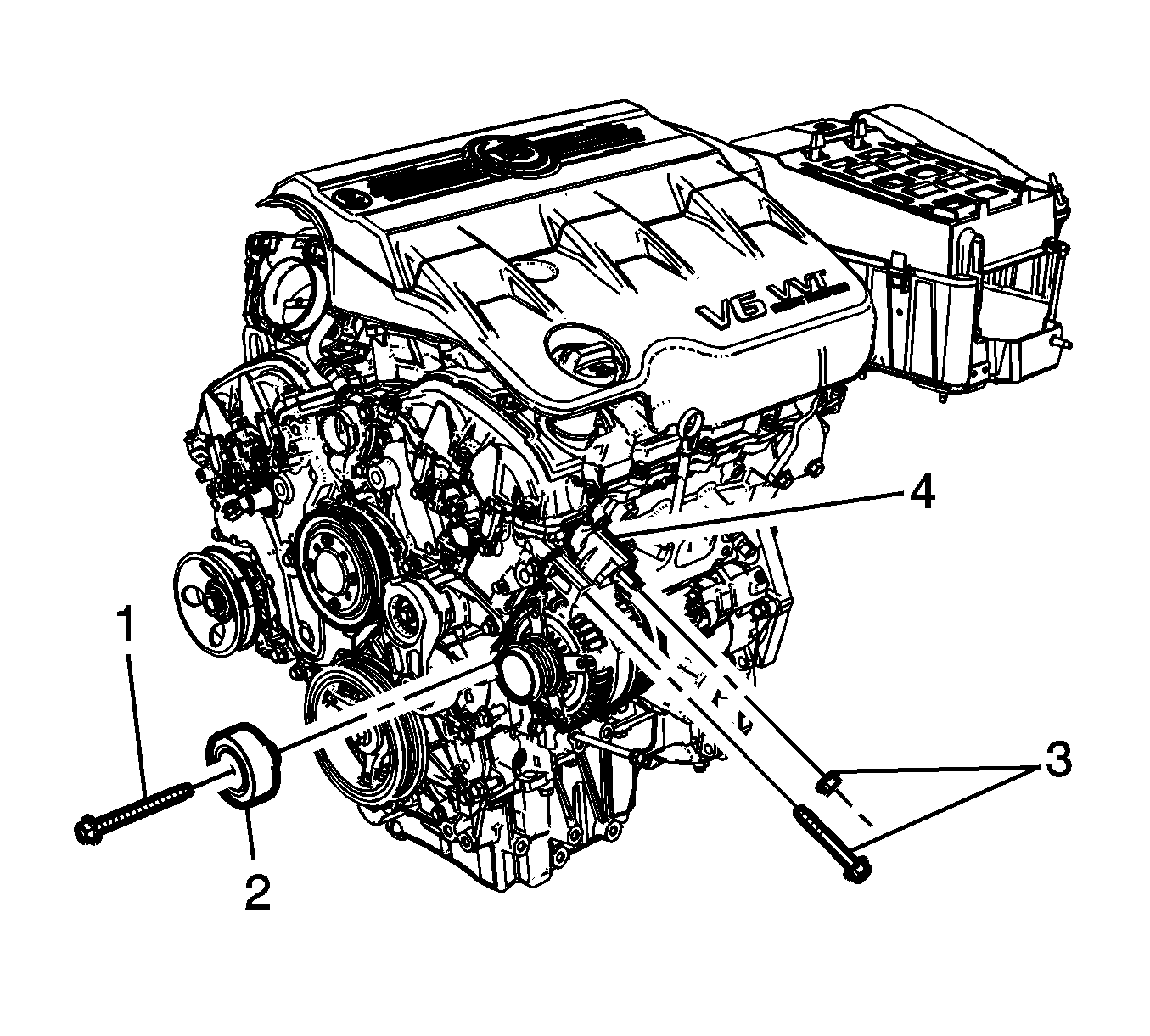

    7. Fig 2: Idler Pulley And Generator
    GM2671195Courtesy of GENERAL MOTORS COMPANY
  7. Remove the idler pulley fastener (1) and idler pulley (2).
  8. Remove the generator fasteners (3).
    9. NOTE:

    When removing the generator from the vehicle, it may be necessary to maneuver the generator to remove it from the vehicle.

  9. Remove the generator (4).
