Cruise Control System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cruise Control System

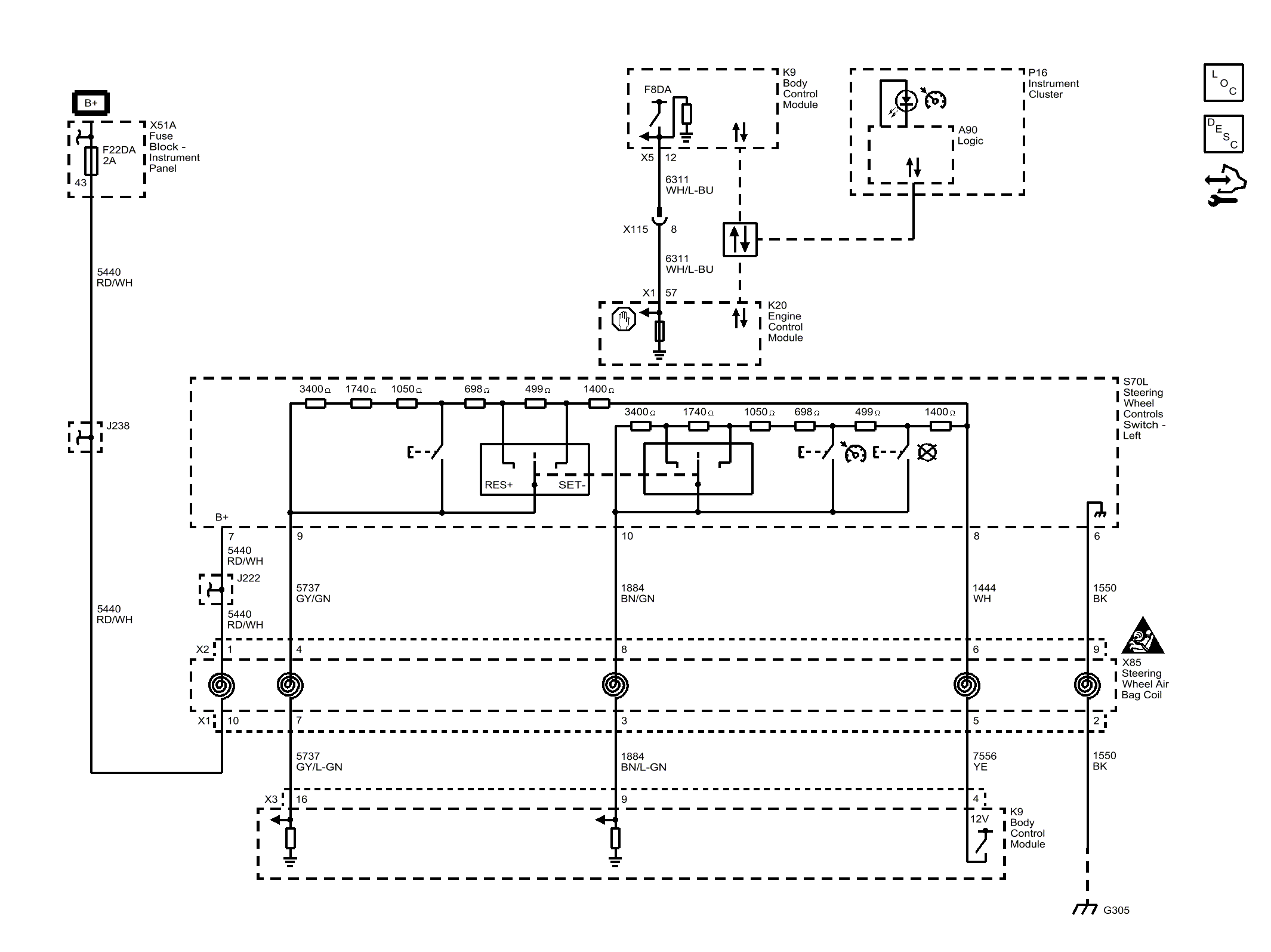

Fig 1: Cruise Control System
Courtesy of GENERAL MOTORS COMPANY
