Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2013 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

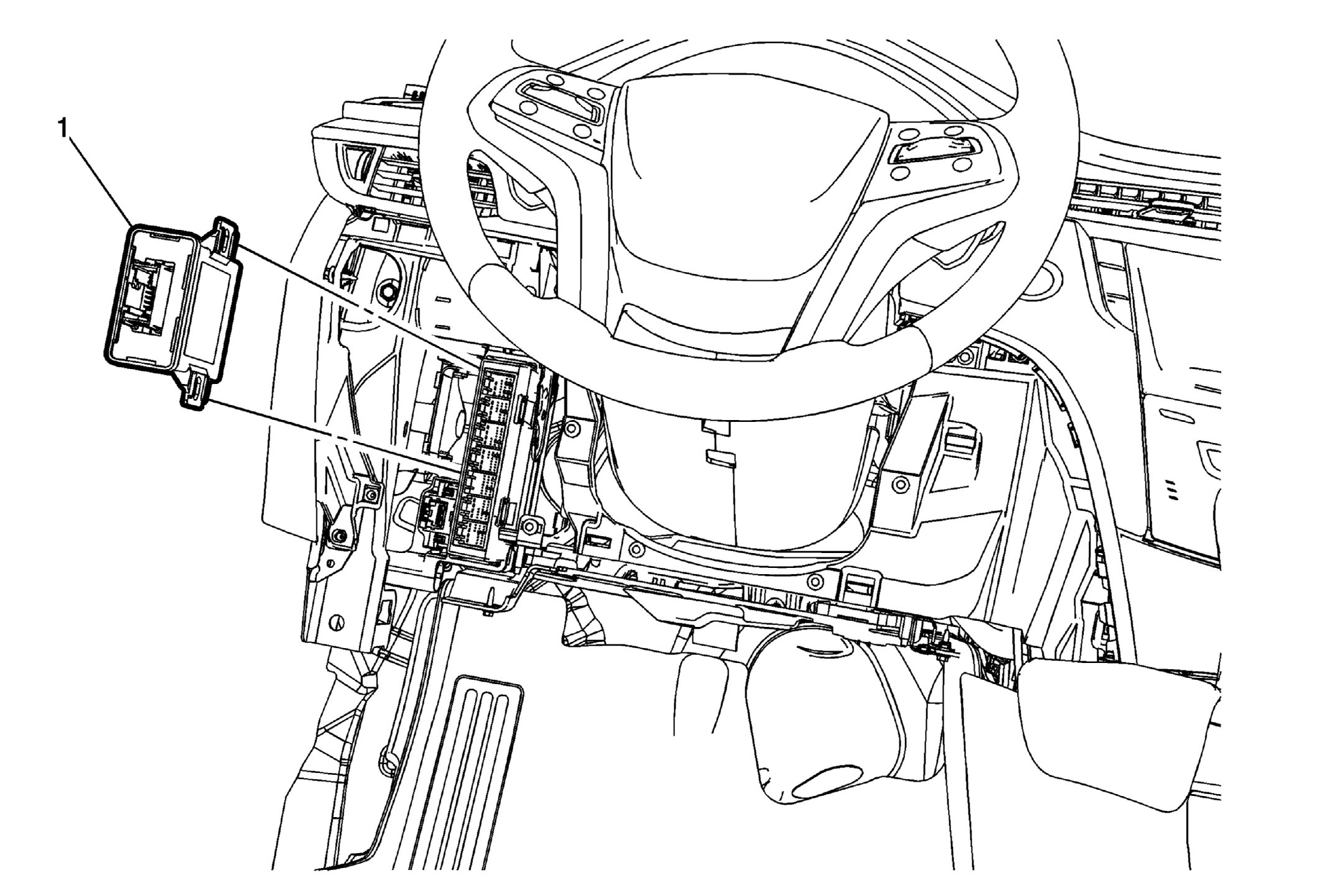

Fig 1: Headlamp Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1	Headlamp Control Module Procedure Disconnect the electrical connectors. Push tabs to release the headlamp control module from the bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Push tabs to release the headlamp control module from the bracket.
For programming and set up, refer to Control Module References .
