Power, Ground, Serial Data and Side Object Detection (UFG/UFT)

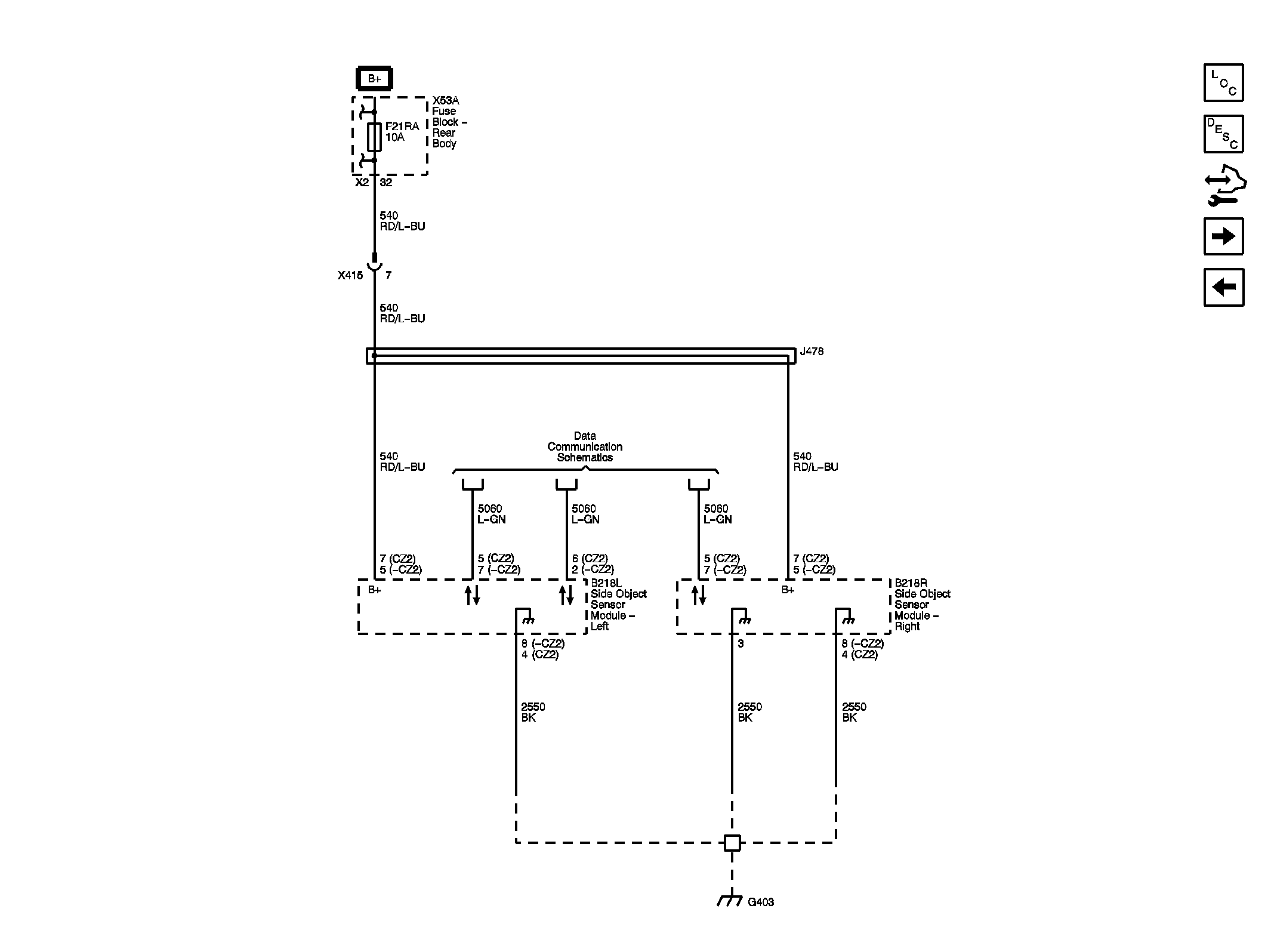

Fig 1: Power, Ground, Serial Data and Side Object Detection (UFG/UFT)
GM3254395Courtesy of GENERAL MOTORS COMPANY
