Serial Data (UGN/UVZ)

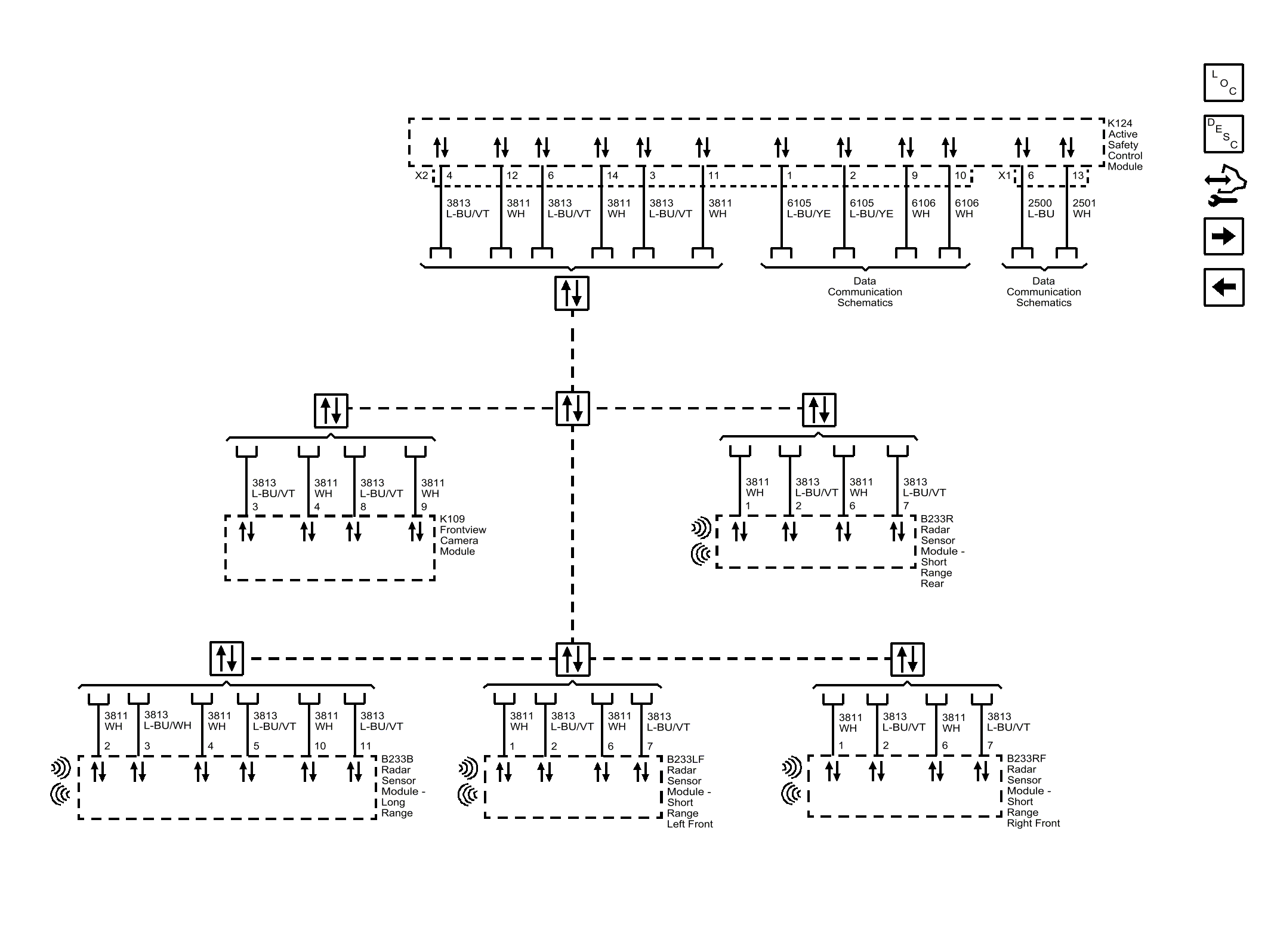

Fig 1: Serial Data (UGN/UVZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
