Info Display Module Signals

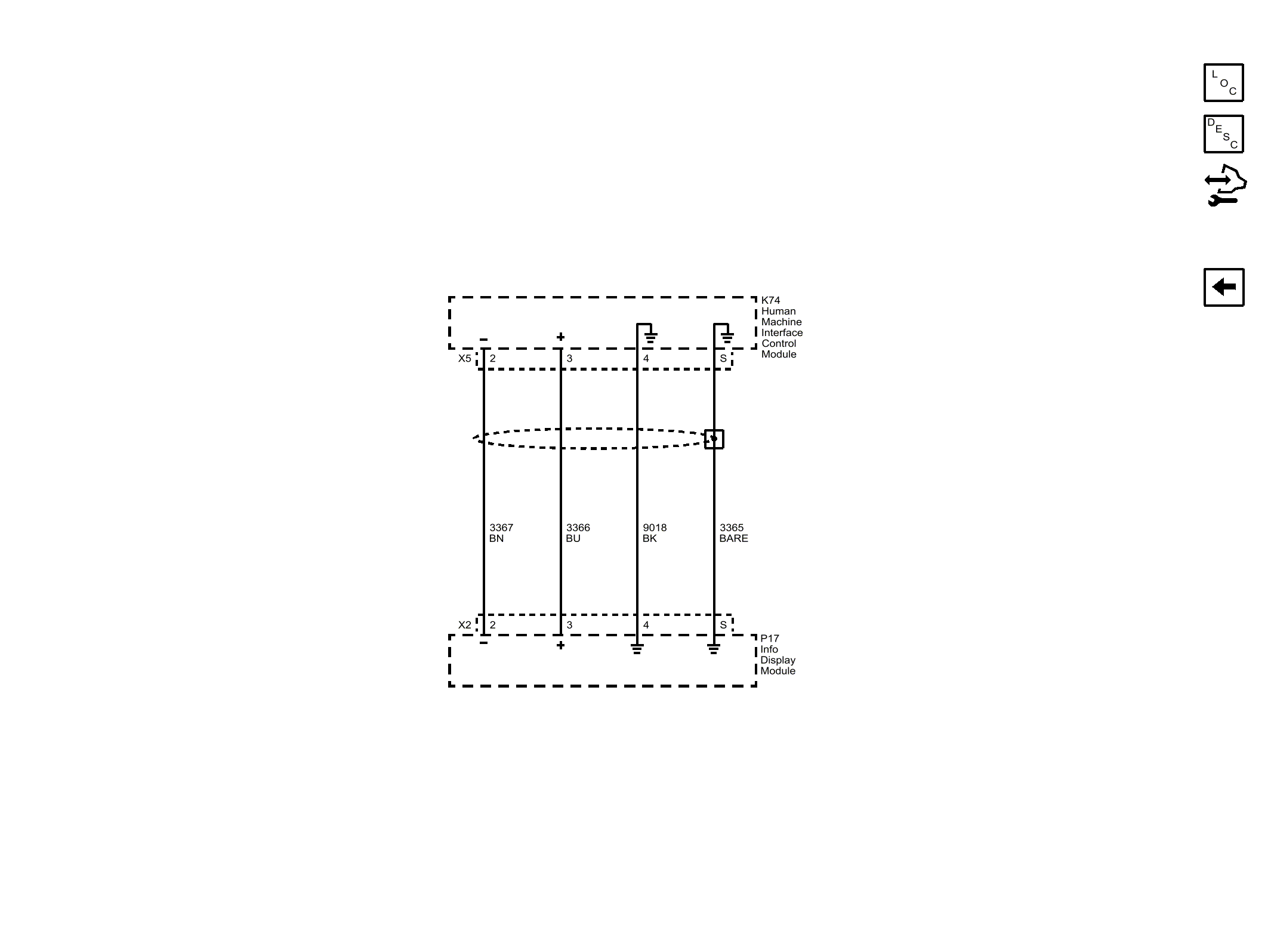

Fig 1: Info Display Module Signals
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
