Installation Procedure

Install the BPMV assembly to the bracket.
Install the BPMV bracket bolt (1) and tighten to 8 N.m (71 lb in).

Fig 1: BPMV Bracket Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install the BPMV assembly.
Install the BPMV bracket nuts (1) and tighten to 7 N.m (62 lb in).

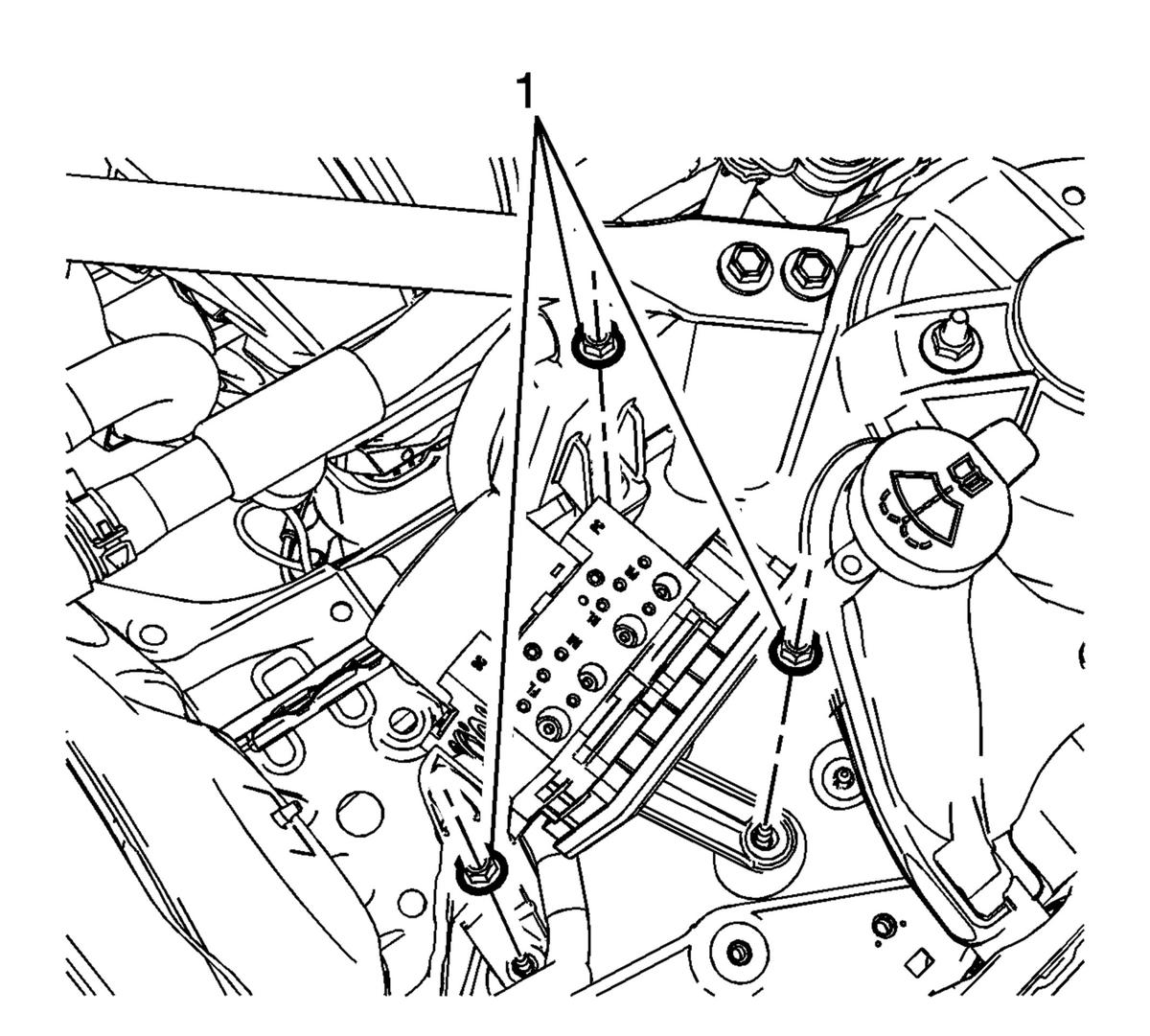

Fig 2: BPMV Bracket Nuts
Courtesy of GENERAL MOTORS COMPANY
Install the brake pressure modulator valve secondary brake pipe fitting (1) and tighten to 32 N.m (24 lb ft).

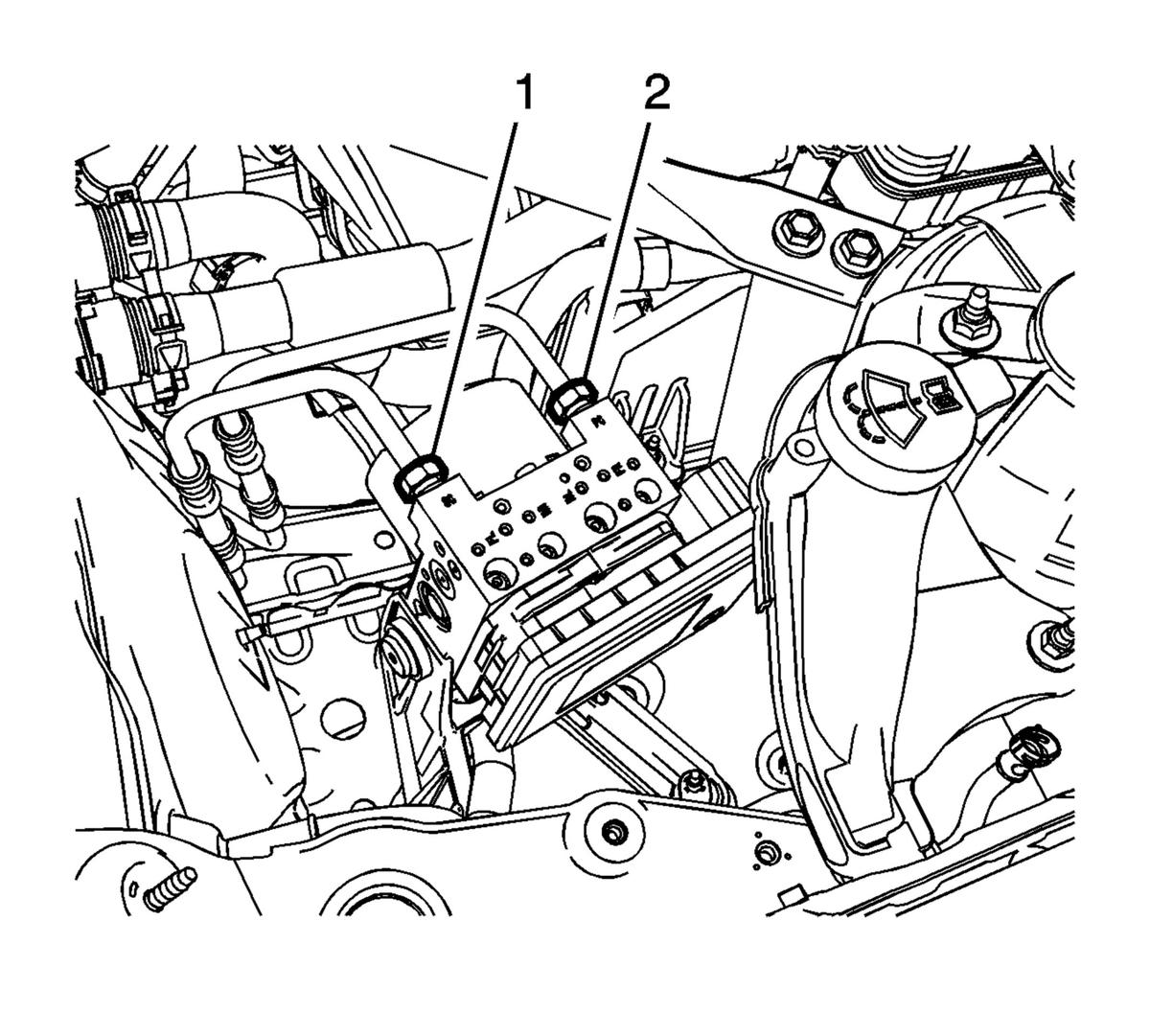

Fig 3: Secondary Brake Pipe Fitting And Primary Brake Pipe Fitting
Courtesy of GENERAL MOTORS COMPANY
Install the brake pressure modulator valve primary brake pipe fitting (2) and tighten to 32 N.m (24 lb ft).
Install the left rear brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).

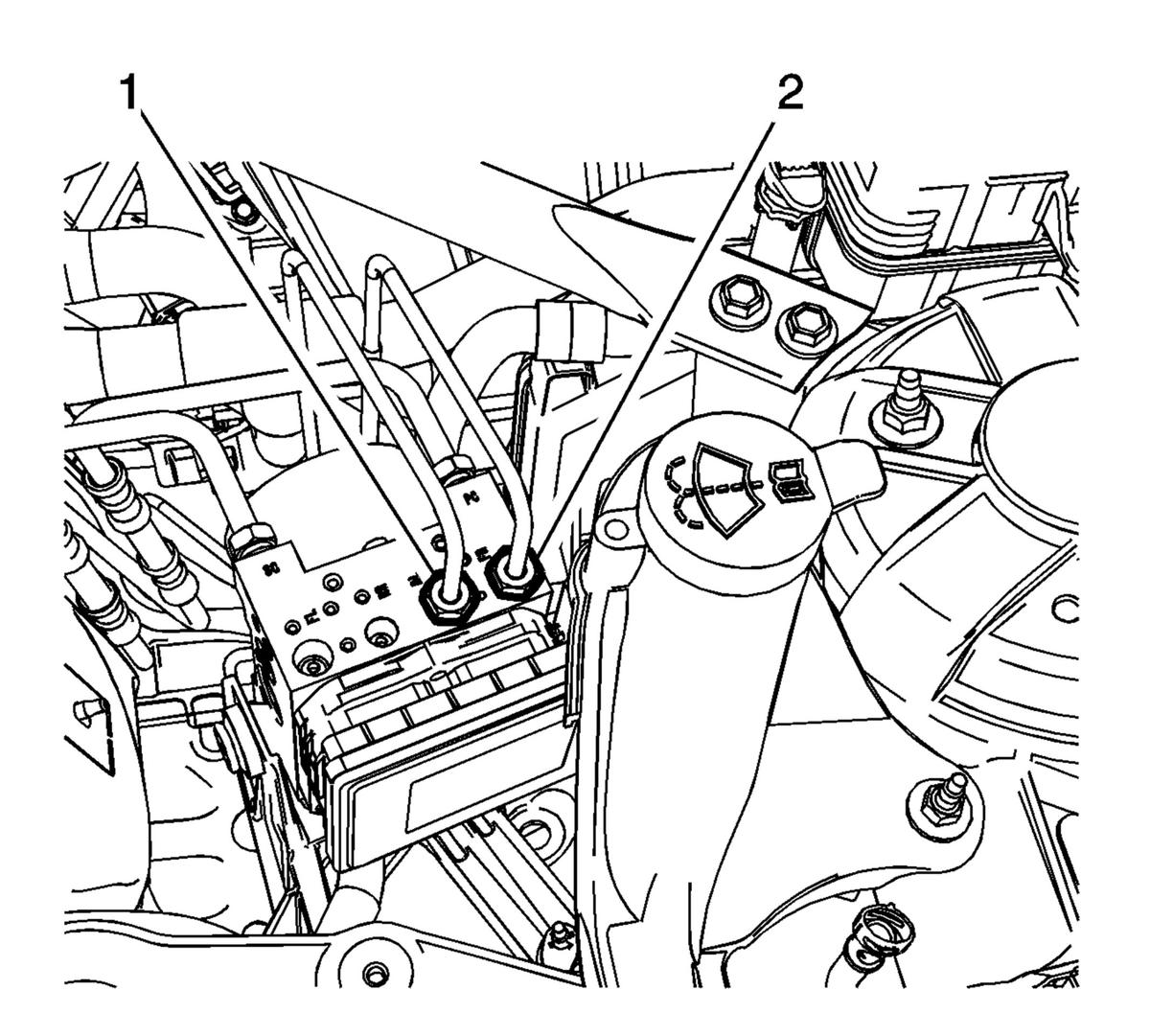

Fig 4: Brake Pipe Fitting
Courtesy of GENERAL MOTORS COMPANY
Install the right front brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).
Install the left front brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).

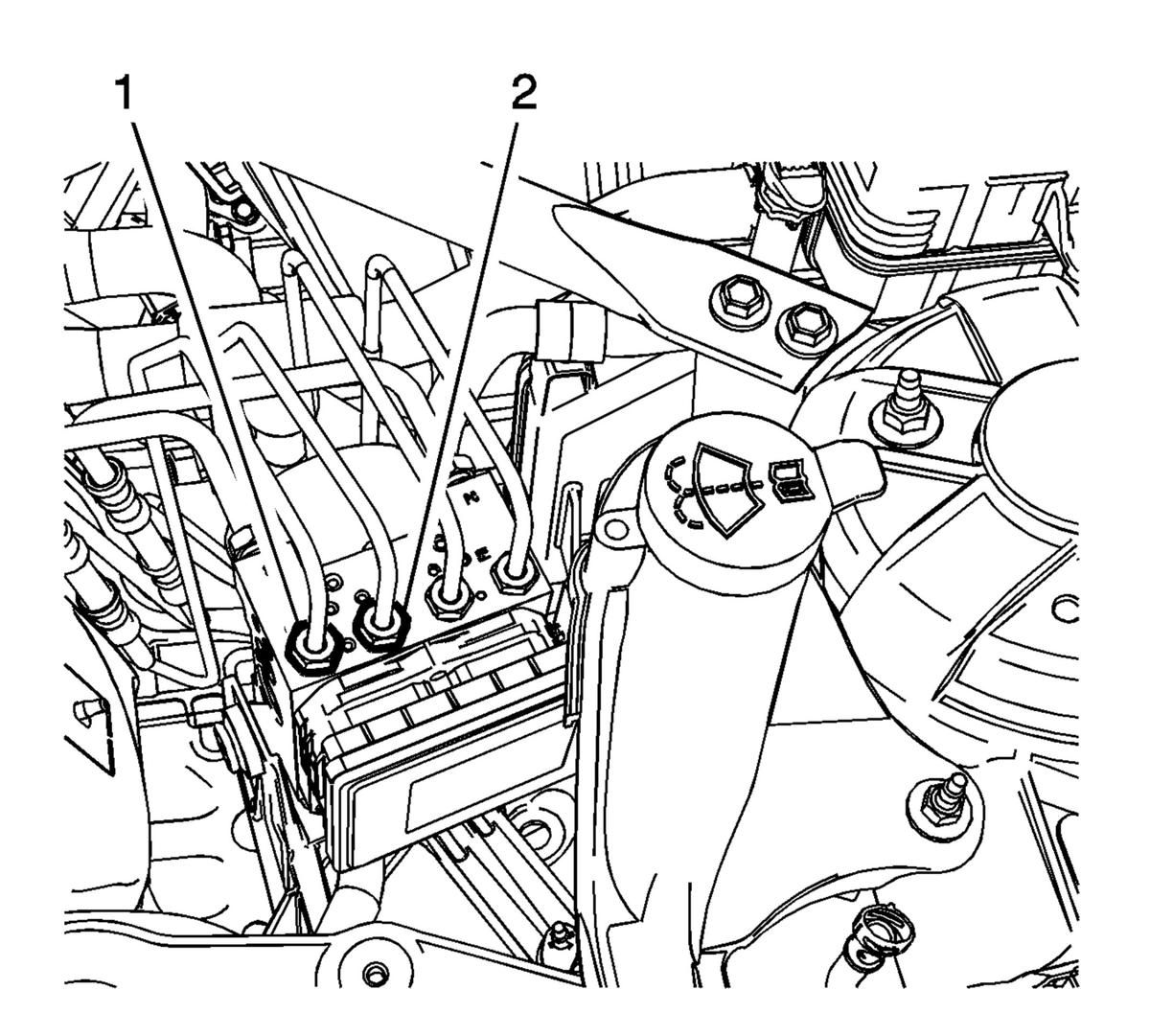

Fig 5: Brake Pipe Fittings
Courtesy of GENERAL MOTORS COMPANY
Install the right rear brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).
Connect the EBCM electrical connector.
Install the plenum front panel. Refer to Plenum Front Panel Replacement .
Program the EBCM. Refer to Control Module References .
Bleed the antilock brake system. Refer to Antilock Brake System Automated Bleed .
Perform the Diagnostic System Check - Vehicle .
Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
Center the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering .
