Wireless Charging System Module Replacement

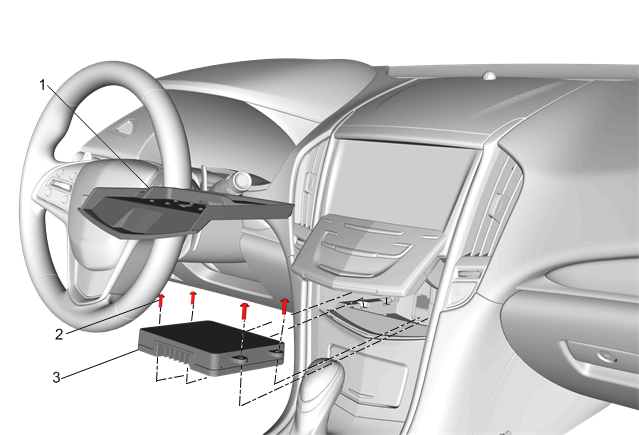

| Callout | Component Name |
|---|---|
| Preliminary Procedure Roll open the switch panel assembly to gain access to the charging rubber mat. |
|
| 1 | Charging System Wireless Module Rubber Mat |
| 2 | Charging System Wireless Module Fastener (Qty 4)
CAUTION:
Refer to Fastener Caution
. Tighten 1 N.m (8.9 lb in) |
| 3 | Charging System Wireless Module Procedure Disconnect the electrical connector. |
