Battery Negative Cable Extension Cable Replacement (LF3)

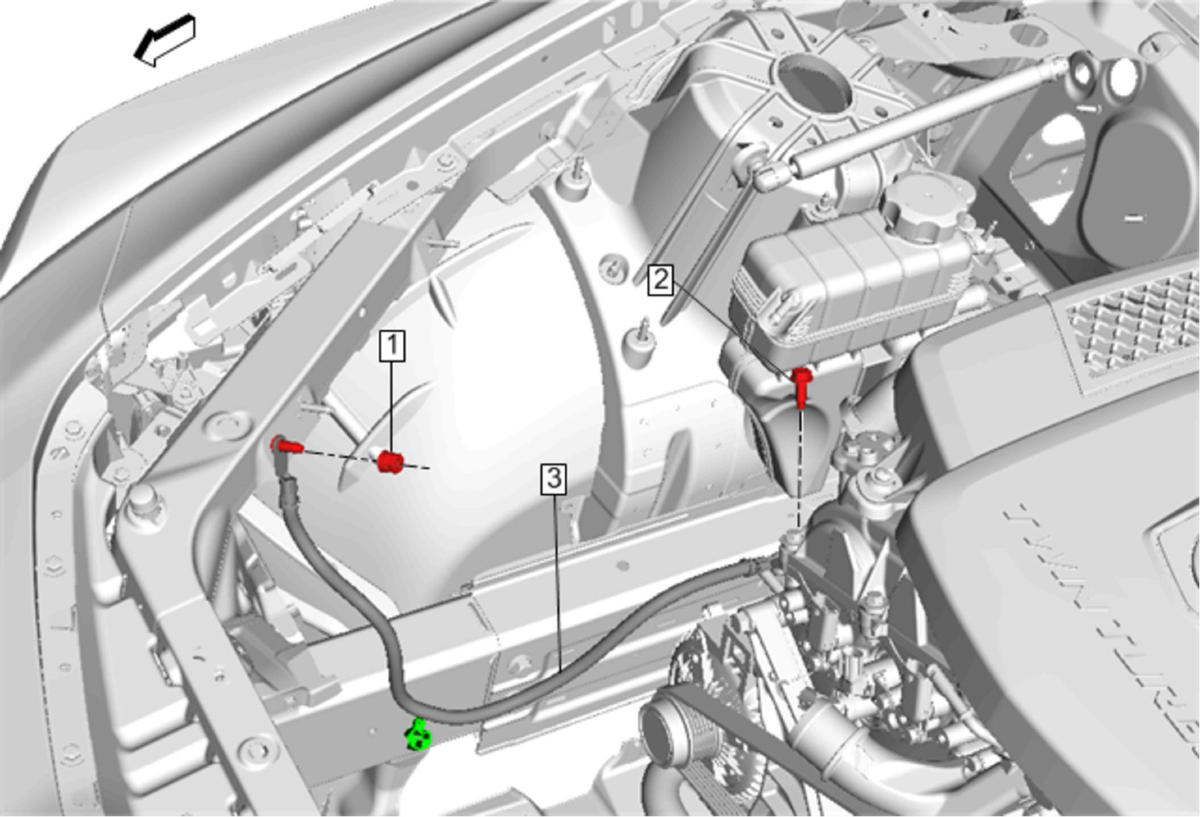

Fig 1: Battery Negative Cable Extension Cable (LF3)
GM4080648Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Battery Negative Cable Extension Cable Fastener
CAUTION: Refer to Fastener Caution .

Tighten
15 N.m (11 lb ft)
2 Engine Block Ground Bolt
Tighten
22 N.m (16 lb ft)
3 Battery Negative Cable Extension Cable
