GMLAN Communications Enable
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
GMLAN Communications Enable

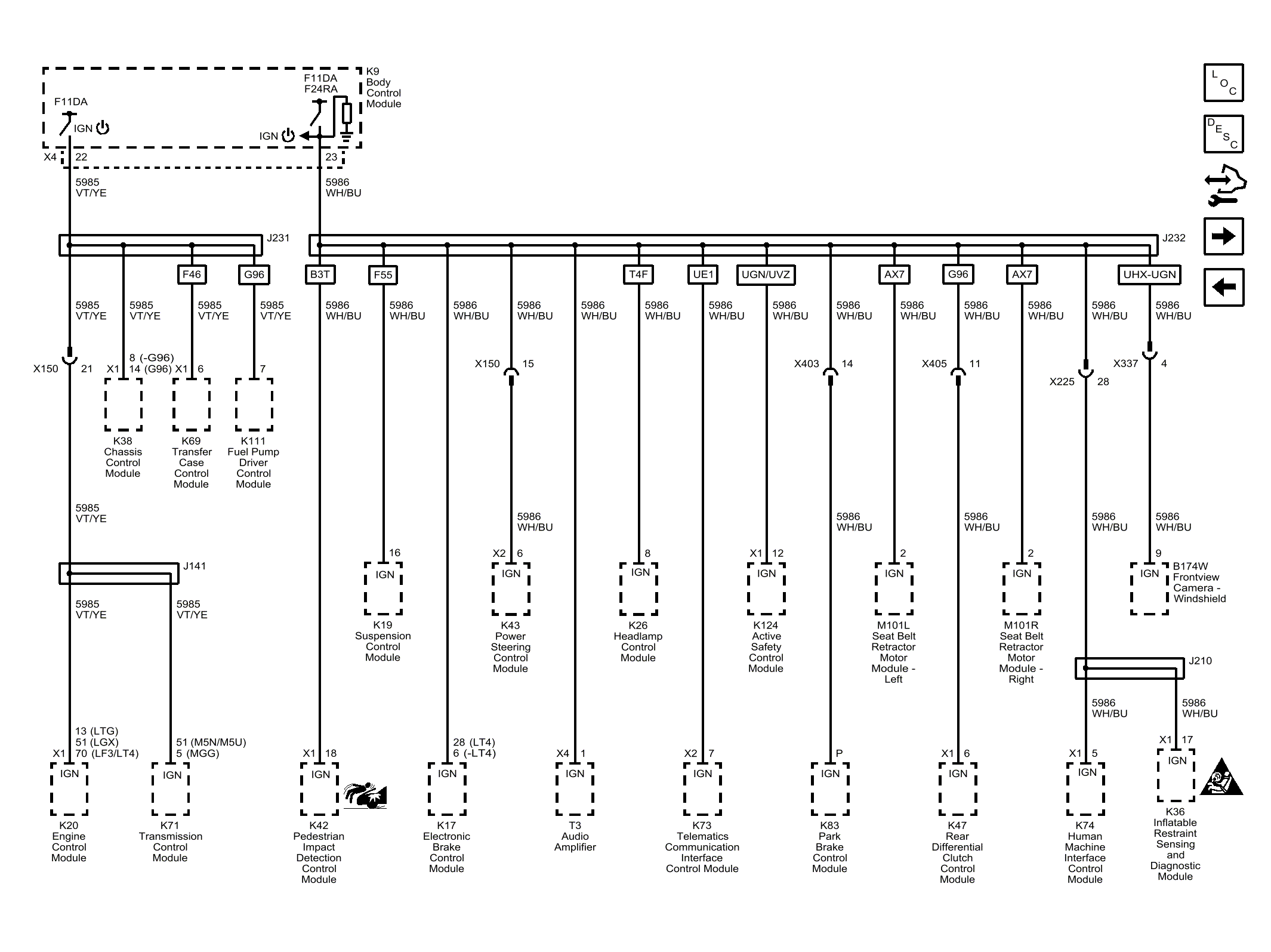

Fig 1: GMLAN Communications Enable
Courtesy of GENERAL MOTORS COMPANY
