Data Communication Wiring Schematics
>>
Most BUS and Communications Enable
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Most BUS and Communications Enable

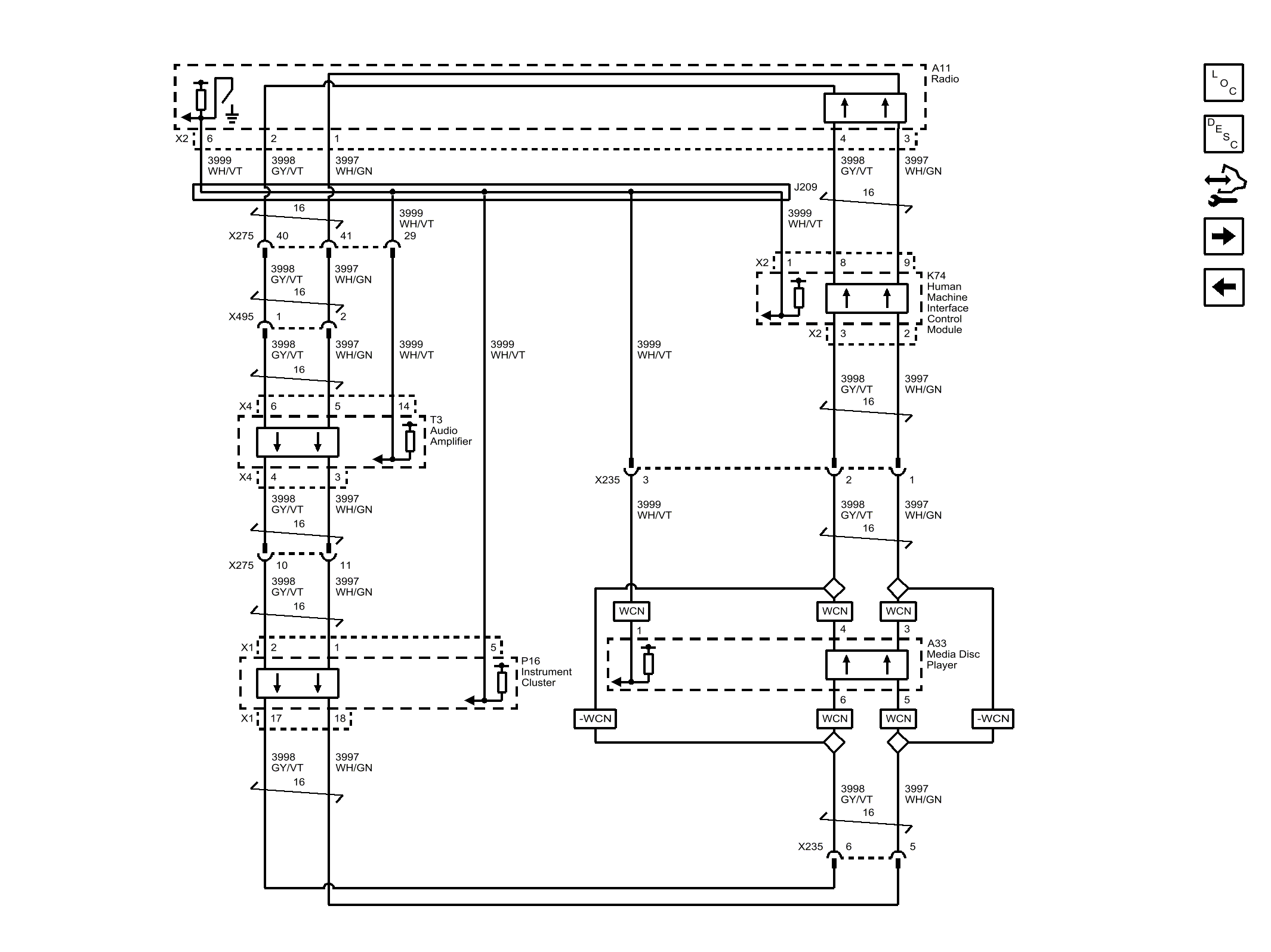

Fig 1: Most BUS and Communications Enable
Courtesy of GENERAL MOTORS COMPANY
