Air Cleaner Element Replacement

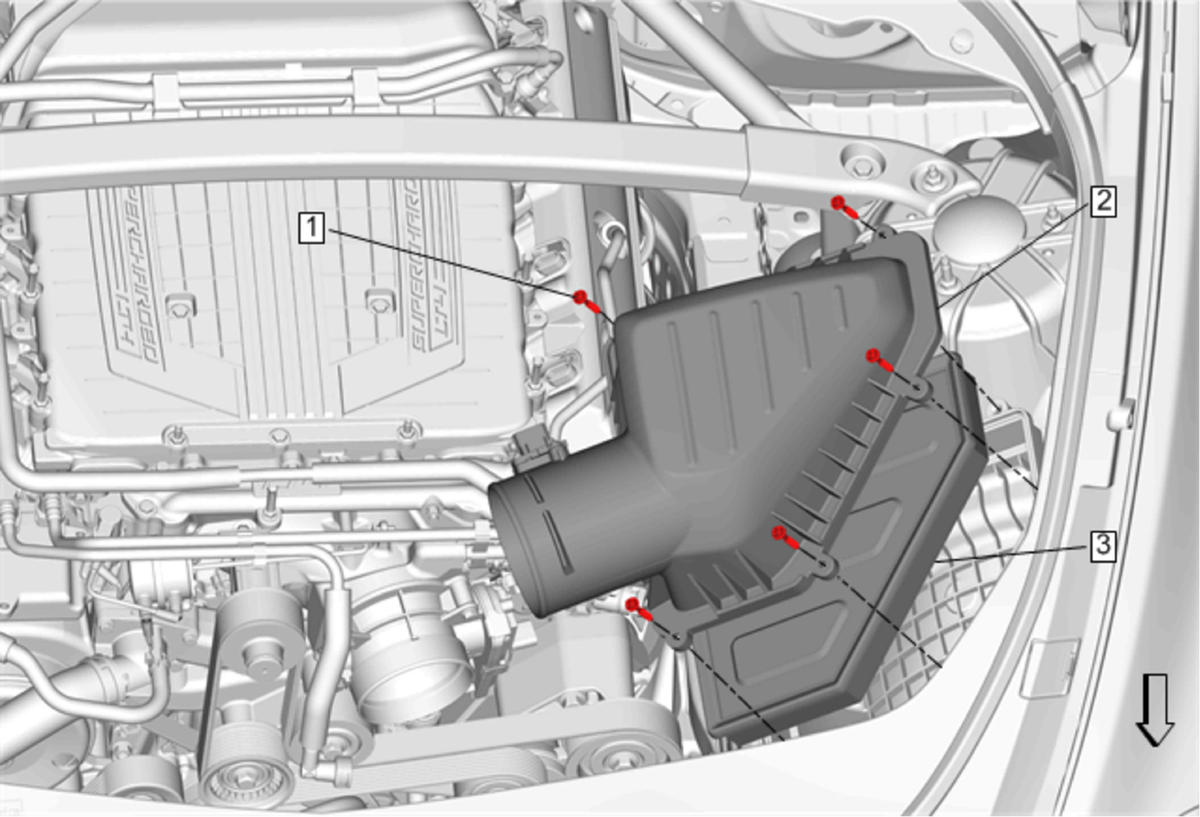

Fig 1: Air Cleaner Element
GM4083537Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Air Cleaner Outlet Duct Replacement
  2. Disconnect the electrical connector.
1 Air Cleaner Upper Housing Bolt [5x]
CAUTION: Refer to Fastener Caution .

Tighten
2.3 N.m (20.4 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
