Installation Procedure

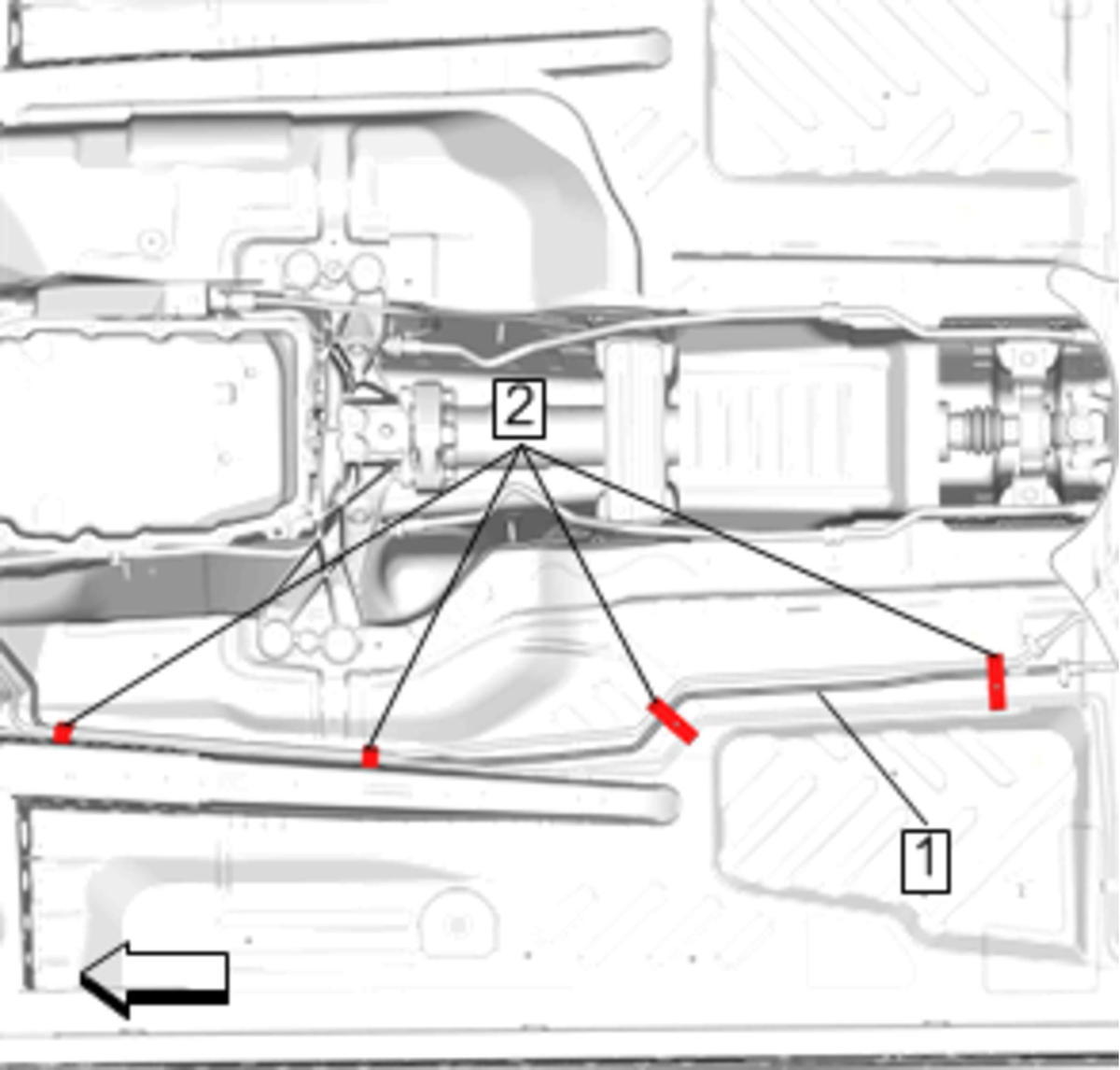

- Install the fuel feed pipe (1) to the vehicle.
- Connect the fuel feed pipe (1) and install to the retainers (2). Refer to Plastic Collar Quick Connect Fitting Service
- Install the right side catalytic converter and exhaust. Refer to Exhaust System Replacement (LF3, LGX)
- Install the front body exhaust heat shield right side. Refer to Front Body Exhaust Heat Shield Replacement (Right)
- Install the underbody front air deflector right side. Refer to Underbody Front Air Deflector Replacement - Right Side
- Lower the vehicle.

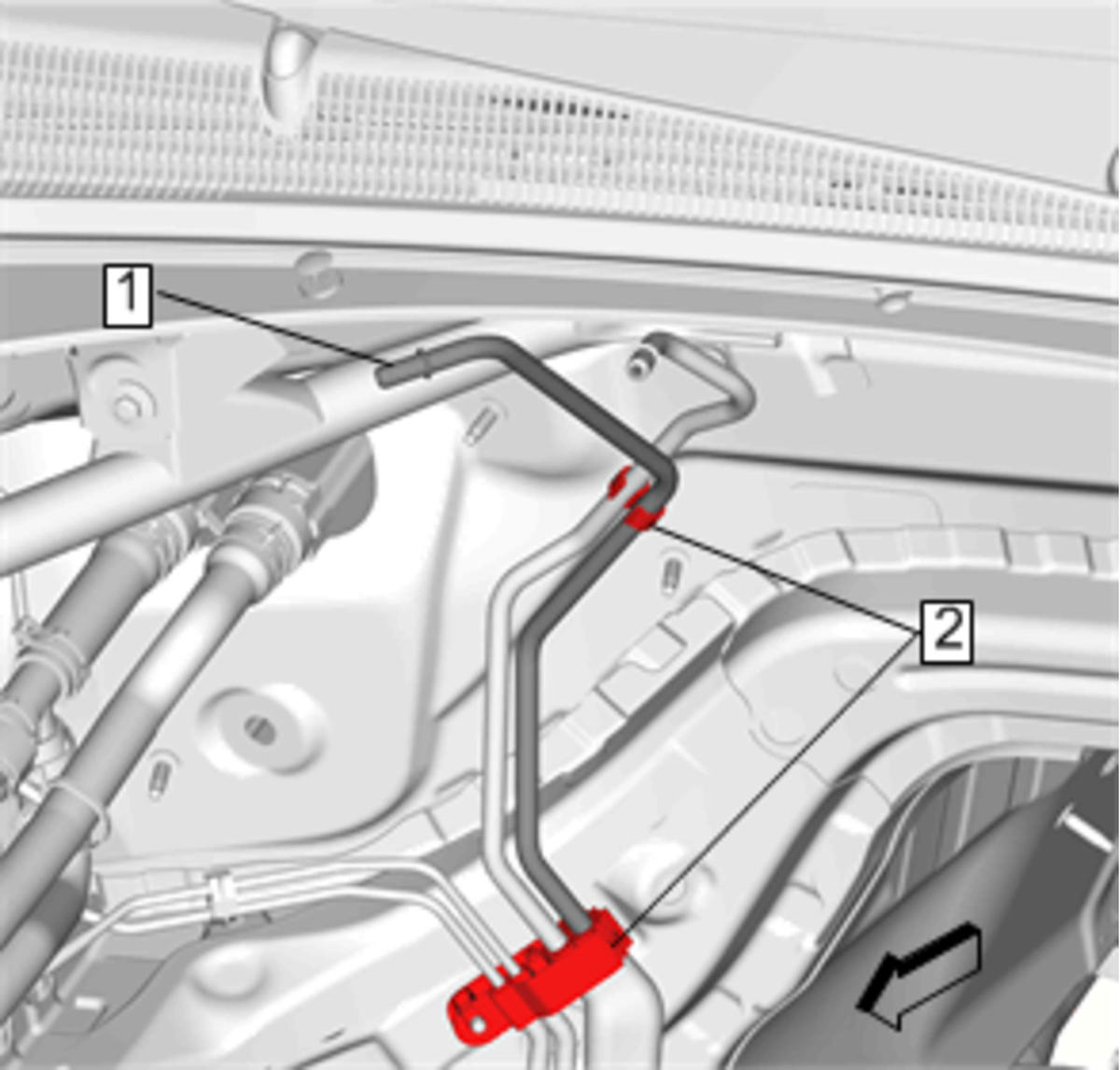

- Install the fuel feed pipe (1) to the retainers (2).
- Install the fuel feed front hose. Refer to Fuel Feed Front Hose Replacement
