Fuel Pump Cover Replacement

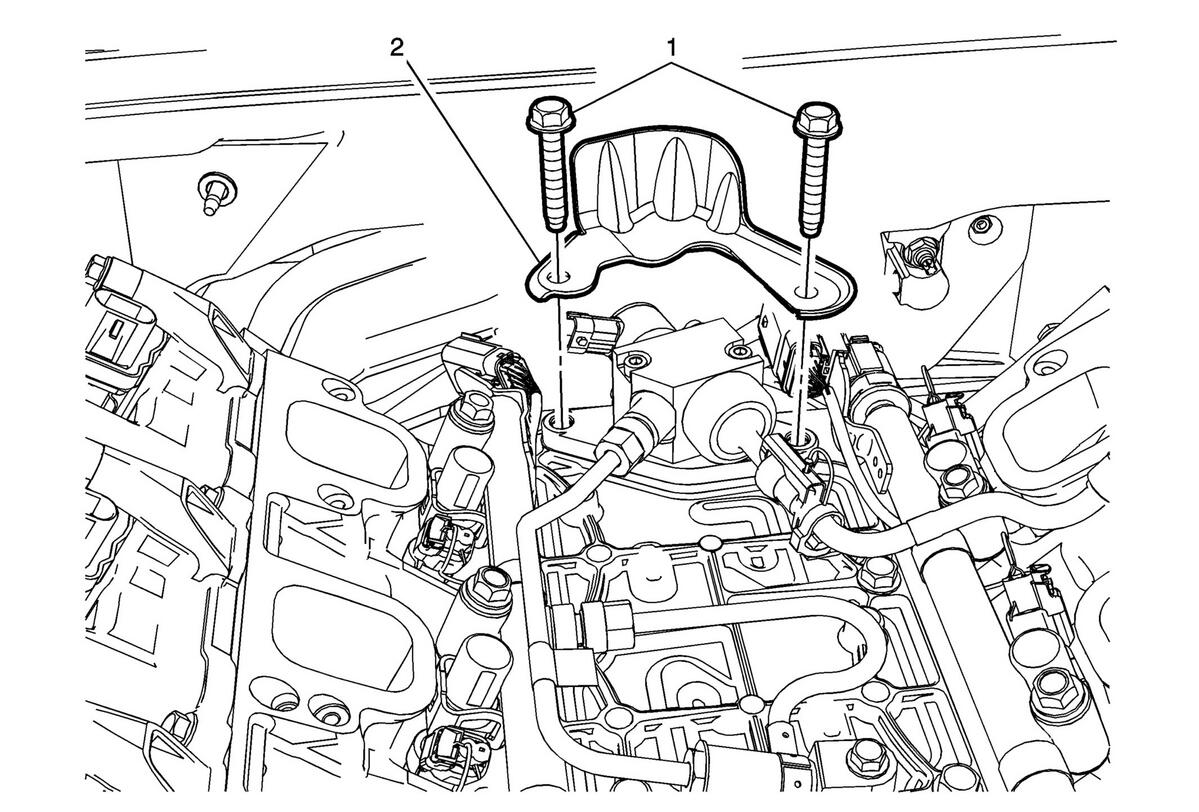

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the fuel pump insulator. Refer to Fuel Pump Insulator Replacement . |
|
| 1 | Fuel Pump Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 25 N.m (18 lb ft) |
| 2 | Fuel Pump Cover Procedure Slide the fuel pump cover rearward to remove it from the fuel pump.
NOTE:
A new fuel pump gasket and fuel feed intermediate pipe position 2 should be installed if the fuel pump is removed from the engine.
|
