Rear Vision Camera Description and Operation: Notes

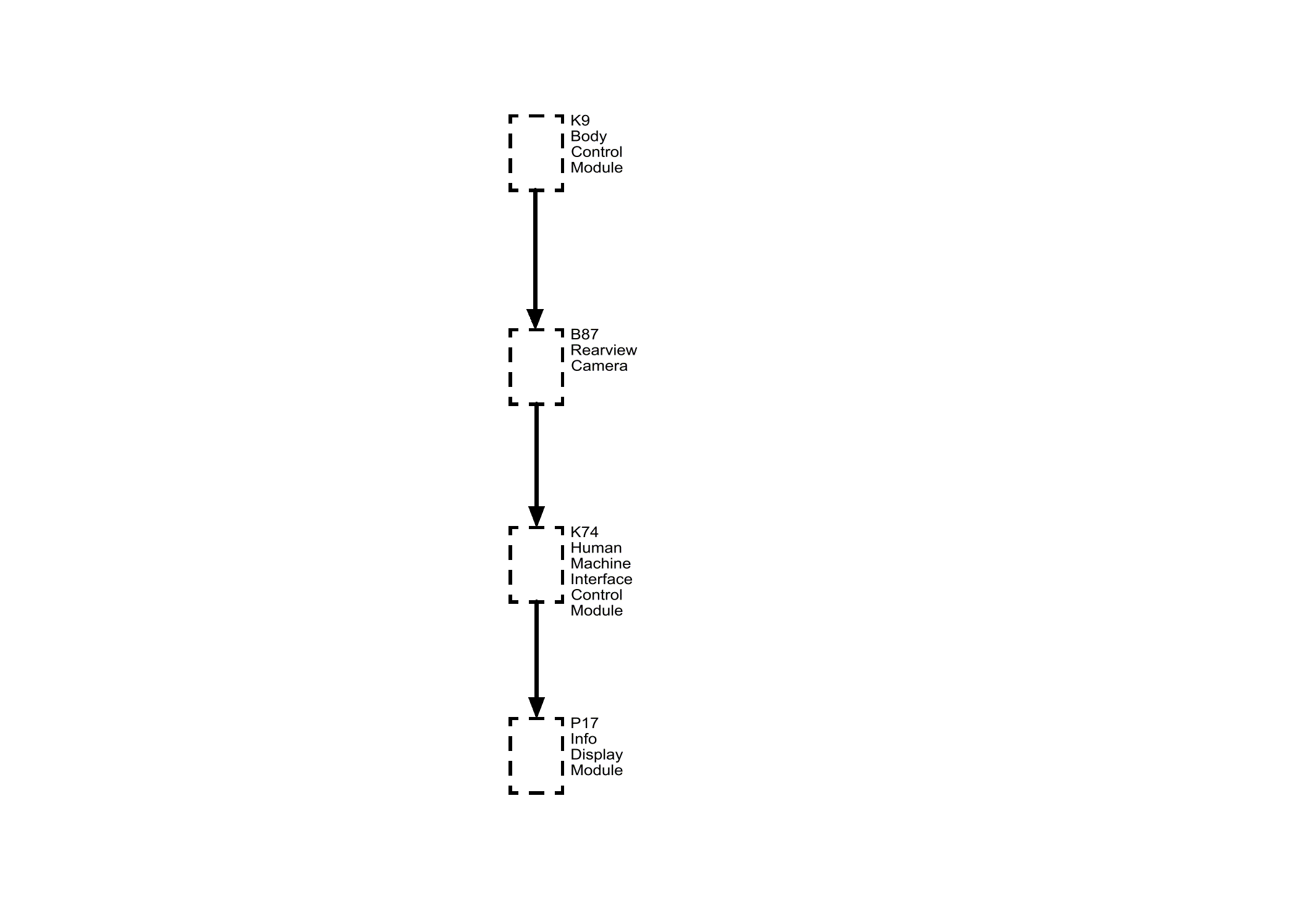

Fig 1: Rear Vision Camera Description and Operation

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
K9	K9 Body Control Module
B87	B87 Rearview Camera
K74	Human Machine Interface Control Module
P17	P17 Info Display Module
