Installation Procedure

  1. Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.
    2. Fig 1: EBCM And BPMV
    GM3607034Courtesy of GENERAL MOTORS COMPANY
  2. Install the EBCM (1) and seal (2) to the BPMV.

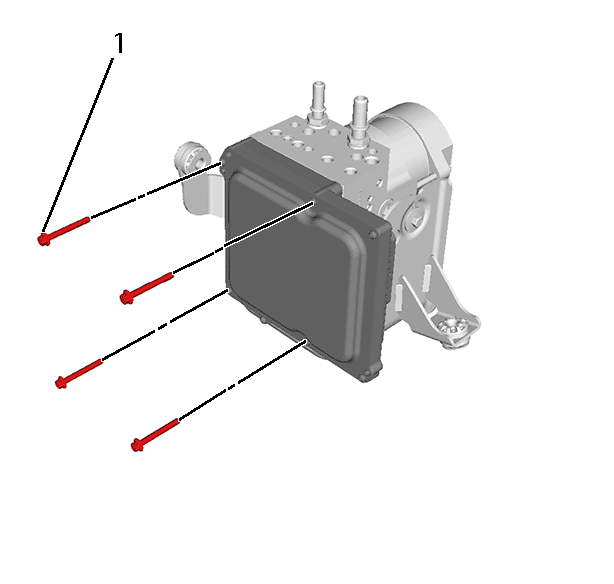

    3. Fig 2: EBCM Bolts
    GM3607031Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the 4 EBCM bolts (1) and tighten to 3 N.m (27 lb in).
  4. Carefully move the front brake pipes and install the BPMV and bracket assembly.

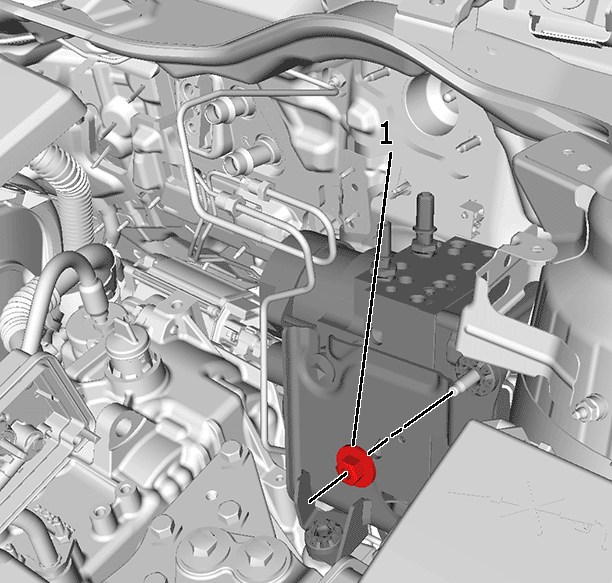

    5. Fig 3: BPMV Bracket Nut
    GM3598625Courtesy of GENERAL MOTORS COMPANY
  5. Install the BPMV bracket nut (1) and tighten to 22 N.m (16 lb ft).

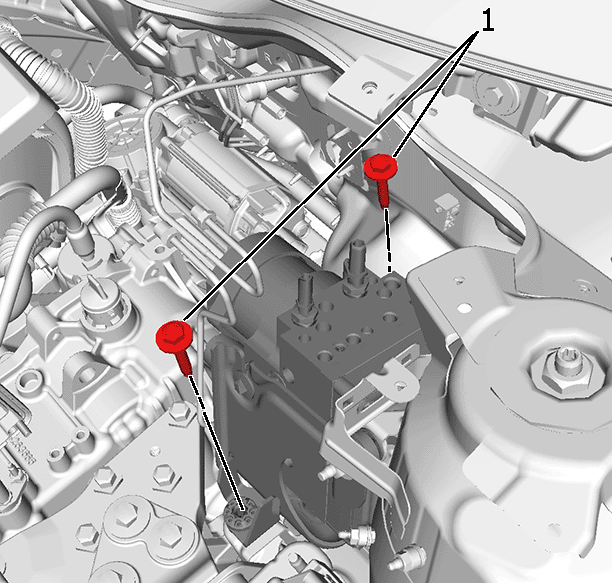

    6. Fig 4: BPMV Bracket Bolt
    GM3598624Courtesy of GENERAL MOTORS COMPANY
  6. Install the BPMV bracket bolts (1) and tighten to 22 N.m (16 lb ft).
  7. Install the brake master cylinder. Refer to Master Cylinder Replacement .

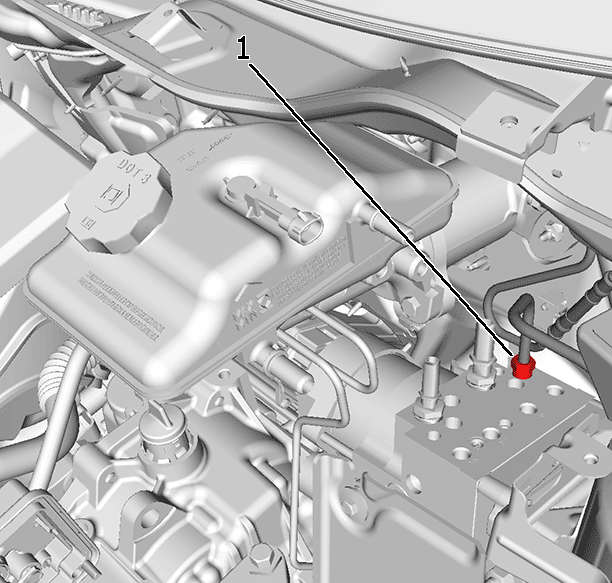

    8. Fig 5: Master Cylinder Primary Brake Pipe Fitting
    GM3600472Courtesy of GENERAL MOTORS COMPANY
  8. Install the master cylinder primary brake pipe fitting (1) and tighten to 23 N.m (17 lb ft).

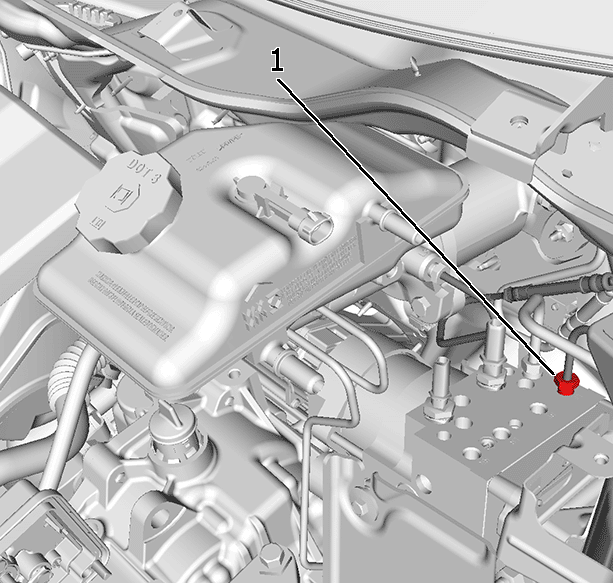

    9. Fig 6: Master Cylinder Right Front Secondary Brake Pipe Fitting
    GM3600471Courtesy of GENERAL MOTORS COMPANY
  9. Install the master cylinder right front secondary brake pipe fitting (1) and tighten to 23 N.m (17 lb ft).

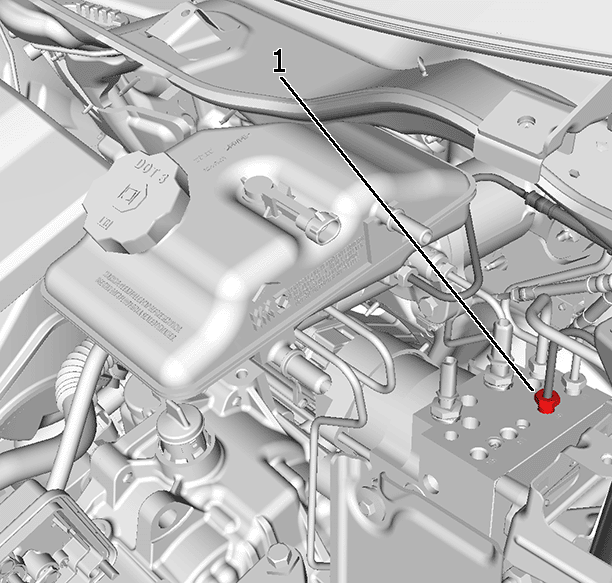

    10. Fig 7: Left Front Secondary Brake Pipe Fitting
    GM3598623Courtesy of GENERAL MOTORS COMPANY
  10. Install the left front secondary brake pipe fitting (1) and tighten to 23 N.m (17 lb ft).

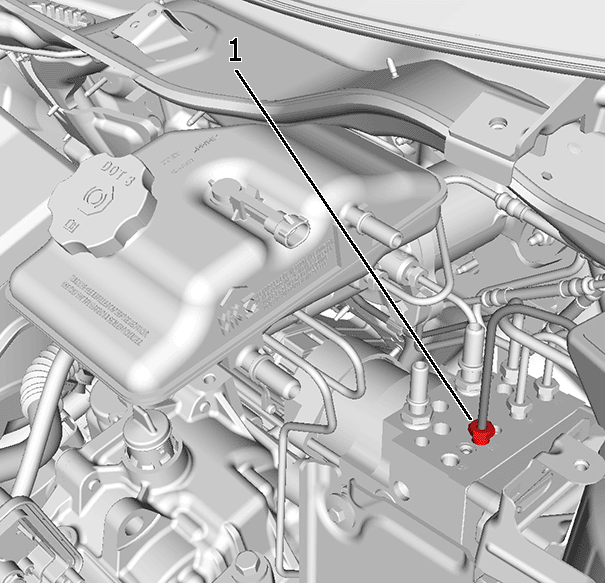

    11. Fig 8: Left Rear Brake Pipe Fitting
    GM3598622Courtesy of GENERAL MOTORS COMPANY
  11. Install the left rear brake pipe fitting (1) and tighten to 23 N.m (17 lb ft).

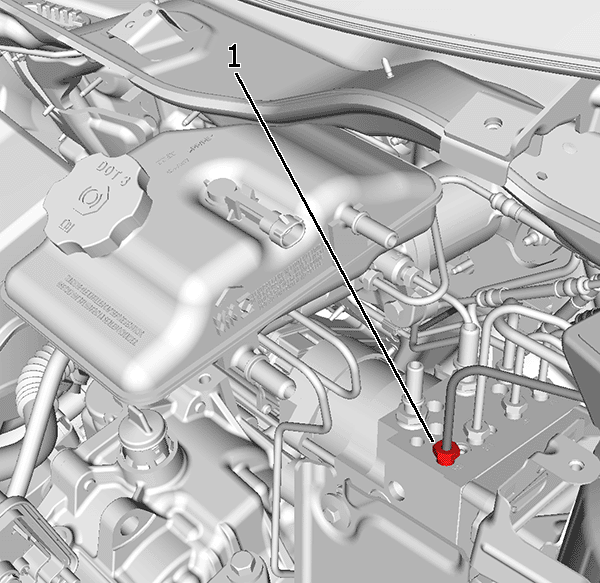

    12. Fig 9: Right Rear Brake Pipe Fitting
    GM3598621Courtesy of GENERAL MOTORS COMPANY
  12. Install the right rear brake pipe fitting (1) and tighten to 23 N.m (17 lb ft).

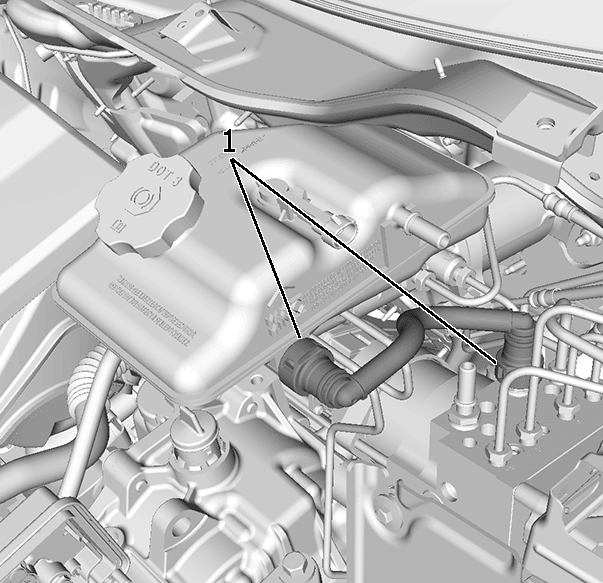

    13. Fig 10: Master Cylinder Reservoir Feed Hose Quick Connects
    GM3598620Courtesy of GENERAL MOTORS COMPANY
  13. Install the master cylinder reservoir feed hose and secure the quick connects (1).
  14. Ensure the feed hose quick connects are fully engaged by attempting to pull the feed hose from the fittings.

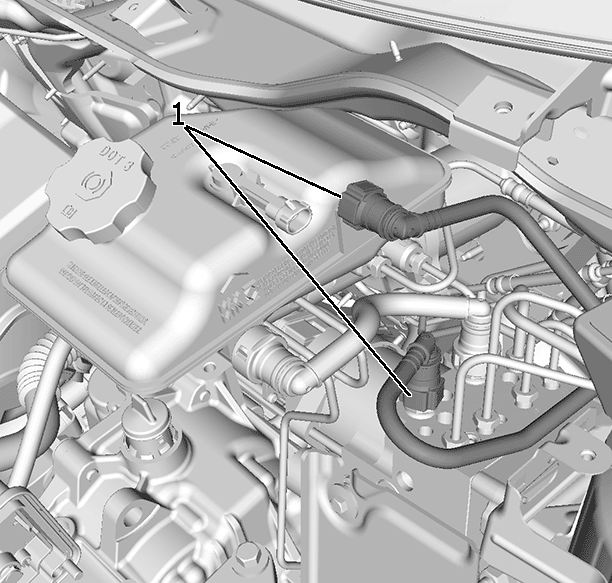

    15. Fig 11: Master Cylinder Reservoir Return Hose Quick Connects
    GM3598619Courtesy of GENERAL MOTORS COMPANY
  15. Install the master cylinder reservoir return hose and secure the quick connects (1).
  16. Ensure the return hose quick connects are fully engaged by attempting to pull the return hose from the fittings.

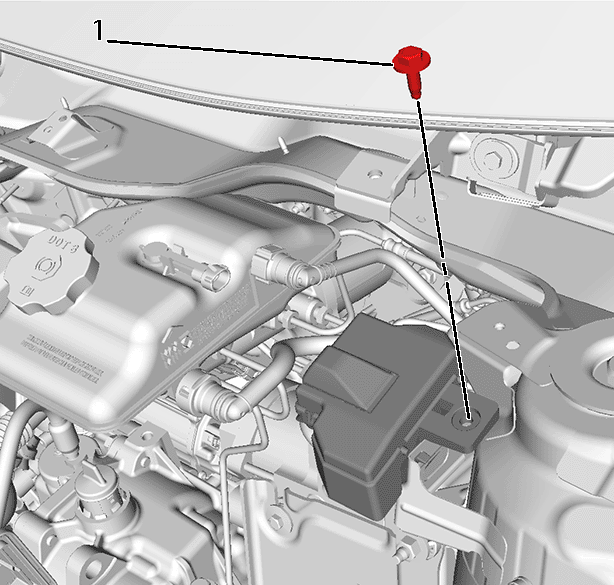

    17. Fig 12: Electronic Brake Control Module
    GM3604517Courtesy of GENERAL MOTORS COMPANY
  17. Install the engine wiring harness junction block and bolt (1) and tighten the bolt to 9 N.m (80 lb in).
  18. Install the drive motor generator power inverter module. Refer to Drive Motor Power Inverter Module Replacement .
  19. Connect the EBCM electrical connector.
  20. Install the front suspension strut housing brace. Refer to Front Suspension Strut Housing Brace Replacement .
  21. If installing a new EBCM, the EBCM must be programmed. Refer to Electronic Brake Control Module Programming and Setup .
  22. Perform the Antilock Brake System Automated Bleed . Follow the procedure completely to ensure the sensor and boost valve calibration and EBCM learn processes have been completed.
