Installation Procedure

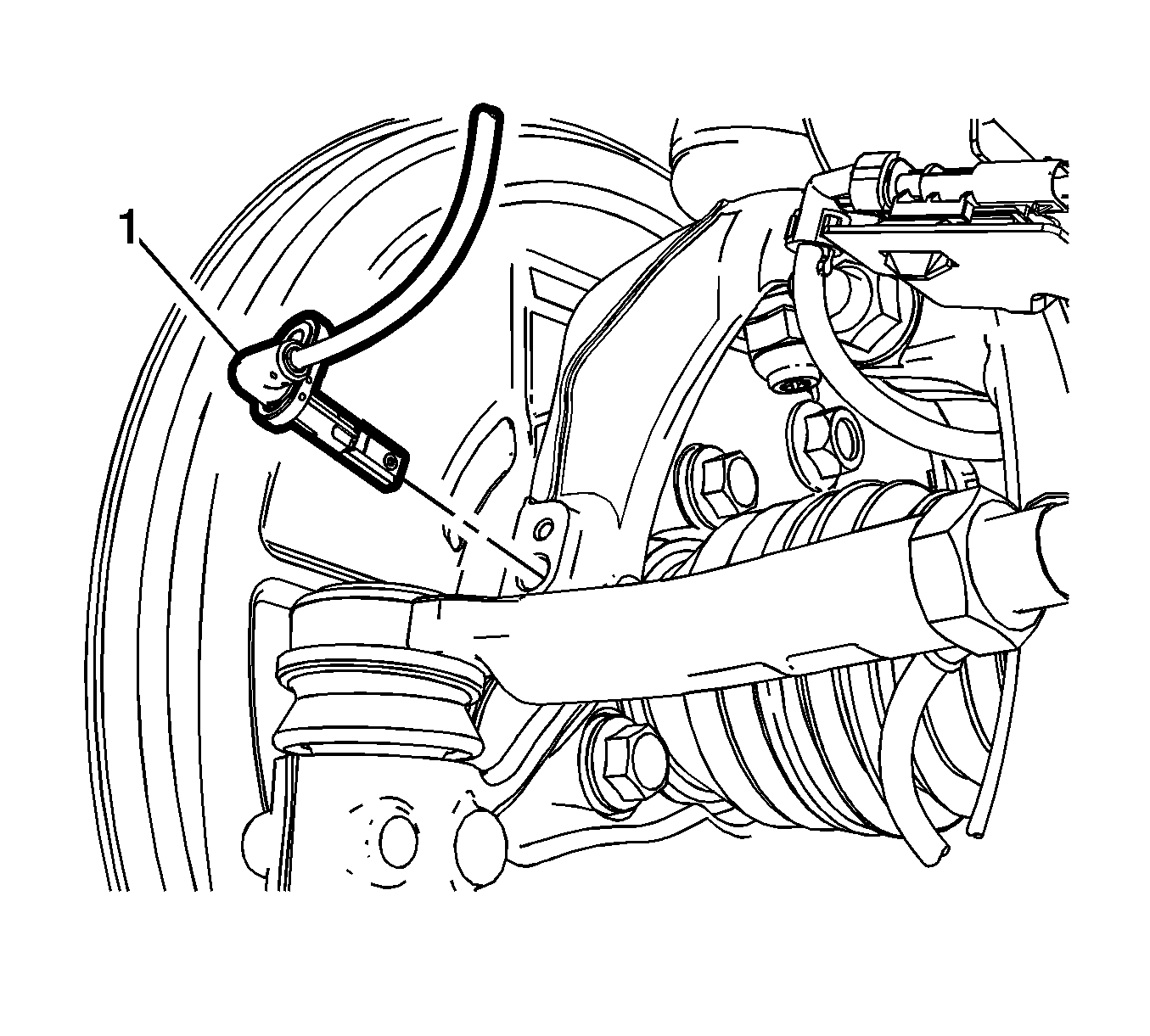

    Fig 1: Wheel Speed Sensor
    GM2740071Courtesy of GENERAL MOTORS COMPANY
  1. Install the wheel speed sensor (1) to the steering knuckle.

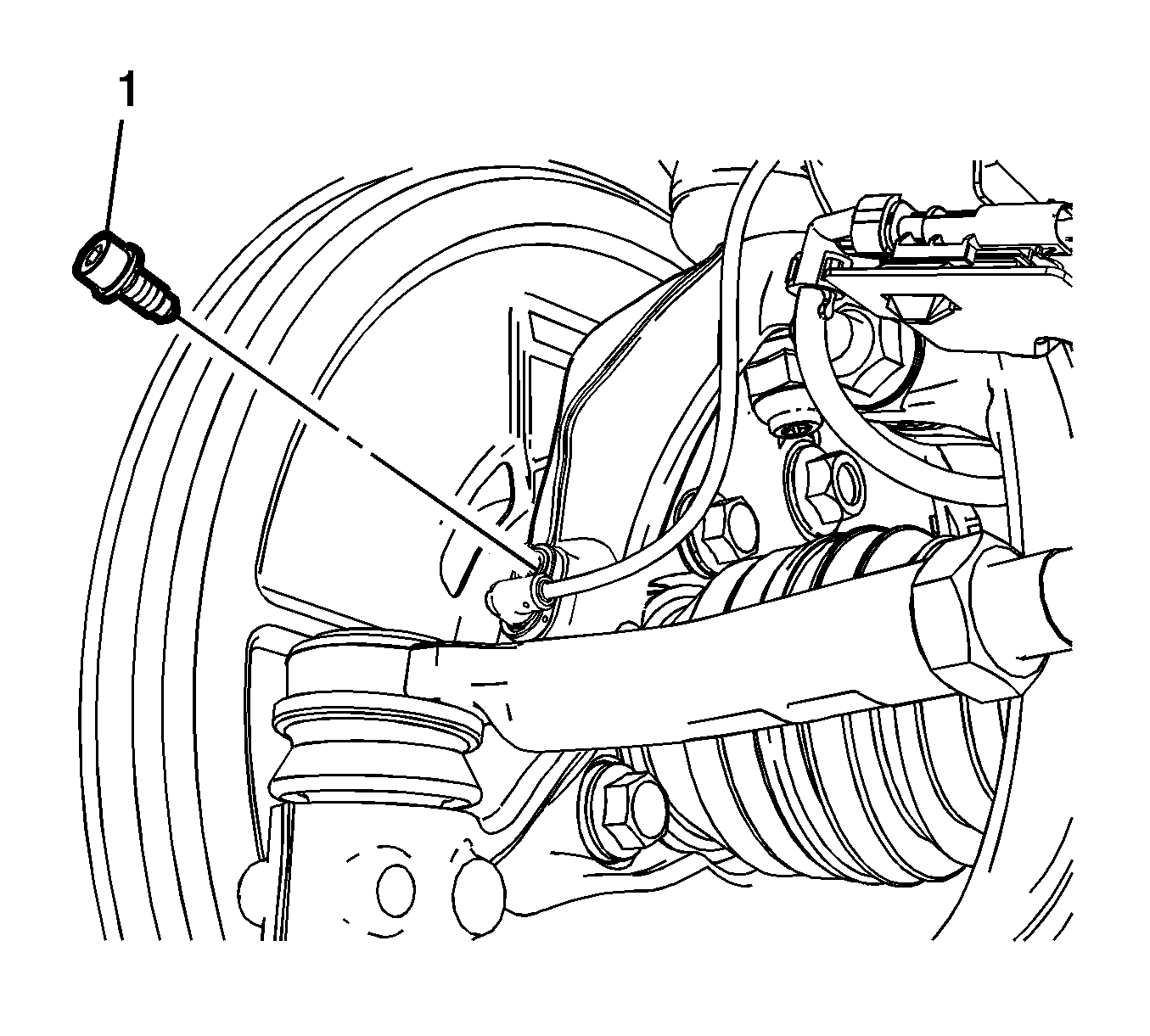

    2. Fig 2: Wheel Speed Sensor Bolt
    GM2740069Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

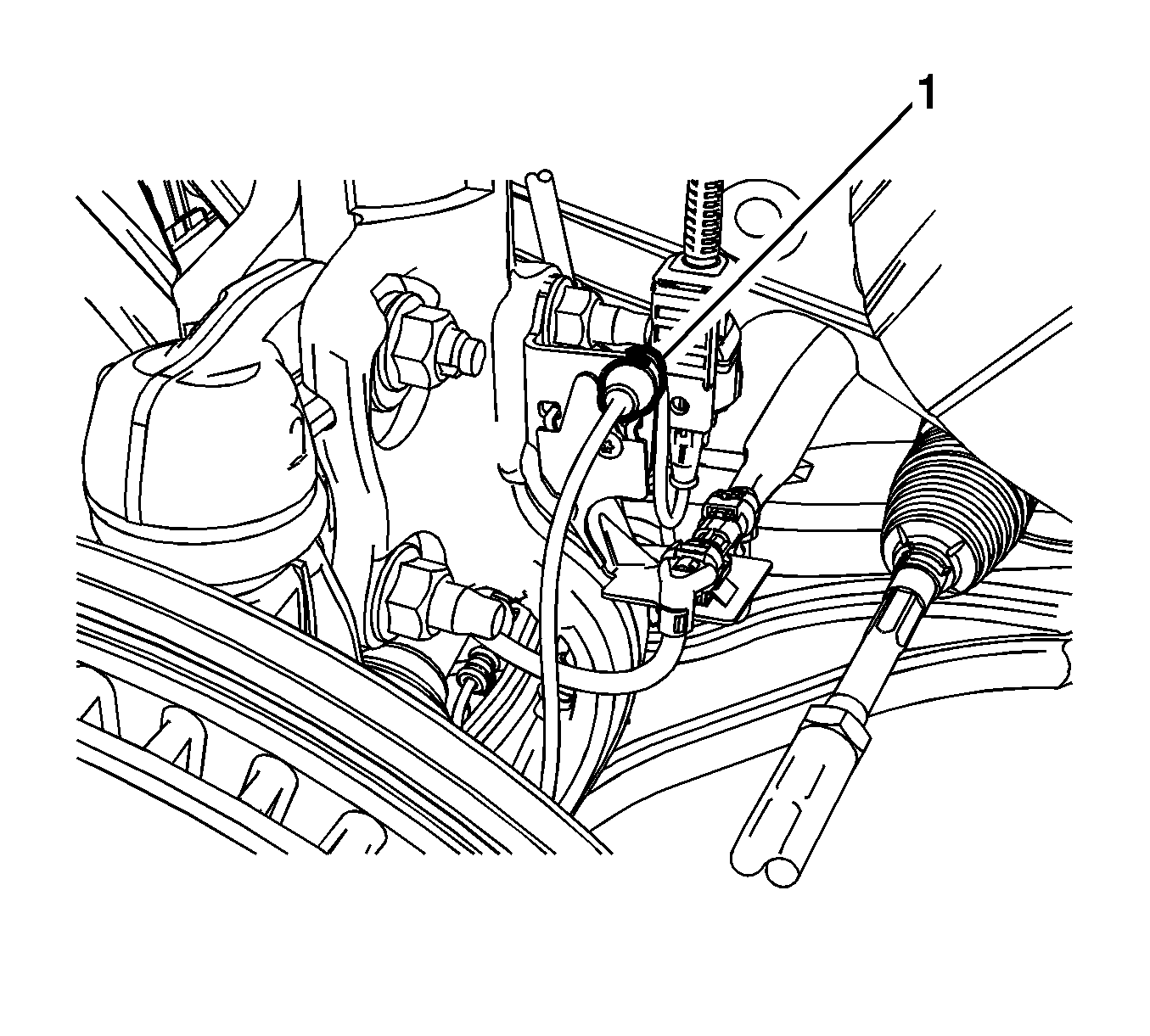

    3. Fig 3: Wheel Speed Sensor Harness Grommet
    GM2851324Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness grommet (1) to the strut bracket.

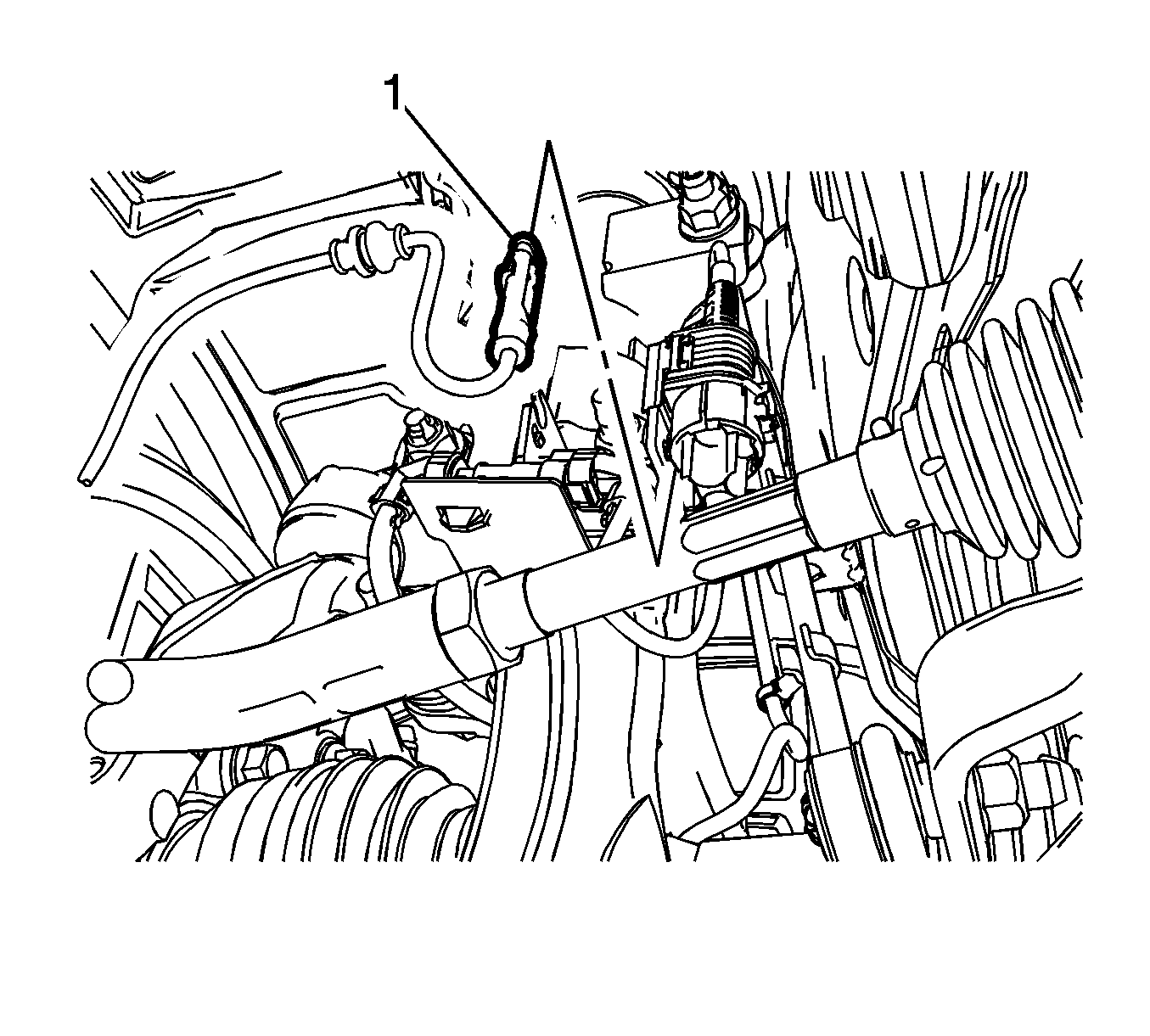

    4. Fig 4: Wheel Speed Sensor Electrical Connector
    GM2851348Courtesy of GENERAL MOTORS COMPANY
  4. Lock and connect the wheel speed sensor electrical connector (1).
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Perform the Diagnostic System Check - Vehicle .
