Vehicle Stability Control System Switch Replacement

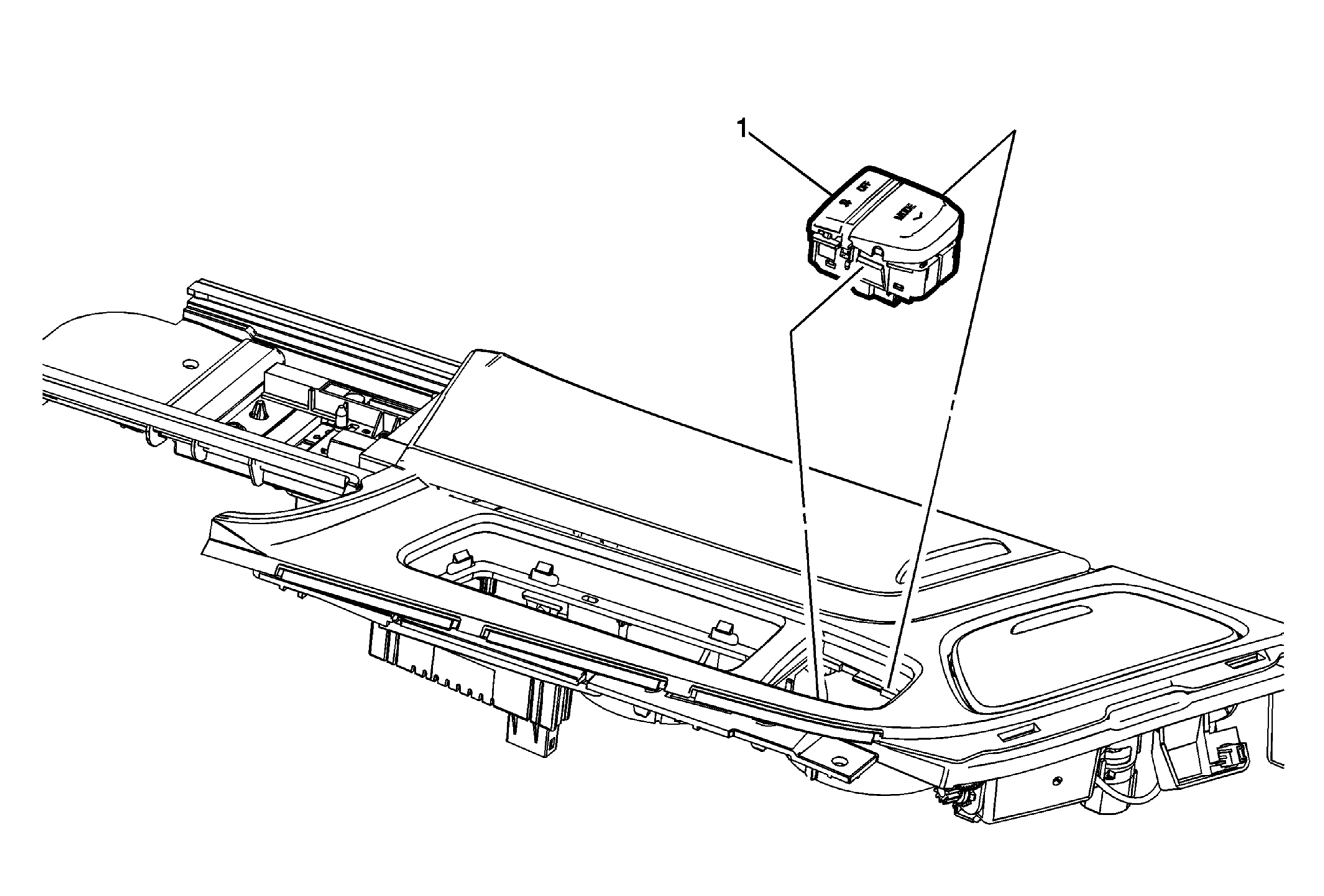

Fig 1: Vehicle Stability Control System Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console cup holder trim plate. Refer to Front Floor Console Cup Holder Trim Plate Replacement .
1	Vehicle Stability Control System Switch Procedure  Using the appropriate tool, gently depress the tabs on the switch to remove.
