Fuel Tank Upper Shield Replacement

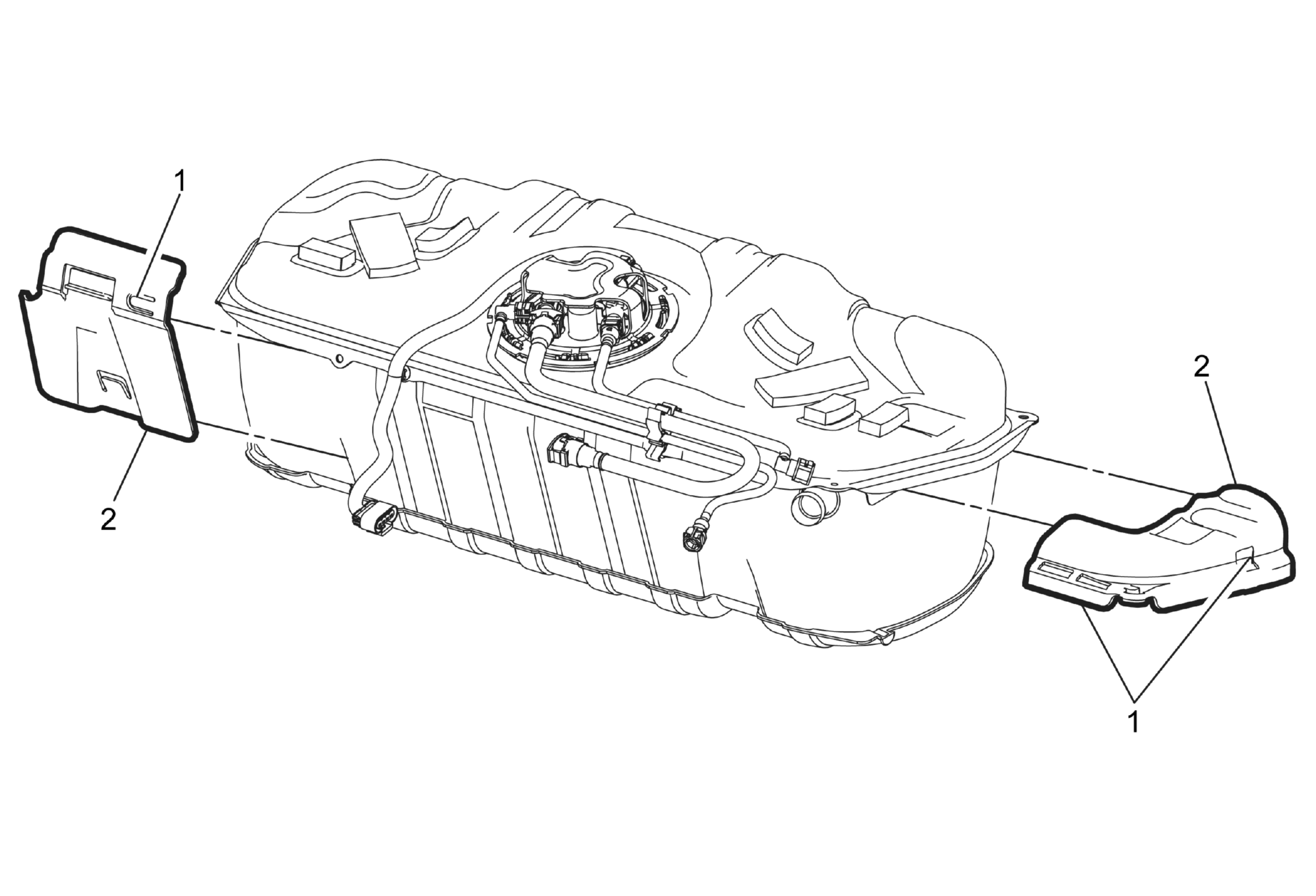

Fig 1: Fuel Tank Upper Shield
GM3648155Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Upper Shield Tabs (Qty: 3)
2 Fuel Tank Upper Shield (Qty: 2)
