Intake Air Baffle Replacement

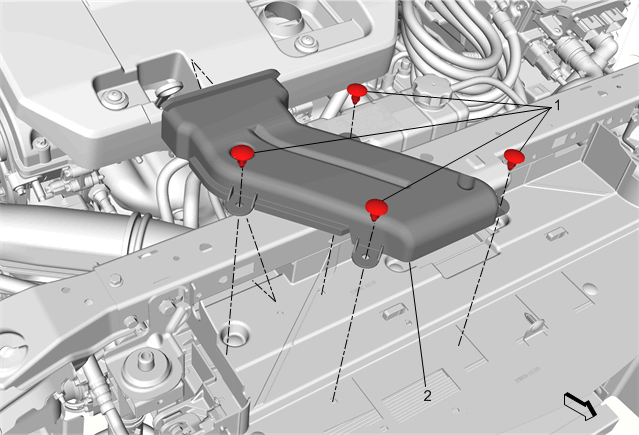

Fig 1: Intake Air Baffle
GM3747167Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement .
1 Intake Air Baffle Retainers (Qty: 4)
2 Intake Air Baffle
