Object Detection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Sideview Camera (CV5)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Sideview Camera (CV5)

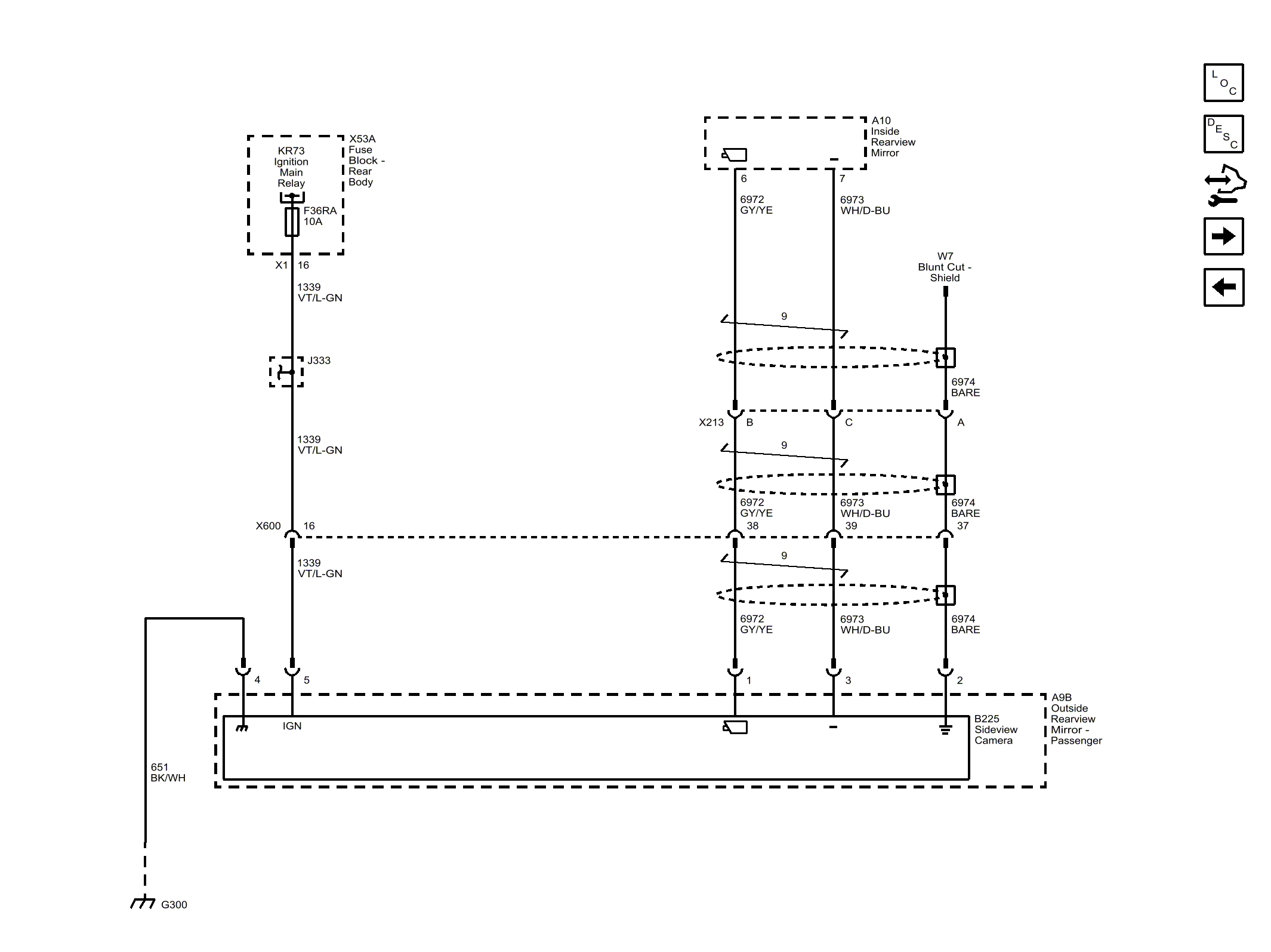

Fig 1: Sideview Camera (CV5)
Courtesy of GENERAL MOTORS COMPANY
