Fuse Block Replacement

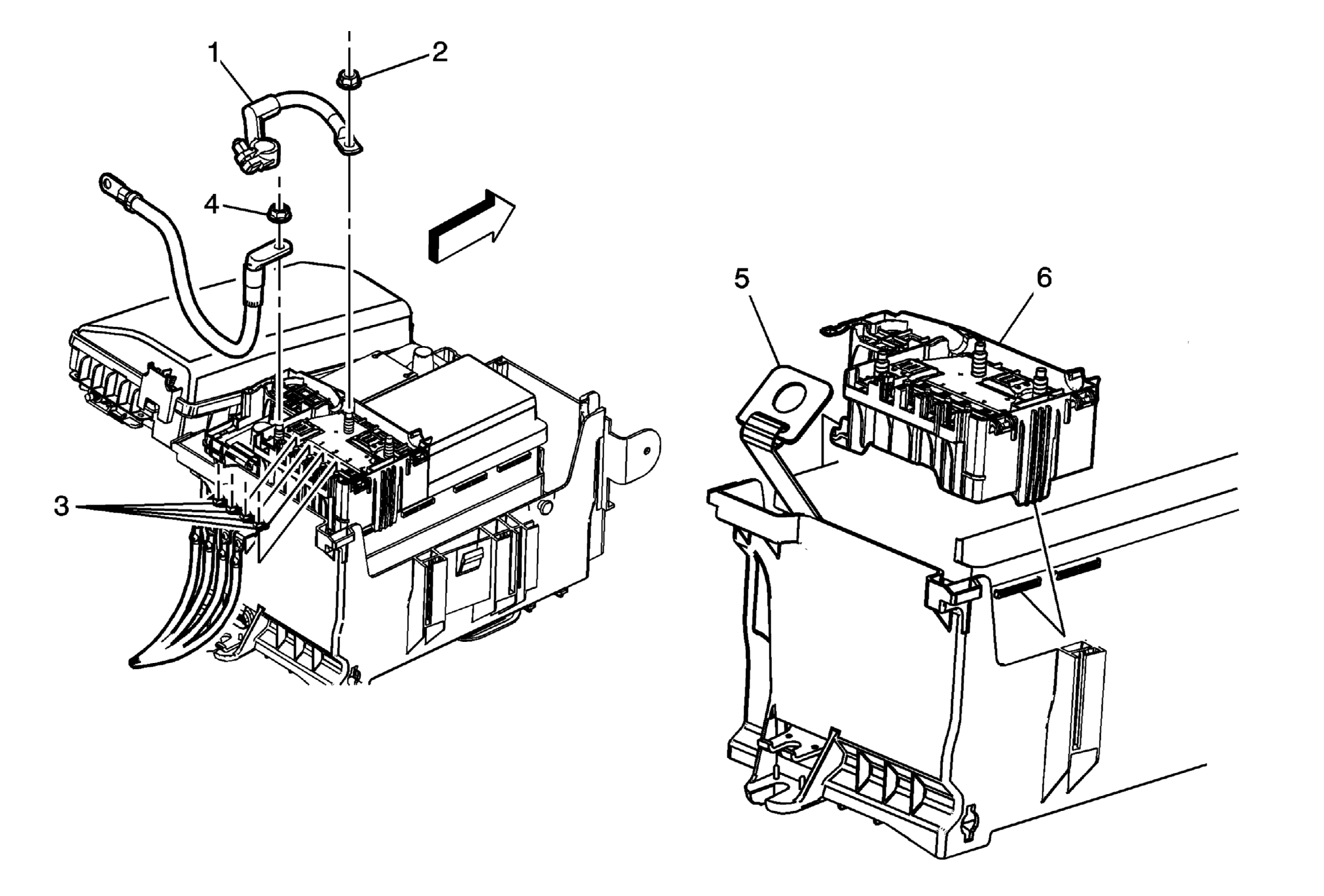

Fig 1: Fuse Block & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the battery cover. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the battery positive fuse block cable. Refer to Battery Positive Fuse Block Cable Replacement .
1	Battery Positive Fuse Block Cable
2	Battery Positive Fuse Block Nut CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)
3	Body Harness Terminal Nut (Qty: 4) Tighten 4.7 N.m (42 lb in)
4	Fuse Block Nut Tighten 15 N.m (11 lb ft)
5	Battery Hold Down Retainer
6	Fuse Block
