Front View Driver Information Camera Replacement

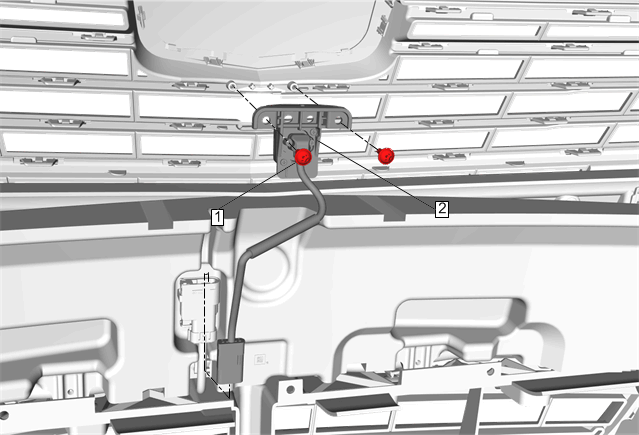

Fig 1: Front View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove front compartment insulator. Refer to Front Compartment Insulator Replacement
1	Front Grille Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten .25 N.m (.18 lb in)
2	Front View Driver Information Camera Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove front compartment insulator. Refer to Front Compartment Insulator Replacement

Front Grille Bolt (Qty: 2)

CAUTION:

Tighten
.25 N.m (.18 lb in)

Front View Driver Information Camera

Procedure
