Fuel Tank Protector Replacement (AWD)

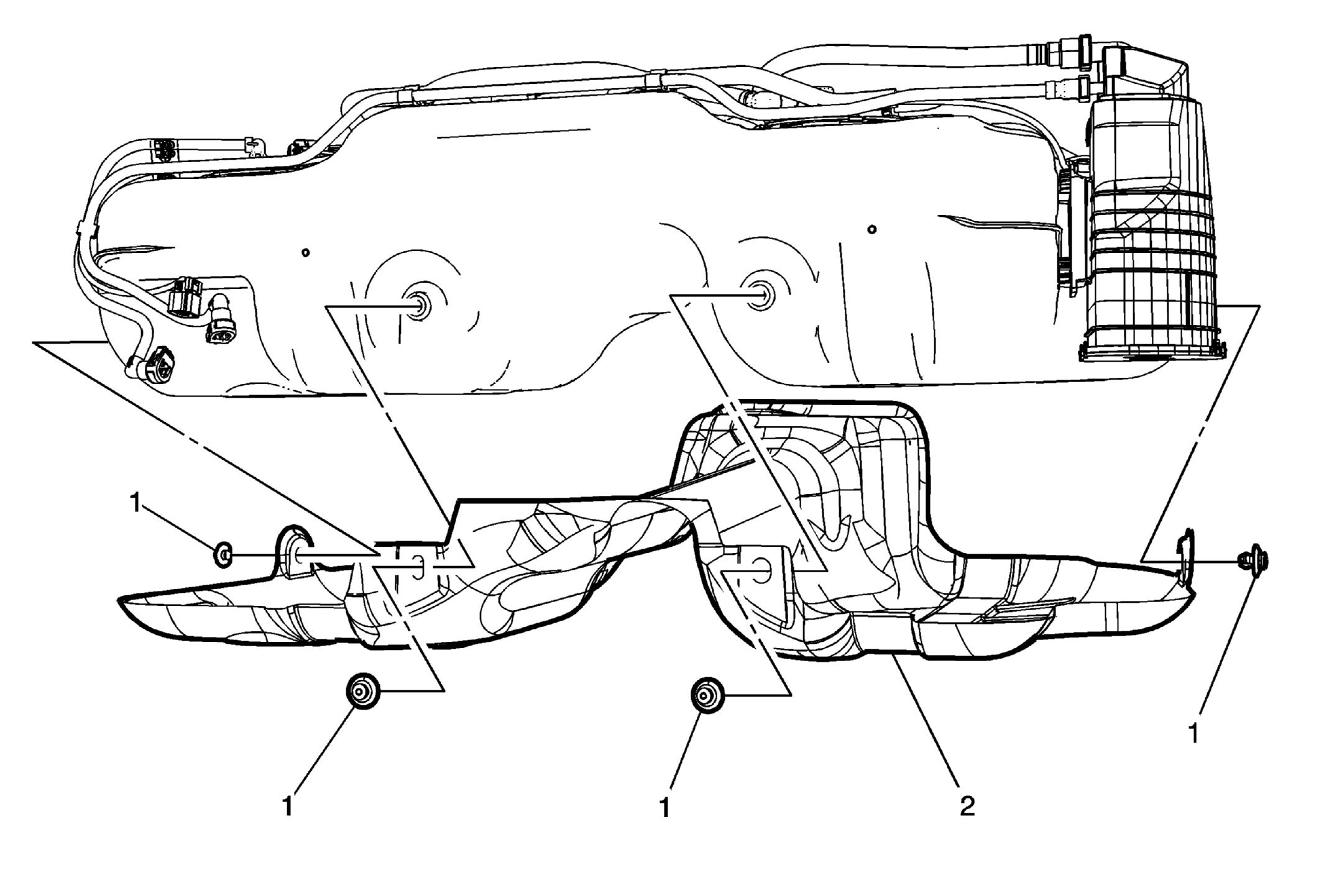

Fig 1: Fuel Tank Protector & Retainers (AWD)
GM2754751Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
1 Fuel Tank Protector Retainers (Qty: 4)
2 Fuel Tank Protector
