Vacuum Pump Replacement

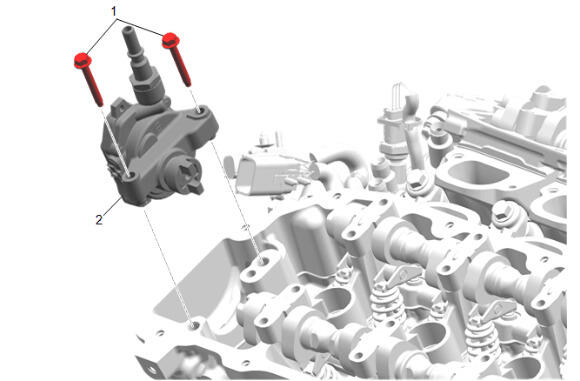

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove right side camshaft cover. Refer to Camshaft Cover Replacement - Right Side (LFX)Camshaft Cover Replacement - Right Side (LF3) |
|
| 1 | Vacuum Pump Bolt
CAUTION:
Refer to Fastener Caution . Tighten: 10 N.m (89 lb in) |
| 2 | Vacuum Pump
NOTE:
Ensure the vacuum pump coupling and slot in the drive shaft are in a vertical position to remove the pump. |
