Audio/Video Receptacle Replacement

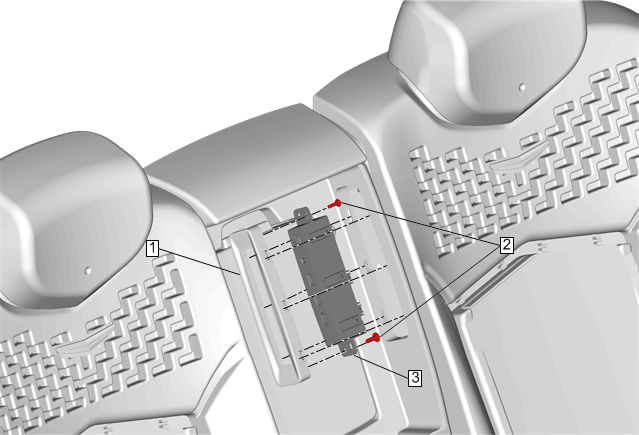

Fig 1: Audio/Video Receptacle
GM4256481Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Back Cushion Removal and Installation
1 Bezel

Procedure

  1. Disconnect the electrical connectors.
  2. Release the [6x] retaining tabs.
2 Audio/Video Receptacle Bolt [2x]
CAUTION: Refer to Fastener Caution .

Tighten
1 N.m (9 lb in)
3 Audio/Video Receptacle
