High Frequency Antenna Replacement

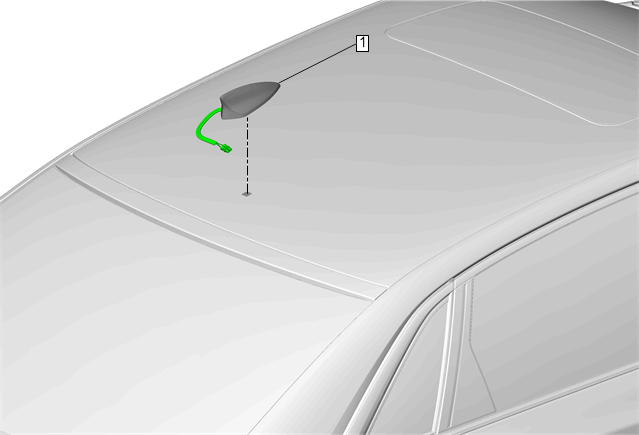

Fig 1: High Frequency Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Without C3U) and/or Headlining Trim Panel Replacement (With C3U)
1	High Frequency Antenna CAUTION: Refer to Fastener Caution . Procedure Loosen the integral nut. Disconnect the electrical connectors. Disconnect the antenna cables. Feed the wiring and cable up through the hole in the roof panel. Tighten 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only do those steps in headliner replacement that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Without C3U) and/or Headlining Trim Panel Replacement (With C3U)

High Frequency Antenna

CAUTION: Refer to Fastener Caution .

Procedure

Tighten
9 N.m (80 lb in)
